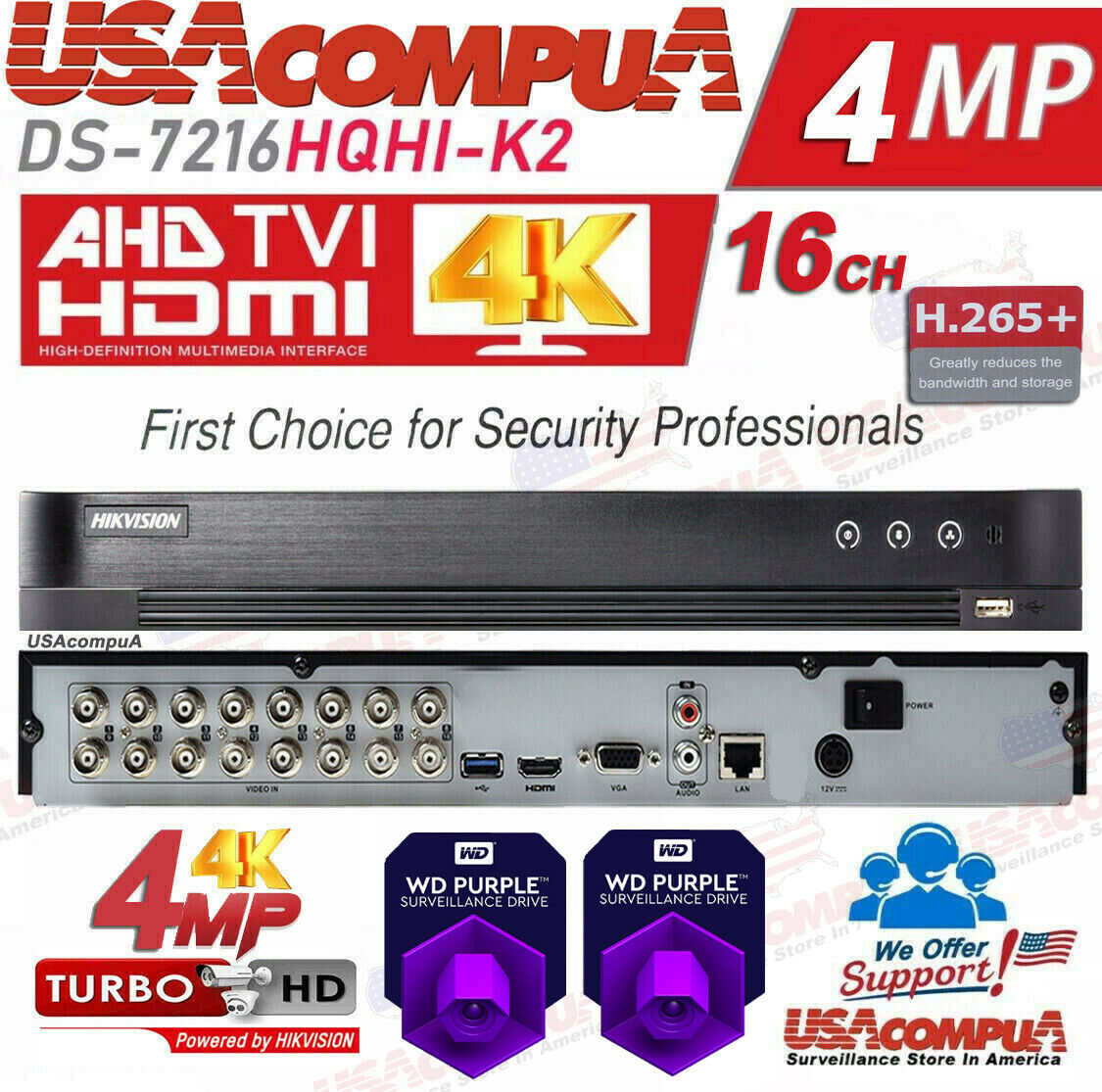

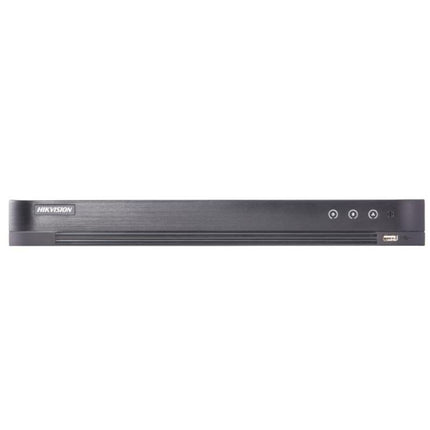

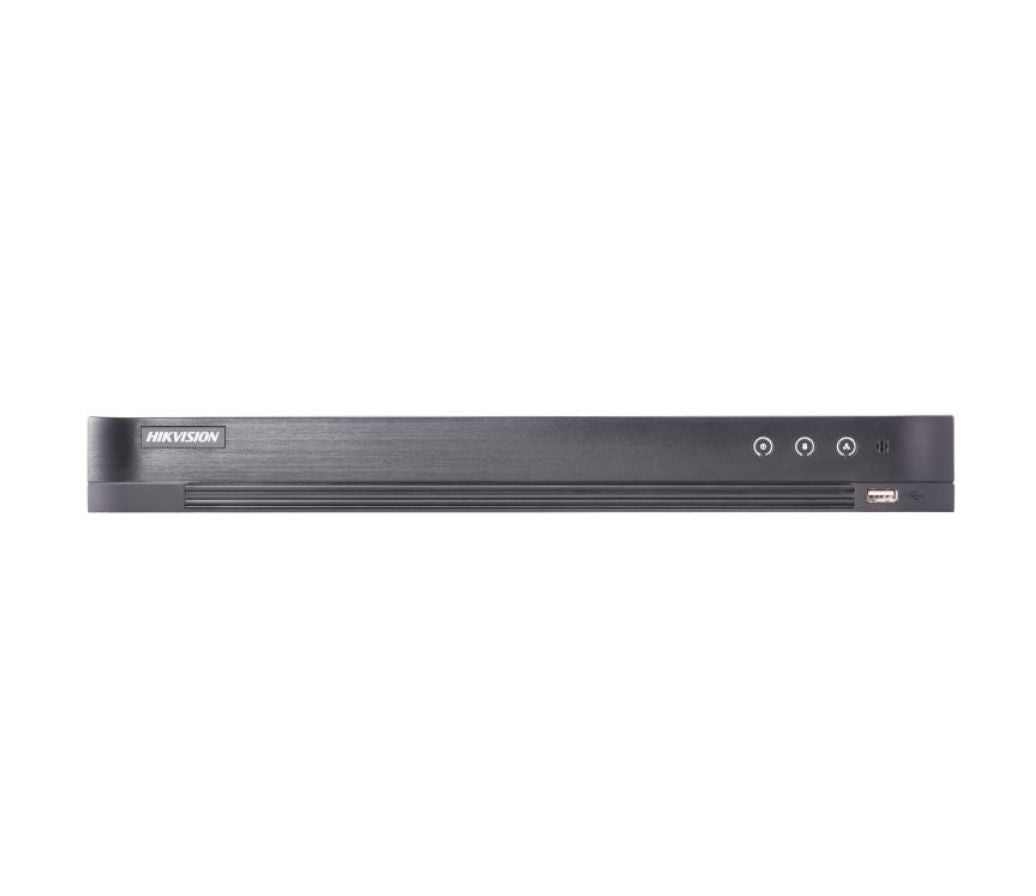

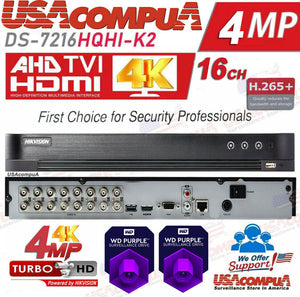

Hikvision DS-72xxHQHI-Kx Series TurboHD DVR
What would it mean for your surveillance system if you could improve recording efficiency without immediately replacing your existing coax infrastructure? The Hikvision DS-72xxHQHI-Kx Series combines flexible analog and IP camera support with H.265+ compression, long-distance HD-TVI transmission, and remote connectivity.
With 4-, 8-, and 16-channel models available, you can choose a recorder that fits the size of your property instead of paying for a configuration you do not need. The result is a practical foundation for clearer oversight, easier playback, and more efficient video storage.
Why Buyers Choose This Series
- Multiple channel options make it easier to match the recorder to a small, medium, or larger surveillance system.
- Support for several analog video formats helps buyers work with a wider range of compatible camera signals.
- H.265+ compression improves recording efficiency and helps reduce video-storage requirements.
- Hybrid analog and IP camera support gives the system room to adapt as surveillance needs change.
- Hik-Connect support makes remote access available through a supported network configuration.
- Advanced event analytics help users focus attention on activity that may require review.
Features That Deliver Practical Benefits
H.265+ Compression — Use Storage More Efficiently
H.265+ encoding improves recording efficiency and reduces data-storage costs. This helps you get more practical value from the recorder's available hard-drive capacity.
4-, 8-, and 16-Channel Options — Choose the Right System Size
Select the DS-7204HQHI-K1 for 4 analog channels, the DS-7208HQHI-K2 for 8, or the DS-7216HQHI-K2 for 16. You get a configuration that more closely matches the number of areas you need to monitor.
Multi-Signal Support — Gain Greater Installation Flexibility
Support for HD-TVI, AHD, HD-CVI, and NTSC CVBS signals gives you more flexibility when selecting supported cameras or working with an existing analog surveillance installation.
Analog and IP Camera Support — Build a More Adaptable System
The series accepts analog video while also supporting IP cameras at resolutions up to 6 MP. This gives you a path to combine supported camera technologies within one recording platform.
Enhanced IP Mode — Expand IP Capacity When Needed
When all analog channels are disabled, Enhanced IP Mode supports up to 6 IP channels on the 4-channel model, 12 on the 8-channel model, or 24 on the 16-channel model. This allows the recorder to serve an IP-focused installation when properly configured.
Long-Distance HD-TVI Transmission — Cover Larger Properties
Transmission distances reach up to 2,630 ft (800 m) at 1080p and 3,940 ft (1,200 m) at 720p over HD-TVI. This helps accommodate cameras positioned far from the recorder.

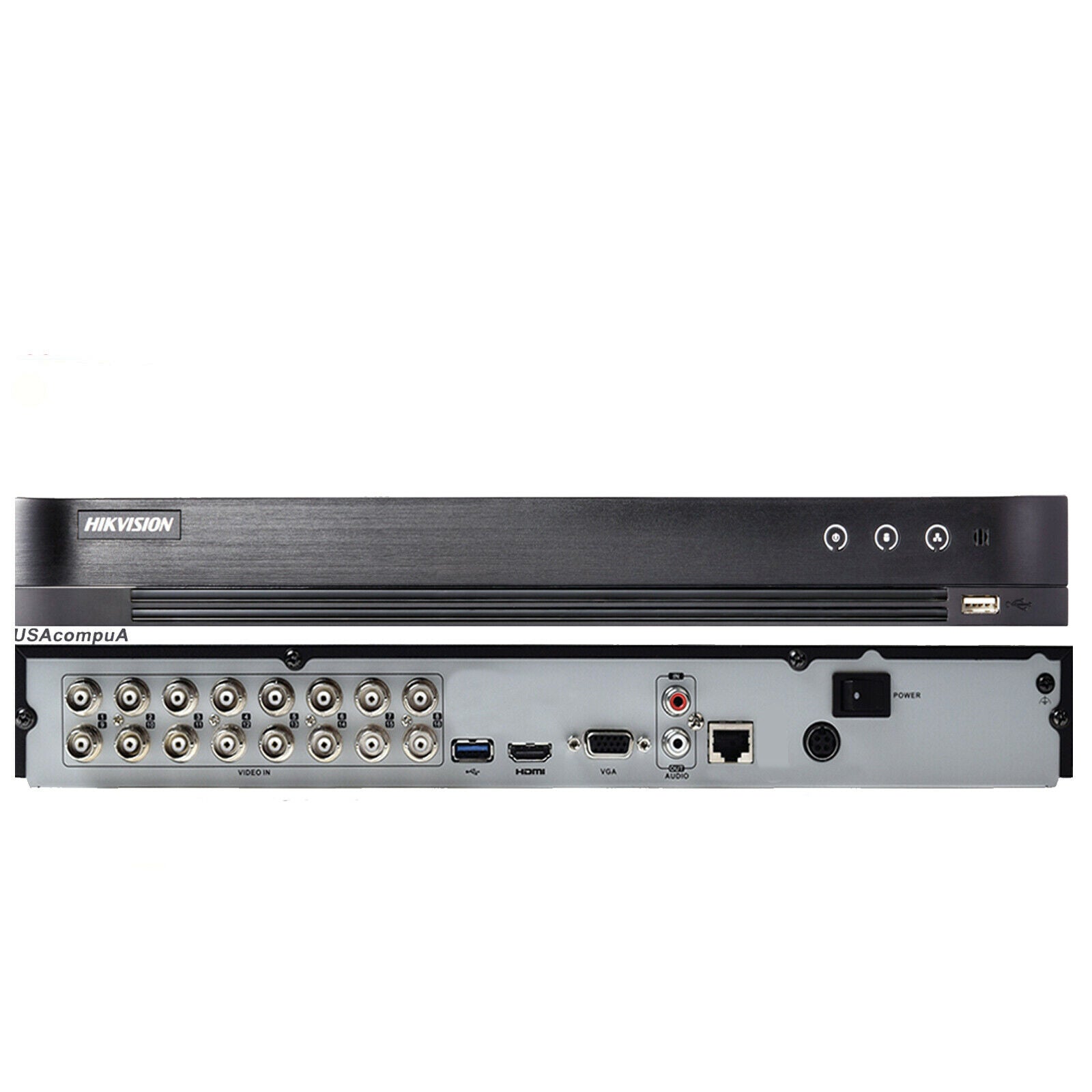

Local HDMI and VGA Outputs — Review Video on a Connected Monitor
HDMI and VGA connections provide local display options. The DS-7216HQHI-K2 supports HDMI output up to 4K at 3840 × 2160 and 30 Hz, giving compatible displays a higher-resolution viewing option.
Synchronous Playback — Review More Channels Together
Play back up to 4, 8, or 16 channels simultaneously, depending on the model. This makes it easier to compare activity across different camera views without reviewing every channel separately.
Advanced Analytics — Find Important Activity More Efficiently
Line-crossing, intrusion, and scene-change detection help bring relevant events to your attention. Instead of relying only on continuous manual observation, you gain additional tools for identifying activity.
Hik-Connect and Network Protocol Support — Enable Remote Connectivity
Hik-Connect, HTTPS, ONVIF, DDNS, and other documented network protocols give you multiple connectivity options. Depending on the model, the DVR supports up to 32, 64, or 128 remote connections.
Up to 10 TB per Hard Drive — Create Substantial Local Storage
Every SATA interface supports a hard drive with up to 10 TB of capacity. The DS-7208HQHI-K2 and DS-7216HQHI-K2 each provide two SATA interfaces, while the DS-7204HQHI-K1 provides one.
Audio and Two-Way Audio Support — Add More Context to Video
The recorder includes one RCA audio input, one RCA audio output, and one-channel two-way audio using the first audio input. A supported audio setup can provide information that video alone may not capture.
What This Helps You Avoid
A recorder that cannot accommodate your existing camera signals can turn a straightforward upgrade into a much larger project. Limited playback, inefficient compression, and insufficient storage capacity can also make daily system use more frustrating than it needs to be.
- Replacing supported coax infrastructure solely to obtain HD video transmission.
- Choosing a recorder with too few analog channels for the property.
- Using storage inefficiently when H.265+ compression is available.
- Reviewing camera channels one at a time when synchronous playback is supported.
- Being restricted to only one documented analog signal format.
- Losing the option to incorporate supported IP cameras into the recording system.
- Overlooking relevant activity that supported line-crossing, intrusion, or scene-change analytics may help identify.
A More Flexible Path Forward
If your current surveillance setup feels limited by channel count, storage efficiency, or camera compatibility, the DS-72xxHQHI-Kx Series provides a more adaptable recording foundation. You can choose the channel capacity that fits today while retaining documented options for supported IP cameras, larger storage configurations, remote connectivity, and advanced analytics.
The real question is not simply whether the recorder can capture video—it is whether it gives you the flexibility to manage and review that video in a way that better supports your property.
