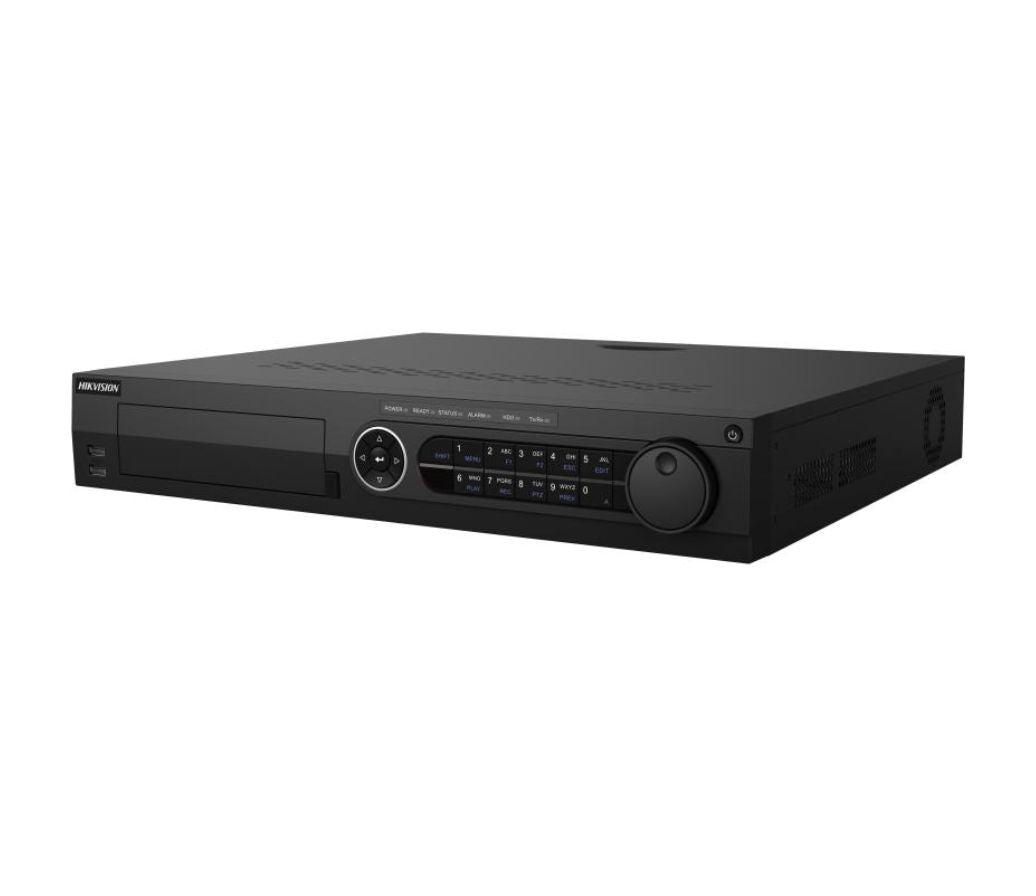

Hikvision DS-7324HQHI-K4 / DS-7332HQHI-K4 Turbo HD DVR
What happens when your property needs more camera coverage, but your current recorder can no longer keep up?
The Hikvision DS-7324HQHI-K4 and DS-7332HQHI-K4 give you the flexibility to manage compatible HDTVI, AHD, HDCVI, CVBS, and IP cameras through one powerful surveillance recorder.
With extensive channel capacity, efficient H.265 Pro+ compression, four hard-drive bays, smart video analytics, and remote connectivity, this series helps you build a security system that can grow with your property.
Instead of choosing between preserving your existing cameras and upgrading your coverage, you can create a practical hybrid system that supports both.
Why Buyers Choose This Model
```24 or 32 Analog Channels — Cover More Areas from One Recorder
Choose 24 analog inputs with the DS-7324HQHI-K4 or 32 with the DS-7332HQHI-K4. This gives larger businesses and properties the capacity to monitor more entrances, rooms, corridors, parking areas, and operational spaces without relying on several separate recorders.
Five Video Signal Types — Upgrade Without Replacing Everything
Support for HDTVI, AHD, HDCVI, CVBS, and IP video lets you combine multiple compatible camera technologies. You can preserve useful existing equipment while gradually adding newer cameras where improved coverage is needed.
Up to 40 or 48 IP Cameras — Room for Future Expansion
The DS-7324HQHI-K4 supports up to 40 IP cameras, while the DS-7332HQHI-K4 supports up to 48. This additional capacity helps prevent your recorder from becoming an immediate limitation as your surveillance requirements grow.
Up to 6 MP IP Camera Support — Capture More Useful Detail
Compatible IP cameras with resolutions up to 6 MP can deliver the additional visual detail needed to review activity more effectively. When an incident occurs, clearer footage can make it easier to understand what happened.
H.265 Pro+ Compression — Use Storage More Efficiently
H.265 Pro+ improves encoding efficiency and reduces video-storage costs. This helps you preserve available hard-drive capacity more effectively without abandoning the recording quality your security system requires.
Four SATA Bays — Build Substantial Recording Capacity
Four SATA interfaces support up to 10 TB per disk, providing capacity for up to 40 TB across four compatible drives. An additional eSATA interface gives you another storage-expansion option when your recording requirements increase.
4K HDMI Output — Monitor Footage on a High-Resolution Display
The independent HDMI2 output supports resolutions up to 4K at 30 Hz. This allows you to connect a compatible high-resolution display and review multi-camera layouts or recorded footage with greater on-screen clarity.
16-Channel Synchronous Playback — Review Incidents from Multiple Angles
View recorded footage from as many as 16 channels simultaneously. Instead of reviewing cameras individually and trying to reconstruct an event from memory, you can follow movement across several areas in a coordinated timeline.
Smart Search — Find Important Footage Faster
Smart Search helps reduce the time spent manually reviewing long recordings. This gives operators a more efficient way to locate relevant moments when quick answers matter.
Video Analytics — Focus Attention on Defined Events
The recorder supports four-channel line-crossing detection, four-channel intrusion detection, and one-channel sudden scene-change detection. These functions help you monitor defined boundaries and activity instead of depending entirely on continuous manual observation.
Long-Distance HDTVI Transmission — Reach Cameras Farther Away
Compatible HDTVI signals can travel up to 800 meters at 1080p or 1,200 meters at 720p. This makes the recorder suitable for larger properties where cameras may need to be positioned far from the recording equipment.
Hik-Connect and DDNS — Stay Connected Remotely
Hik-Connect and DDNS support provide options for network-based monitoring and management. With support for up to 128 remote connections, authorized users can stay connected to the surveillance system when they are away from the property.
POS Integration — Connect Transactions with Recorded Activity
POS-triggered recording and transaction-information overlay help retail operators associate recorded video with point-of-sale activity. This can make it easier to investigate disputed transactions and understand what occurred at the register.
Audio and Two-Way Audio Support — Add More Context
Four RCA audio inputs, one audio output, and one independent two-way-audio input allow compatible audio equipment to become part of the surveillance system. Audio can provide valuable context that video alone may not capture.
Alarm Connections — Integrate Additional Security Devices
Sixteen alarm inputs and four alarm outputs support integration with compatible external alarm equipment. This allows the recorder to become a more connected part of a broader security setup.
What This Helps You Avoid
A growing surveillance system can become difficult to manage when the recorder has too few channels, limited storage, or support for only one camera technology. That can lead to disconnected equipment, repeated hardware replacements, and critical areas remaining unmonitored.
When an incident happens, the problem becomes more serious. Searching through hours of footage one camera at a time can delay answers, while insufficient storage may mean the recording you need is no longer available.
The DS-7324HQHI-K4 and DS-7332HQHI-K4 address these concerns with hybrid camera compatibility, extensive channel capacity, efficient compression, expandable storage, Smart Search, and synchronized playback.
The result is a more organized surveillance system that can protect more areas, preserve your existing investment, and provide a clearer path for future expansion.
```- Avoid replacing compatible existing cameras simply to expand your system.
- Avoid running out of recorder channels as your property grows.
- Avoid wasting excessive storage through less-efficient video compression.
- Avoid reviewing every camera separately when investigating an incident.
- Avoid limiting local monitoring to lower display resolutions.
- Avoid losing visibility simply because you are away from the property.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7324HQHI-K4 / DS-7332HQHI-K4 Turbo HD DVR
Manage a large, mixed-camera surveillance system from one high-capacity recorder. The Hikvision DS-7324HQHI-K4 and DS-7332HQHI-K4 support HDTVI, AHD, HDCVI, CVBS, and IP cameras, making them practical choices for expanding an existing analog system without immediately replacing every camera.
With H.265 Pro+ compression, four SATA bays, an eSATA interface, 4K HDMI output, smart video analytics, and support for up to 40 or 48 IP cameras, this series is designed for demanding commercial surveillance environments that require extensive coverage and efficient storage.
Key Features
- Available with 24 or 32 analog BNC video inputs.
- Supports HDTVI, AHD, HDCVI, CVBS, and IP camera technologies.
- Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression.
- Supports up to 40 IP cameras on the DS-7324HQHI-K4.
- Supports up to 48 IP cameras on the DS-7332HQHI-K4.
- Accepts compatible IP cameras at resolutions up to 6 MP.
- Full-channel recording at resolutions up to 4 MP Lite.
- Supports HDTVI transmission distances up to 800 m at 1080p and 1,200 m at 720p.
- Four SATA interfaces with support for up to 10 TB per disk.
- One eSATA interface for additional compatible storage.
- 4K HDMI2 video output for high-resolution local monitoring.
- Supports 16-channel synchronous playback.
- Smart Search helps locate relevant recorded footage efficiently.
- Supports third-party cloud storage.
- Supports multiple Video Content Analytics events for analog and smart IP cameras.
- Supports four-channel line-crossing and intrusion detection.
- Supports one-channel sudden scene-change detection.
- Supports POS-triggered recording and POS information overlay.
- Hik-Connect and DDNS support simplify network management.
- Configurable output-bandwidth limit.
- Supports up to 128 remote connections.
Available Models
Recording and Compression
Video Inputs
Video Outputs
Audio and Playback
Smart Functions
Network
Storage
Auxiliary Interfaces
General
Physical Interfaces
Accessories Found in the Datasheet
Ideal Applications and Common Uses
- Large retail stores: Manage extensive camera coverage while using POS-triggered recording and transaction-information overlays.
- Warehouses and distribution facilities: Connect numerous cameras and use large-capacity storage for extended recording requirements.
- Office buildings: Combine analog and compatible IP cameras while monitoring entrances, corridors, parking areas, and shared spaces.
- Schools and campuses: Centralize surveillance across environments requiring 24 or 32 analog channels and additional IP-camera expansion.
- Hotels and multi-area properties: Monitor many public and operational areas from one recorder with 16-channel synchronous playback.
- Existing coaxial-system upgrades: Retain compatible coaxial cameras while adding newer HDTVI, AHD, HDCVI, CVBS, or IP cameras.
- Long-distance camera installations: Suitable where compatible HDTVI signals must travel up to 800 m at 1080p or 1,200 m at 720p.
- High-capacity surveillance systems: Four SATA bays and eSATA support make the series suitable for installations with substantial storage requirements.
- Remote monitoring environments: Hik-Connect, DDNS, and support for up to 128 remote connections enable network-based access and management.
- Sites requiring event-based monitoring: Line-crossing, intrusion, and sudden scene-change detection help operators identify specified video events.
Downloads
Frequently Asked Questions
The DS-7324HQHI-K4 provides 24 analog video inputs and supports up to 40 IP cameras. The DS-7332HQHI-K4 provides 32 analog video inputs and supports up to 48 IP cameras.
Both models support HDTVI, AHD, HDCVI, CVBS, and IP video inputs. This allows compatible analog and IP cameras to be used with the same recorder.
The DVRs support compatible IP cameras with resolutions up to 6 MP. Supported IP camera compression formats include H.265+, H.265, H.264+, and H.264.
Each DVR has four SATA interfaces and supports up to 10 TB per disk, allowing up to 40 TB across four compatible drives. An eSATA interface is also supported.
Yes. The datasheet lists Hik-Connect and DDNS for network management and supports up to 128 remote connections. The recorder includes one self-adaptive RJ45 10M/100M/1000M Ethernet interface.
Yes. The independent HDMI2 output supports resolutions up to 4K at 3840 × 2160 and 30 Hz. The HDMI1/VGA output supports resolutions up to 1920 × 1080 at 60 Hz.
The recorder supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. According to the datasheet, H.265 Pro+ improves encoding efficiency and reduces data-storage costs.
Both models support synchronous playback of up to 16 channels. They also include Smart Search to help users locate relevant recorded footage more efficiently.
Yes. It supports multiple Video Content Analytics events for analog and compatible smart IP cameras, including four-channel line-crossing detection, four-channel intrusion detection, and one-channel sudden scene-change detection.
Yes. It includes four RCA audio inputs, one RCA audio output, and one independent RCA input for two-way audio. It also supports POS-triggered recording and the overlay of POS information on recorded video.
