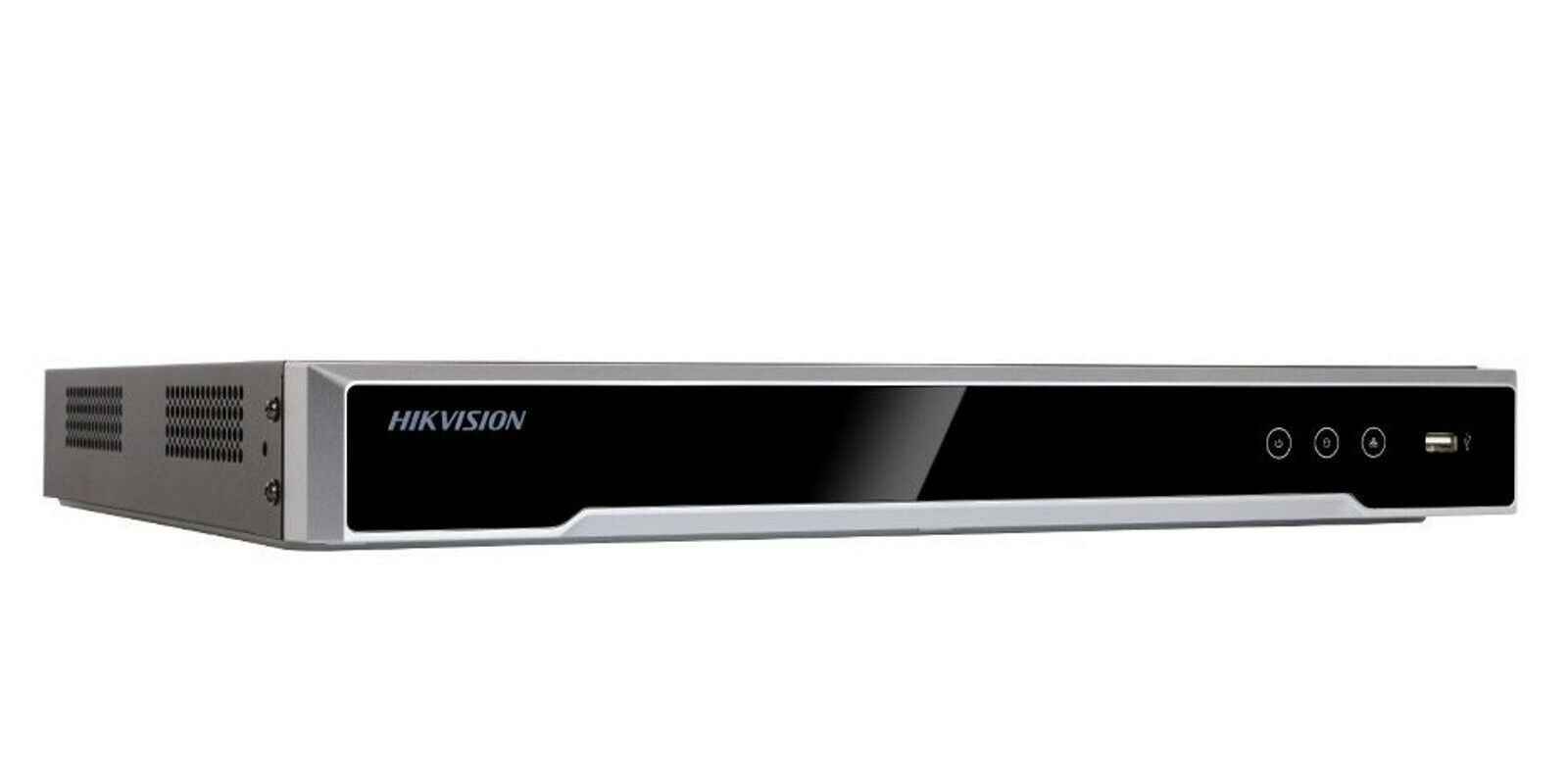

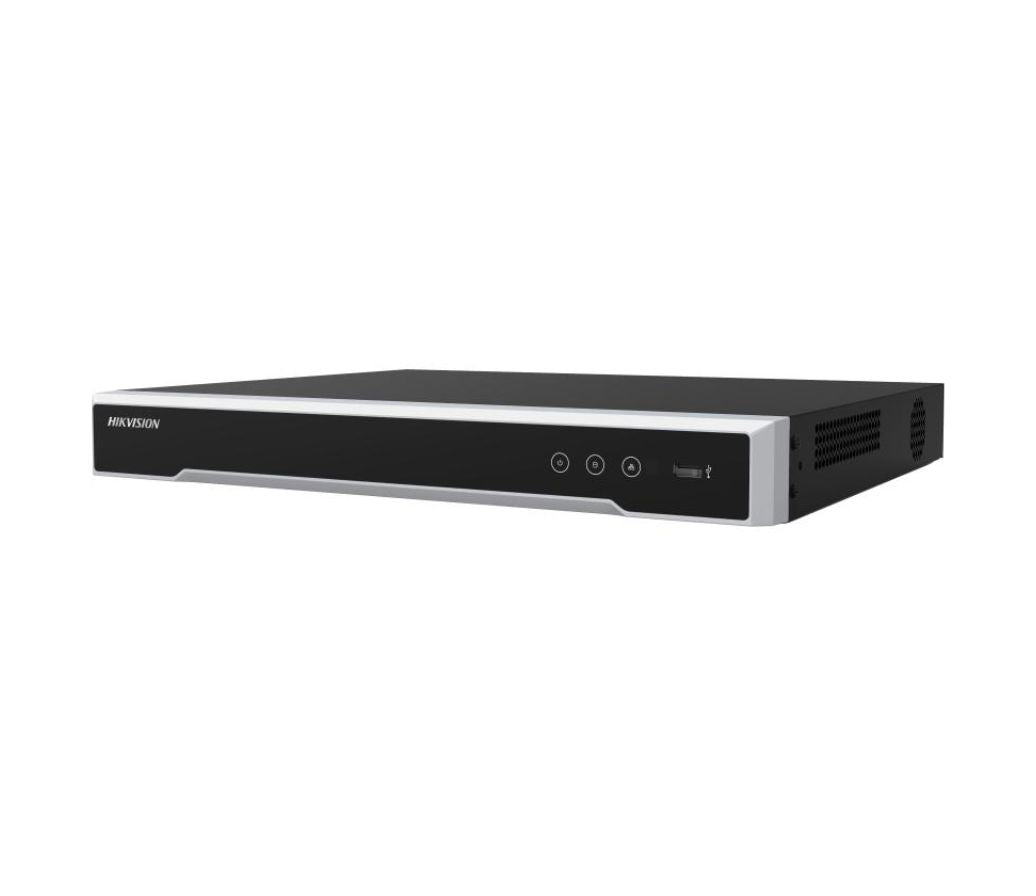

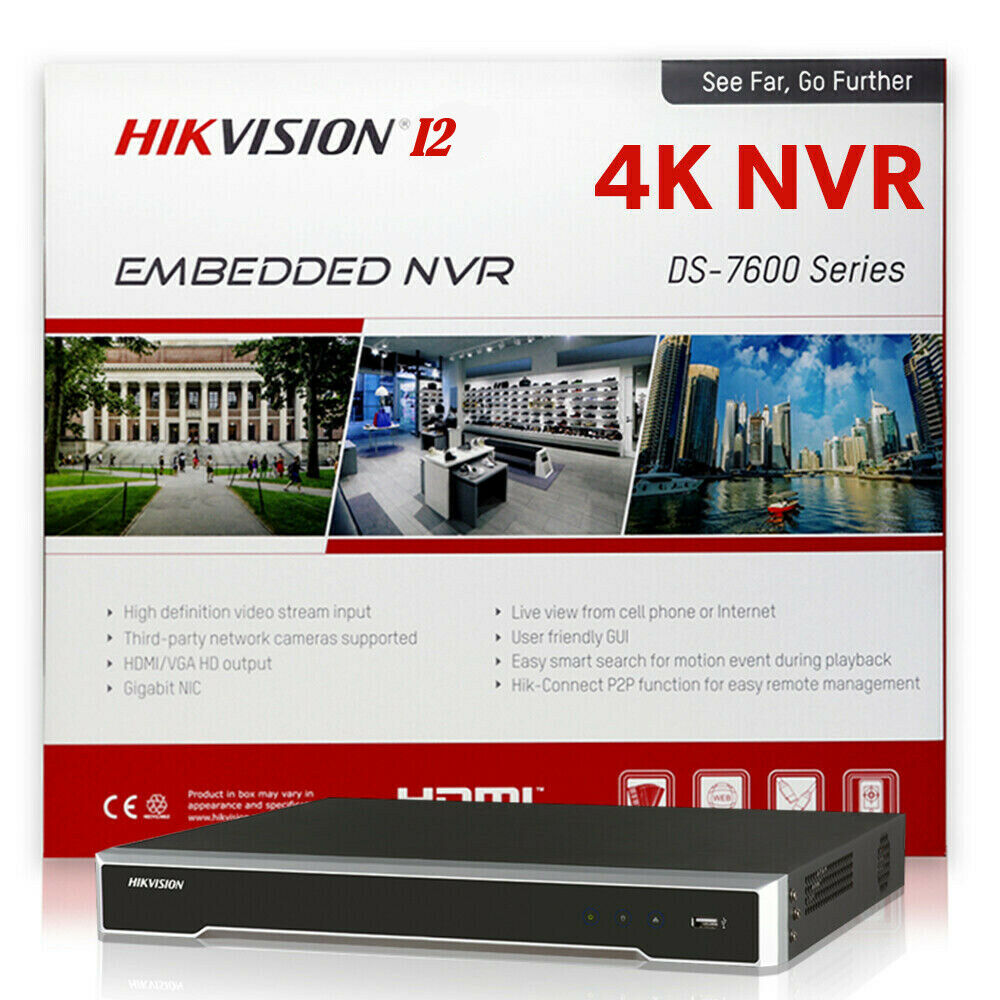

Hikvision DS-7616NI-I2/16P(C) 16-Channel 4K PoE NVR
What happens when your surveillance system starts growing, but your recorder becomes the part holding everything back? The Hikvision DS-7616NI-I2/16P(C) gives you the capacity to manage up to 16 IP cameras while providing 16 built-in PoE ports, high-resolution recording support, and room for substantial video storage.
Instead of building your system around unnecessary complexity, you get one centralized recorder designed to power compatible PoE cameras, record resolutions up to 12 MP, and display video through HDMI at up to 4K resolution.
With dual HDD support, 16-channel synchronous playback, multiple compression formats, and compatibility with specialized surveillance cameras, it gives you the flexibility to build a more capable system today without immediately outgrowing the recorder tomorrow.
Why Buyers Choose This Model
A recorder should do more than simply accept camera connections. It should make the entire surveillance system easier to install, easier to manage, and capable of handling the video quality and storage demands you actually need.
16 Built-In PoE Ports — Simplify Your Camera Installation
Connect up to 16 compatible PoE cameras directly to the recorder through its 16 RJ-45 PoE interfaces. That can simplify your system by allowing the NVR to provide both network connectivity and power to compatible cameras instead of requiring separate power connections for each camera.
Up to 16 IP Cameras — Protect More Areas From One Recorder
Whether you need cameras covering entrances, parking areas, hallways, offices, storage areas, or multiple sides of a property, the NVR supports up to 16 IP camera channels so your surveillance can remain centralized in one system.
Up to 12 MP Camera Support — Build Around High-Resolution Video
The recorder supports IP cameras with resolutions up to 12 MP, giving you the flexibility to use higher-resolution cameras in locations where additional image detail is important instead of being restricted to lower-resolution camera options.
Powerful Decoding Capacity — View Multiple Cameras Smoothly
The DS-7616NI-I2/16P(C) supports decoding up to 2 channels at 12 MP, 4 channels at 8 MP, 8 channels at 4 MP, or 16 channels at 1080p. This gives the recorder the capacity to handle different camera-resolution combinations based on how your system is configured.
16-Channel Synchronous Playback — Review the Bigger Picture
When something happens, looking at only one camera may not tell the entire story. With support for 16-channel synchronous playback, footage from multiple cameras can be reviewed as part of the same investigation instead of relying on a single viewpoint.
4K HDMI Output — Take Advantage of High-Resolution Displays
HDMI output supports resolutions up to 4K (3840 × 2160) at 60 Hz, allowing the recorder to work with high-resolution displays when monitoring or reviewing your surveillance system.
Independent HDMI and VGA Outputs — More Flexible Monitoring
HDMI and VGA support independent video output, giving you additional flexibility when configuring how surveillance video is displayed rather than limiting the recorder to a single shared video output.
Two HDD Bays — More Room for Your Recorded Footage
The NVR includes two SATA interfaces and supports up to 16 TB per disk. That means the recorder can support substantial local storage capacity when your system requires longer recording periods or higher-resolution footage.
H.265+ Compression Support — Use Storage and Bandwidth More Efficiently
Support for H.265+, H.265, H.264+, H.264, and MPEG4 gives the recorder flexibility across multiple video compression formats. H.265+ is designed to improve storage and bandwidth efficiency when used with compatible equipment and configurations.
Dual-Stream Recording — Reduce Unnecessary Bandwidth Demand
Dual-stream recording allows the system to work with separate video streams for different purposes, helping conserve bandwidth while maintaining the recording configuration your surveillance system requires.
160 Mbps Incoming Bandwidth — Built for Multi-Camera Systems
With up to 160 Mbps of incoming bandwidth, the recorder is designed to handle video traffic from multiple connected IP cameras without forcing you into an entry-level recorder that may be too limited for a larger installation.
Advanced Streaming Technology — More Dependable Viewing Under Poor Network Conditions
Hikvision's advanced streaming technology is designed to provide smoother live viewing and data self-correction when network conditions become poor, helping maintain a more usable monitoring experience when the network is less than ideal.
Specialized Camera Support — Build More Than a Basic Surveillance System
The recorder supports specialized camera types and functions including thermal cameras, fisheye cameras, people counting, heatmaps, and ANPR. This gives you greater flexibility when a property requires more than conventional fixed-camera surveillance.
ONVIF and RTSP Support — Greater Camera Integration Flexibility
Support for ONVIF and RTSP camera access protocols gives you additional flexibility when integrating compatible IP surveillance equipment instead of limiting every application to only one connection method.
Two-Way Audio and IP Speaker Support — Add Audio to the Security System
The recorder supports video and audio streams, RCA audio input and output, two-way audio, and connectivity for up to eight IP speakers. For compatible installations, that allows surveillance to go beyond silent video monitoring.
Alarm Inputs and Output — Integrate Additional Security Events
Four alarm inputs and one alarm output provide additional options for integrating the recorder with compatible alarm devices and security events as part of a more complete surveillance installation.
What This Helps You Avoid
Imagine installing cameras throughout a property only to discover later that the recorder does not have enough channels, cannot support the resolution you wanted, or leaves you with too little room for recorded footage.
Then every improvement becomes another compromise: adding additional network equipment, lowering camera requirements, reducing storage expectations, or eventually replacing a recorder you thought would be enough.
The DS-7616NI-I2/16P(C) is designed to give you more capability from the beginning. You have 16 camera channels, 16 built-in PoE interfaces, support for cameras up to 12 MP, two HDD bays with up to 16 TB per disk, 4K HDMI output, and compatibility with specialized surveillance cameras.
So the question becomes less about whether your recorder can keep up with the system you want to build—and more about how you want to use the capacity already available to you.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Hikvision 4K AcuSense 16CH 16POE NVR DS-7616NXI-I2/16P/4S 4CH Deep Learning
Out of stock
Choose your option
Hikvision DS-7616NXI-K2/16P 16-Channel AcuSense PoE 4K Network Video Recorder
In stock
Choose your option
Hikvision DS-7616NI-M2/16P 16-Channel 8K PoE Network Video Recorder NVR
In stock
Choose your option
Technical Specifications
Hikvision DS-7616NI-I2/16P(C) 16-Channel 4K PoE Network Video Recorder
The Hikvision DS-7616NI-I2/16P(C) is a 16-channel 1U network video recorder designed for IP surveillance systems that need high-resolution recording, integrated PoE connectivity, and flexible video output.
With 16 built-in PoE ports, the NVR can connect and power compatible IP cameras directly, helping simplify system installation and network infrastructure. It supports cameras up to 12 MP, up to 160 Mbps incoming bandwidth, 16-channel synchronous playback, and HDMI output at resolutions up to 4K.
Two SATA interfaces support up to two hard drives with capacities of up to 16 TB each, providing substantial storage potential for continuous video recording. Support for specialized cameras, advanced streaming technology, dual-stream recording, and up to eight IP speakers makes the recorder suitable for a wide range of surveillance environments.
Key Features
- Connect up to 16 IP cameras.
- Supports IP camera resolutions up to 12 MP.
- 16 integrated Power-over-Ethernet (PoE) interfaces for Plug & Play camera connections.
- Up to 2-ch @ 12 MP or 16-ch @ 1080p decoding capacity.
- HDMI and VGA interfaces support independent video output.
- HDMI output supports resolutions up to 4K (3840 × 2160) at 60 Hz.
- Two SATA interfaces for continuous video recording.
- Supports up to 16 TB storage capacity per hard drive.
- Up to 160 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth.
- Supports H.265+, H.265, H.264+, H.264, and MPEG4 decoding formats.
- 16-channel synchronous playback.
- Supports dual-stream recording to help reduce bandwidth and save time.
- Supports thermal, fisheye, people counting, heatmap, and ANPR cameras.
- Advanced streaming technology helps maintain smooth live view and provides data self-correction under poor network conditions.
- Supports up to eight IP speakers.
- ONVIF and RTSP camera access support.
- Supports up to 128 remote connections.
- 4 alarm inputs and 1 alarm output.
Video and Audio
Decoding and Recording
Network
Power over Ethernet (PoE)
Storage and Auxiliary Interfaces
General
Certification

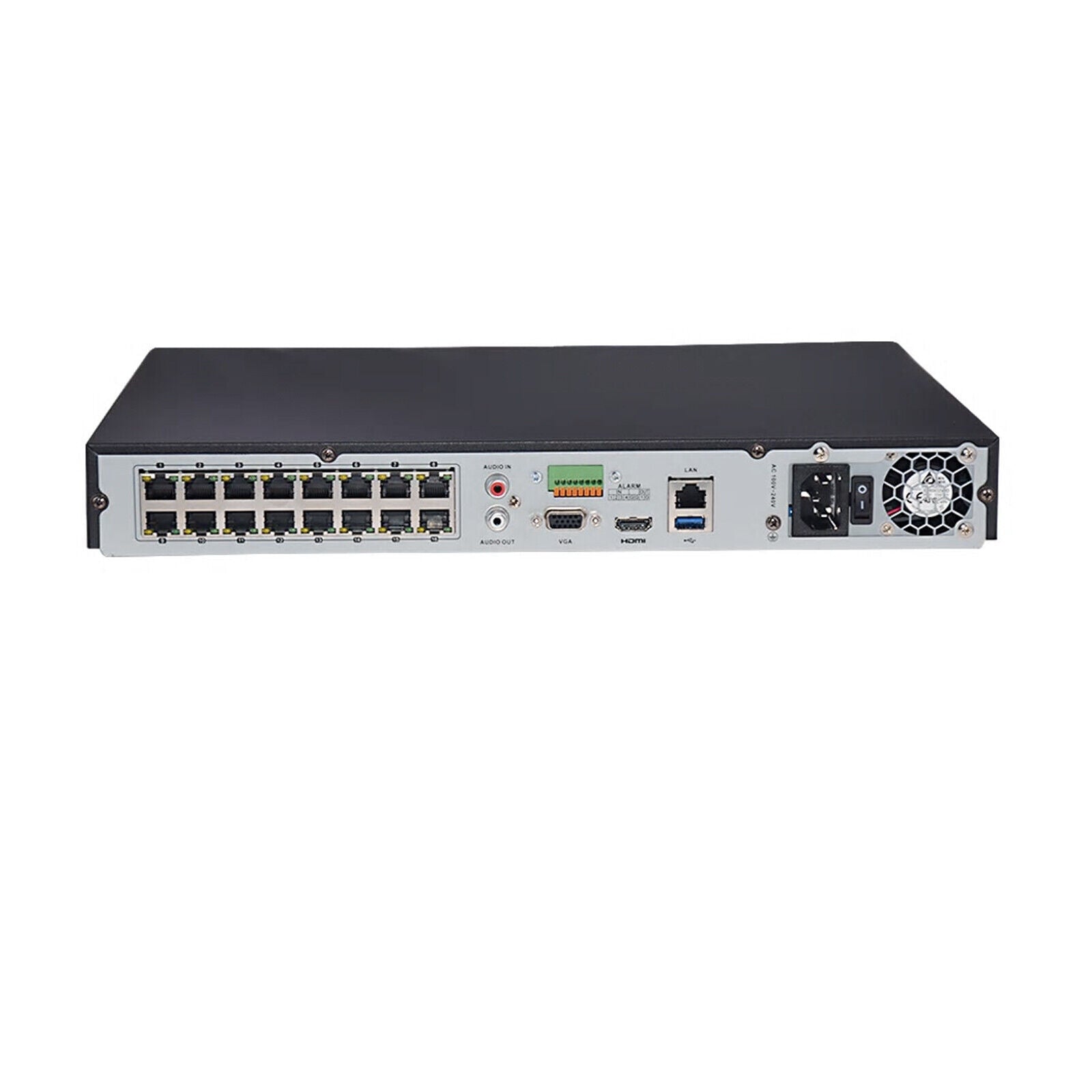

Physical Interfaces
Available Model
Accessories Found
- Mounting Ear: Shown in the datasheet dimension diagram as an optional accessory for rack mounting.
No other standalone accessories are specifically identified in the provided datasheet.
Ideal Applications & Common Uses
- 16-Camera IP Surveillance Systems: Suitable for installations requiring up to 16 network cameras from one recorder.
- PoE Camera Installations: The 16 integrated PoE interfaces allow compatible cameras to receive network connectivity and power directly from the NVR.
- High-Resolution Surveillance: Suitable for systems using cameras with resolutions up to 12 MP and displays requiring up to 4K HDMI output.
- Continuous Video Recording: Two SATA interfaces with support for up to 16 TB per disk provide storage capacity for surveillance environments that require extended or continuous recording.
- Multi-Camera Playback: 16-channel synchronous playback makes the recorder appropriate for reviewing footage from multiple cameras within the same system.
- Specialized Surveillance Applications: Supports compatible thermal, fisheye, people-counting, heatmap, and ANPR cameras.
- Systems Requiring Audio: Supports video and audio streams, audio input/output, two-way audio, and connection of up to eight IP speakers.
- Commercial and Larger Residential Systems: Its 16-channel capacity, integrated PoE, high-resolution recording support, storage capability, alarm connections, and remote connectivity make it suitable for surveillance systems requiring centralized management of multiple IP cameras.
Downloads
Frequently Asked Questions
The DS-7616NI-I2/16P(C) supports up to 16 IP camera channels, allowing as many as 16 compatible IP cameras to be connected to the NVR.
Yes. It includes 16 RJ-45 10/100 Mbps PoE interfaces for Plug & Play camera connections. The PoE system supports IEEE 802.3 af/at and has a maximum PoE power rating of 200 W.
The NVR supports IP camera input resolutions up to 12 MP. Supported recording resolutions include 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
Yes. Its HDMI output supports up to 4K (3840 × 2160) at 60 Hz or 30 Hz. The VGA output supports up to 1920 × 1080 at 60 Hz.
Yes. The datasheet specifies independent HDMI and VGA video output, allowing the two interfaces to provide independent video output.
The NVR has 2 SATA interfaces and supports up to two hard drives. Each disk can have a capacity of up to 16 TB. The recorder is designed to support continuous video recording using its HDD storage.
The DS-7616NI-I2/16P(C) supports H.265+, H.265, H.264+, H.264, and MPEG4 decoding formats. It also supports dual-stream recording.
The NVR can decode up to 2 channels at 12 MP at 20 fps, 4 channels at 8 MP at 25 fps, 8 channels at 4 MP at 30 fps, or 16 channels at 1080p at 30 fps. It also supports 16-channel synchronous playback.
Yes. The datasheet lists ONVIF Version 2.5 and RTSP as supported camera access protocols. It also lists ONVIF Version 2.2 among its supported network protocols.
Yes. The NVR includes one RCA audio input and one RCA audio output and supports one-channel two-way audio using the audio input. It supports Video and Video & Audio stream types and can also connect to up to 8 IP speakers.
