Technical Specifications

Hikvision ColorVu Network Camera

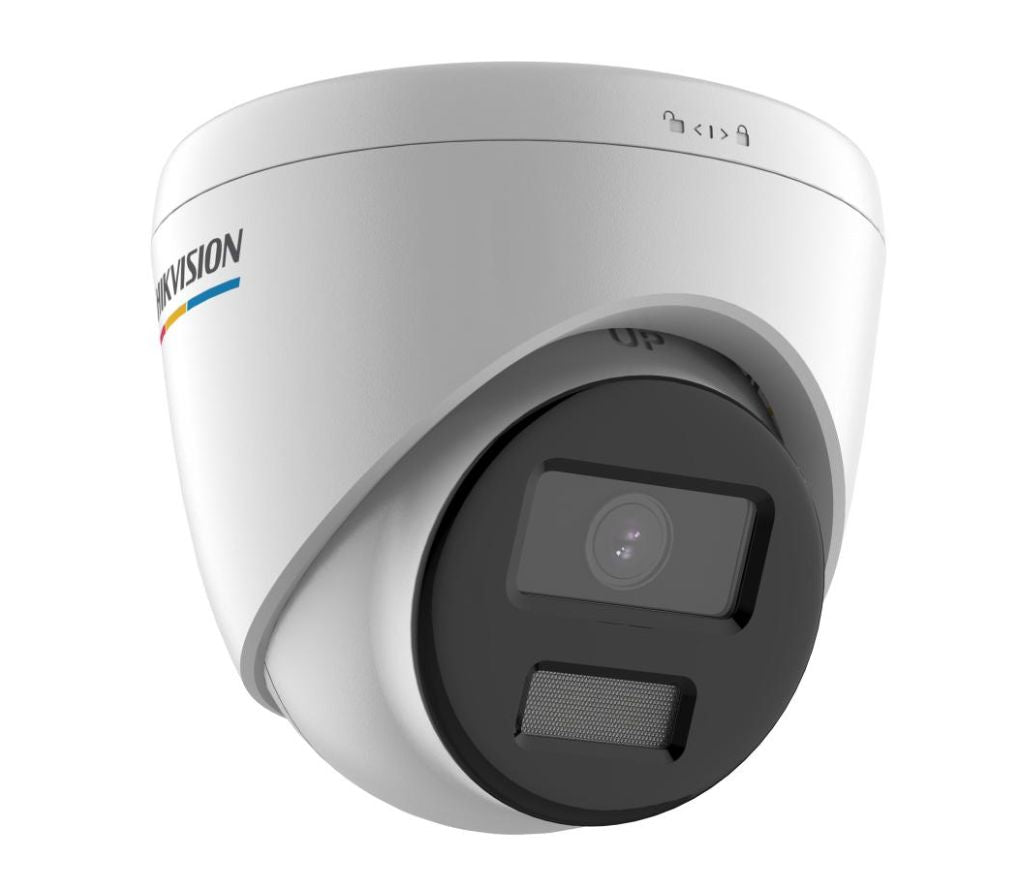

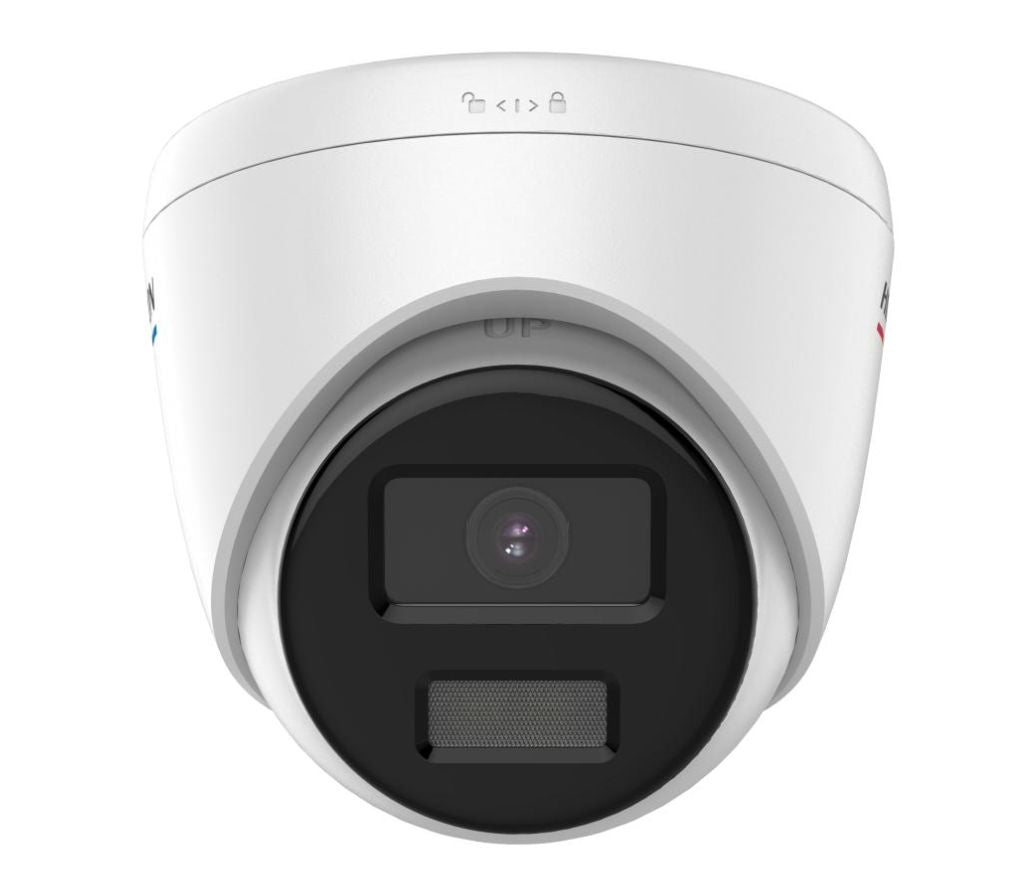

Hikvision DS-2CD1347G0-L(UF) 4 MP ColorVu Fixed Turret Network Camera

Capture clear, full-color video around the clock with a 4 MP turret camera designed for dependable indoor and outdoor surveillance. Hikvision ColorVu technology combines an F1.0 super-aperture lens, a high-performance sensor, and supplemental white light to deliver brighter, more useful images in extremely low-light environments.

With up to 2560 × 1440 resolution, 120 dB wide dynamic range, efficient H.265+ compression, PoE connectivity, and IP67 weather resistance, this camera provides detailed coverage while simplifying installation and storage management. The UF version also includes a built-in microphone, microSD card support, hardware reset, and expanded audio capabilities.

Key Features

  • High-quality 4 MP imaging with a maximum resolution of 2560 × 1440
  • Hikvision ColorVu technology for vivid, full-color imaging 24 hours a day
  • F1.0 super-aperture lens for improved light collection
  • Minimum illumination of 0.001 lux with AGC enabled
  • 0 lux imaging with supplemental white light
  • Smart supplemental lighting with a range of up to 30 meters
  • 120 dB wide dynamic range for challenging high-contrast scenes
  • Efficient H.265+ and H.264+ video compression
  • Choice of 2.8 mm or 4 mm fixed lens
  • Motion detection, video-tampering alarm, and exception events
  • PoE or 12 VDC power options
  • IP67-rated protection against water and dust
  • Up to six simultaneous live-view channels
  • Compatible with iVMS-4200 and Hik-Connect
  • UF version includes a built-in microphone and environmental noise filtering
  • UF version supports microSD cards with capacities up to 256 GB

Camera

Image Sensor
1/3-inch progressive scan CMOS
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC enabled; 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360°

Lens

2.8 mm Field of View
Horizontal: 96.5°; vertical: 50.8°; diagonal: 113.9°
4 mm Field of View
Horizontal: 75.8°; vertical: 40.8°; diagonal: 89.1°
Lens Mount
M12
Focus
Fixed
Aperture
F1.0

DORI Distance

2.8 mm Lens
Detect: 64.0 m; observe: 25.4 m; recognize: 12.8 m; identify: 6.4 m
4 mm Lens
Detect: 77.4 m; observe: 30.7 m; recognize: 15.5 m; identify: 7.7 m

Illuminator

Smart Supplemental Light
Yes
White-Light Range
Up to 30 m

Video

Maximum Resolution
2560 × 1440
Main Stream - 50 Hz
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
Main Stream - 60 Hz
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
Sub-Stream - 50 Hz
25 fps at 1280 × 720, 640 × 480, or 640 × 360
Sub-Stream - 60 Hz
30 fps at 1280 × 720, 640 × 480, or 640 × 360
Main-Stream Compression
H.265 or H.264
Sub-Stream Compression
H.265, H.264, or MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline Profile, Main Profile, and High Profile
H.265 Profile
Main Profile
H.264+
Supported on the main stream
H.265+
Supported on the main stream
Region of Interest
One fixed region for the main stream

Audio - UF Version

Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, and AAC
G.711ulaw/G.711alaw Bit Rate
64 Kbps
G.722.1 Bit Rate
16 Kbps
G.726 Bit Rate
16 Kbps
MP2L2 Bit Rate
32 to 160 Kbps
AAC Bit Rate
16 to 64 Kbps
Audio Sampling Rate
8 kHz or 16 kHz
Environmental Noise Filtering
Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, and SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface and ISAPI
Users
Up to 32 users
User Levels
Administrator, operator, and user
Client Software
iVMS-4200 and Hik-Connect
Plug-In Live View
Internet Explorer 10 or later
Plug-In-Free Live View
Chrome 57.0 or later; Firefox 52.0 or later
Local Service
Chrome 57.0 or later; Firefox 52.0 or later


Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance adjustable through client software or a web browser
Day/Night Switch
Day, Night, Auto, or Schedule
Image Enhancement
BLC and 3D DNR

Interfaces and Storage

Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Onboard Storage
UF version: built-in microSD card slot supporting up to 256 GB
Built-In Microphone
UF version: Yes
Hardware Reset
UF version: Yes

Events

Basic Events
Motion detection, video-tampering alarm, and exception
Linkage Methods
Upload to FTP or memory card (UF), notify surveillance center, send email, trigger recording (UF), and trigger capture

Physical and Environmental

Camera Material
Metal and plastic
Camera Dimensions
Ø 109.9 mm × 103.6 mm (Ø 4.33 in × 4.08 in)
Base Diameter
Ø 85 mm (3.35 in)
Mounting-Hole Diameter
Ø 4.3 mm (0.17 in)
Package Dimensions
150 × 150 × 141 mm (5.9 × 5.9 × 5.6 in)
Camera Weight
Approximately 380 g (0.84 lb)
Packaged Weight
Approximately 600 g (1.32 lb)
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Ingress Protection
IP67

Software and General Functions

Web Client Languages
English and Ukrainian
General Functions
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, and IP address filter
Firmware Version
V5.5.122

Power

12 VDC Consumption
0.4 A; maximum 5 W
PoE Consumption
802.3af, 36 V to 57 V; 0.2 A to 0.15 A; maximum 6.5 W
Power Supply
12 VDC ±25% or PoE 802.3af Class 3
Power Interface
Ø 5.5 mm coaxial power plug

Approvals and Compliance

EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 +A1:2014); RCM (AS/NZS CISPR 32:2015); KC (KN 32:2015, KN 35:2015)
Safety
UL 60950-1; CB IEC 60950-1:2005 + Am 1:2009 + Am 2:2013 and IEC 62368-1:2014; CE-LVD EN 60950-1:2005 + Am 1:2009 + Am 2:2013 and IEC 62368-1:2014; BIS IS 13252 (Part 1):2010+A1:2013+A2:2015
Environmental Compliance
CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH Regulation (EC) No. 1907/2006
Protection Standard
IP67 according to IEC 60529-2013

Optional Accessories Found in the Datasheet

DS-1476ZJ-SUS
Corner-mount adapter
DS-1276ZJ-SUS
Corner-mount adapter
DS-1275ZJ-SUS
Vertical-pole mount adapter
DS-1475ZJ-SUS
Vertical-pole mount adapter
DS-1275ZJ-S-SUS
Vertical-pole mount adapter
DS-1280ZJ-S
Junction box
DS-1280ZJ-TR13
Junction box
DS-220AZJ-130-WA
Wall-mount bracket
DS-220AZJ-145-WA
Wall-mount bracket
DS-1272ZJ-110-TRS
Wall-mount bracket
DS-1271ZJ-110-TRS
Pendant-mount bracket
DS-1281ZJ-S
Inclined-ceiling mount
DS-1253ZJ-M
Mounting accessory shown with the DS-1272ZJ-110-TRS wall-mount configuration

Supported Installation Configurations

Corner Mounting
DS-1476ZJ-SUS + DS-220AZJ-145-WA
Corner Mounting
DS-1276ZJ-SUS + DS-1281ZJ-S
Vertical-Pole Mounting
DS-1275ZJ-SUS + DS-1272ZJ-110-TRS
Vertical-Pole Mounting
DS-1475ZJ-SUS + DS-220AZJ-130-WA
Vertical-Pole Mounting
DS-1275ZJ-S-SUS + DS-220AZJ-130-WA
Junction Box
DS-1280ZJ-S
Junction Box
DS-1280ZJ-TR13
Wall Mounting
DS-220AZJ-130-WA
Wall Mounting
DS-1272ZJ-110-TRS + DS-1253ZJ-M
Wall Mounting
DS-220AZJ-145-WA
Pendant Mounting
DS-1271ZJ-110-TRS
Inclined-Ceiling Mounting
DS-1281ZJ-S

Ideal Applications and Common Uses

  • Residential entrances, driveways, patios, and perimeter areas
  • Retail stores requiring clear, full-color identification after dark
  • Office entrances, reception areas, corridors, and parking areas
  • Warehouses, loading areas, and building exteriors
  • Restaurants, convenience stores, and other small businesses
  • Locations with limited ambient lighting where traditional cameras may switch to black-and-white video
  • High-contrast entrances where 120 dB WDR can help balance bright and dark areas
  • Outdoor installations exposed to rain or dust
  • PoE installations where power and data need to run through one Ethernet cable
  • UF-version installations requiring built-in audio and local microSD recording

Model note: Features marked “UF” apply specifically to the DS-2CD1347G0-LUF version, including the built-in microphone, microSD card slot, environmental noise filtering, and hardware reset.
