Technical Specifications

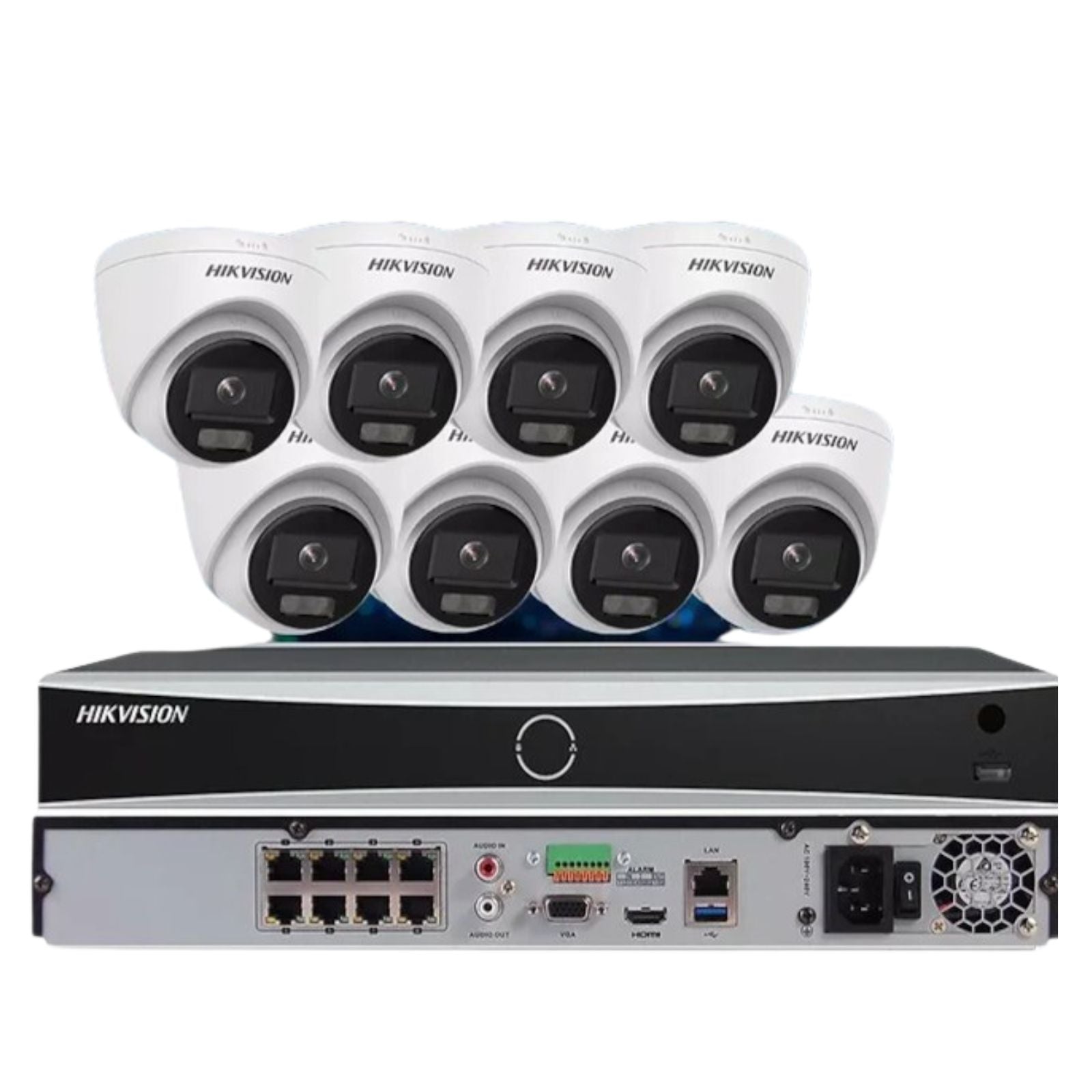

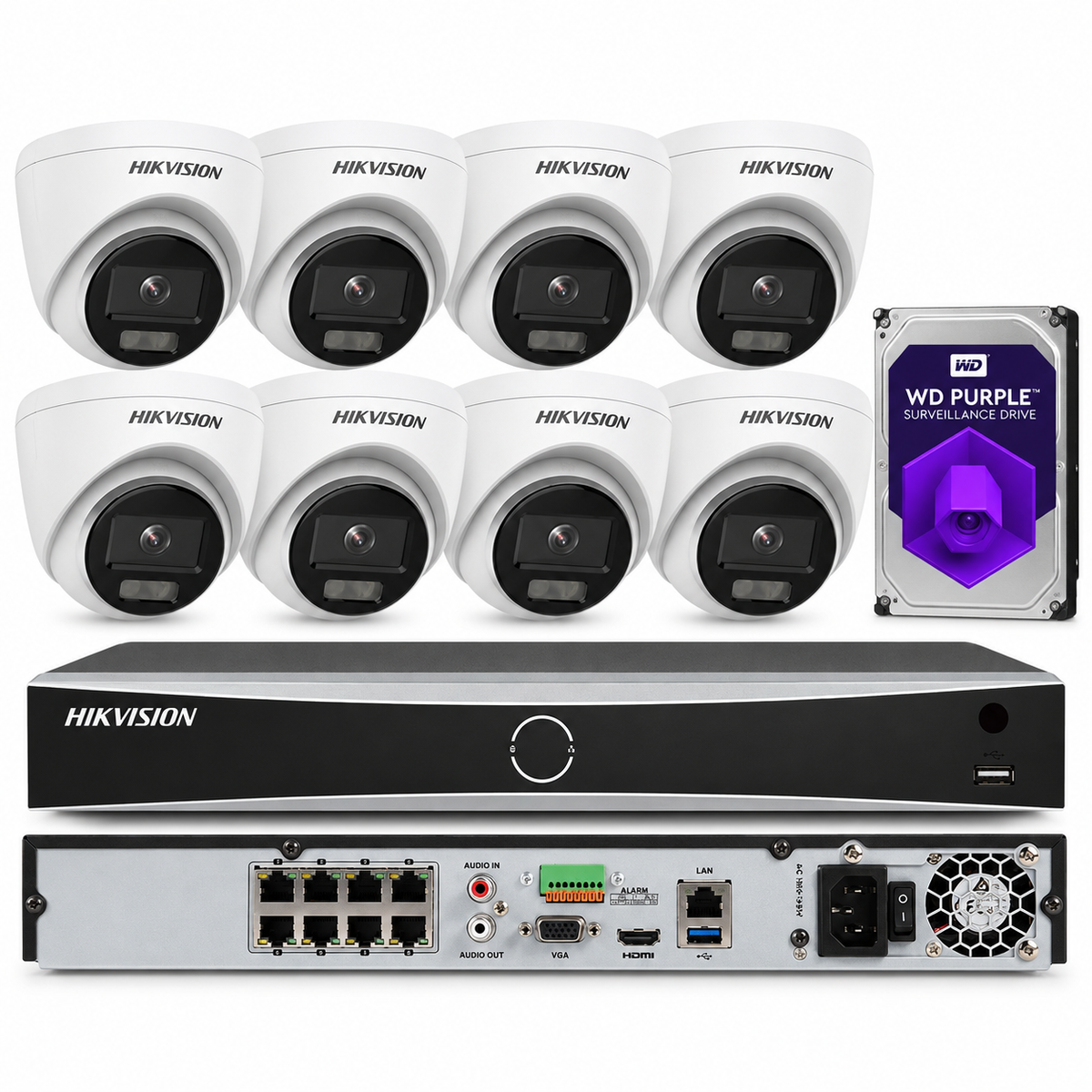

Hikvision 8-Channel AcuSense 4K PoE NVR with 4MP ColorVu Turret Camera

Build a smarter surveillance system around the Hikvision DS-7608NXI-K1/8P/VPro NVR and DS-2CD1347G0-L(UF) ColorVu camera. The recorder provides eight built-in PoE ports, intelligent human and vehicle analysis, advanced video search, 4K HDMI output, and support for cameras up to 12MP. The 4MP ColorVu turret captures vivid color around the clock using an F1.0 lens, a high-performance image sensor, and white supplemental lighting reaching up to 30 meters.

Together, these components help you capture more useful evidence, reduce false alarms, and review important activity without searching through hours of irrelevant footage. The camera can connect directly to one of the NVR’s PoE ports, simplifying both power and video transmission through a single network cable.

Key Features

  • Eight-channel NVR with eight built-in PoE camera ports
  • Supports up to eight IP camera inputs
  • Hikvision AcuSense human and vehicle recognition helps reduce false alarms
  • AcuSearch available across all channels when supported and enabled by the connected cameras
  • AcuSeek support across all channels with compatible Hikvision AcuSense cameras that have AcuSearch enabled
  • AcuSeek modeling capacity of up to 50,000 targets per day
  • 4MP ColorVu camera delivers vivid color images 24 hours a day
  • F1.0 super-aperture lens captures more available light for brighter images
  • Camera resolution up to 2560 × 1440
  • White supplemental light reaches up to 30 meters
  • 120 dB Wide Dynamic Range improves visibility in high-contrast scenes
  • Efficient H.265+ compression reduces bandwidth and storage requirements
  • NVR supports up to 80 Mbps incoming and 80 Mbps outgoing bandwidth
  • HDMI output supports resolutions up to 4K

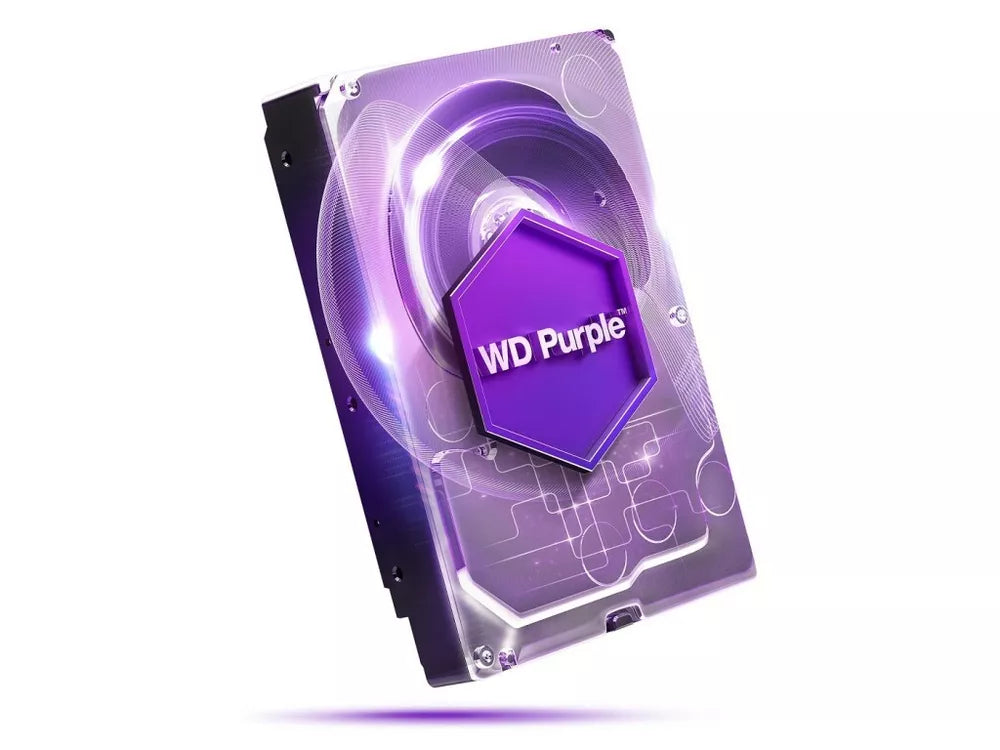

  • One SATA interface supports an HDD with up to 16TB capacity
  • Eight-channel synchronous playback
  • Camera is IP67-rated for resistance to water and dust
  • UF camera version includes a built-in microphone and microSD card slot supporting up to 256GB
  • Hik-Connect support for convenient remote system access

NVR Intelligent Analytics

NVR Model

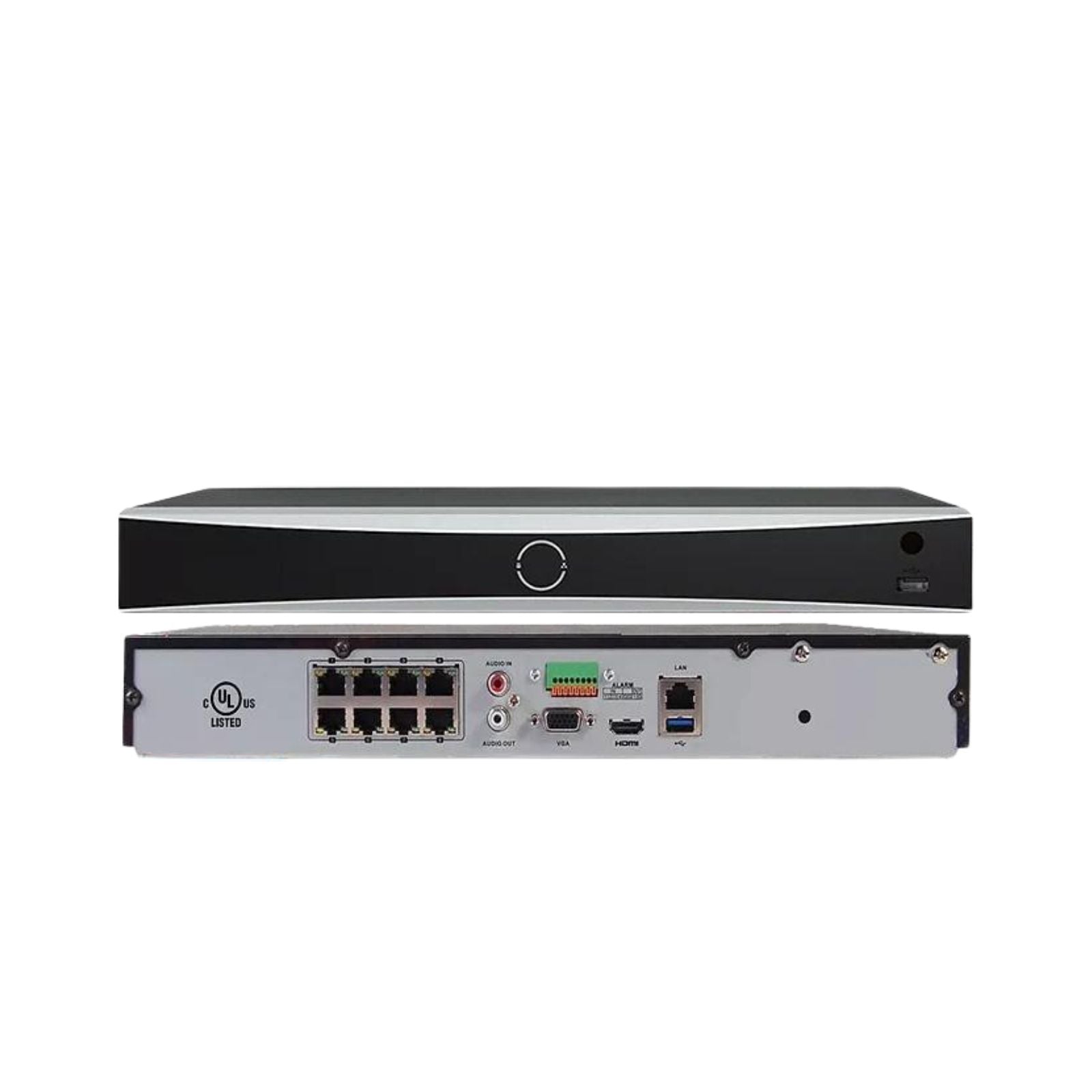

DS-7608NXI-K1/8P/VPro
AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek
AI by NVR and Camera
Facial recognition, perimeter protection, Motion Detection 2.0, ANPR, and VCA
AcuSearch by Camera
All channels; connected cameras must support and have AcuSearch enabled
AcuSeek Performance
All channels with compatible Hikvision AcuSense cameras that have AcuSearch enabled; models up to 50,000 targets per day
AcuSeek Search Language
English

NVR Perimeter Protection

Analysis Type
Human and vehicle recognition for compatible H.264/H.265 HD network camera video, designed to reduce false alarms
Perimeter Protection by NVR
Up to 2 channels at 4MP; up to 1 channel from 5MP to 8MP
Perimeter Protection by Camera
All channels when supported by the connected cameras

NVR Facial Recognition

Facial Detection and Analytics
Face picture comparison, human face capture, and face picture search
Face Picture Libraries
Up to 16 libraries with up to 50,000 face pictures in total
Face Picture Limits
Each picture up to 1MB; total library capacity up to 800MB
Face Picture Comparison
Up to 8 channels
Facial Analytics Performance
Up to 2 channels at 4MP; up to 1 channel from 5MP to 8MP

NVR Motion Detection 2.0

Motion Detection by NVR
All channels with up to 4MP video analysis for human and vehicle recognition; up to 8MP when Enhanced SVC mode is enabled
Motion Detection by Camera
All channels when supported by the connected cameras

NVR Video and Audio

IP Video Inputs
8 channels
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
IP Speaker Inputs
4 channels
Video Output Mode
Independent HDMI and VGA output
HDMI Output Resolutions
4K (3840 × 2160) at 30 Hz; 2K (2560 × 1440) at 60 Hz; 1080p (1920 × 1080) at 60 Hz; UXGA (1600 × 1200) at 60 Hz; SXGA (1280 × 1024) at 60 Hz; 720p (1280 × 720) at 60 Hz
VGA Output Resolutions
1080p (1920 × 1080) at 60 Hz; UXGA (1600 × 1200) at 60 Hz; SXGA (1280 × 1024) at 60 Hz; 720p (1280 × 720) at 60 Hz
Two-Way Audio Input
1-channel RCA, 2.0 Vp-p, 1 kΩ
Audio Output
1-channel RCA, linear, 1 kΩ

NVR Recording, Decoding and Playback

Video Decoding Formats
H.265, H.265+, H.264, and H.264+
Recording Resolutions
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Playback Modes
Normal/Smart, Event, Tag, and External File
Synchronous Playback
8 channels
Live-View Window Divisions
1, 2, 4, 6, 8, or 9 windows
Decoding Capacity with AI Enabled
2 channels at 12MP/30 fps; 3 channels at 8MP/30 fps; 4 channels at 6MP/30 fps; 6 channels at 4MP/30 fps; 8 channels at 3MP/30 fps; or 8 channels at 2MP/30 fps
Decoding Capacity with AI Disabled
4 channels at 12MP/30 fps; 6 channels at 8MP/30 fps; 8 channels at 6MP/30 fps; 8 channels at 4MP/30 fps; 8 channels at 3MP/30 fps; or 8 channels at 2MP/30 fps
Stream Types
Video or video and audio
Audio Compression
G.711ulaw, G.711alaw, G.722, G.726, AAC, and MP2L2

NVR Network and PoE

LAN Network Interface
1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, and HTTPS
Remote Connections
Up to 128
PoE Interfaces
8 × RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Power Budget
Up to 75W
PoE Standard
IEEE 802.3af/at
Remote Management
Hik-Connect
Secure Transmission
Stream-over-TLS encryption

NVR Storage and Auxiliary Interfaces

SATA Interfaces
1
Maximum HDD Capacity

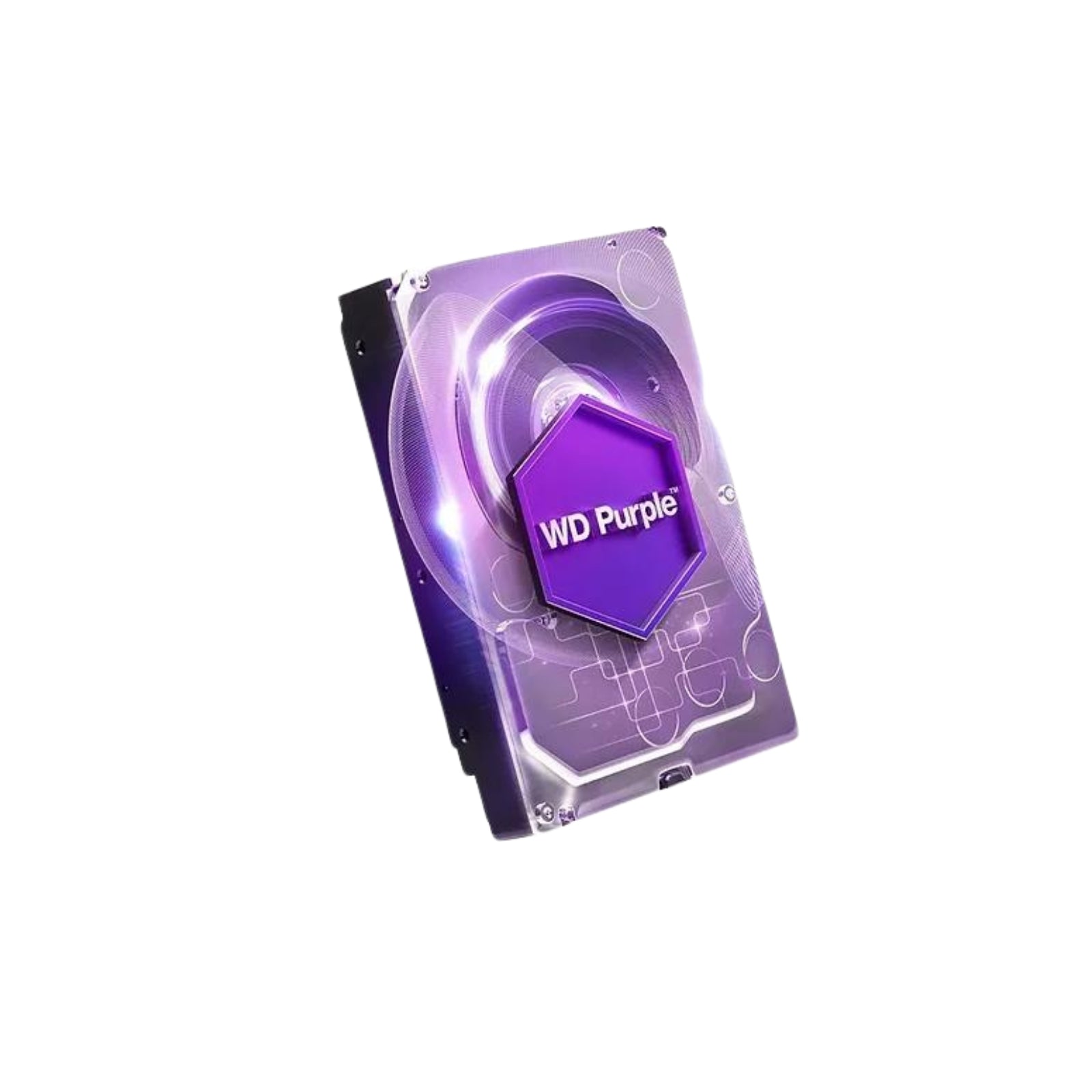

Up to 16TB
Alarm Inputs/Outputs
4 inputs / 1 output
Front USB Interface
1 × USB 2.0
Rear USB Interface
1 × USB 2.0
Physical Connections
PoE network ports, LAN port, audio output, audio input, HDMI, alarm input/output, VGA, USB, 48V DC power input, power switch, and ground connection

NVR General Specifications

Power Supply
48 VDC, 1.875 A
Power Consumption
Up to 10W without HDD
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
319 × 240 × 48 mm (12.56 × 9.43 × 1.87 inches)
Weight
Up to 1 kg without HDD (datasheet also lists 2.9 lb.)
GUI Languages
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, and Indonesian
Obtained Certifications
CE, CB, REACH, WEEE, UKCA, RCM, and IC
CE Standards
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, and EN 55035:2017

Camera Imaging

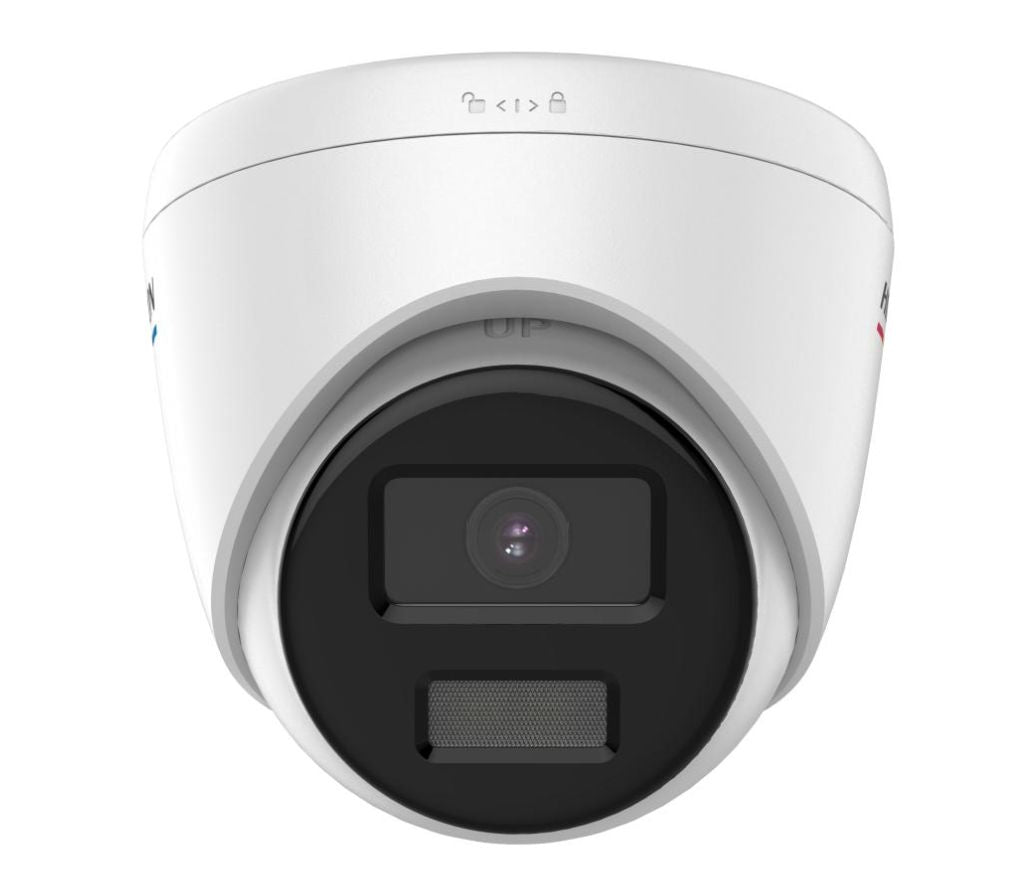

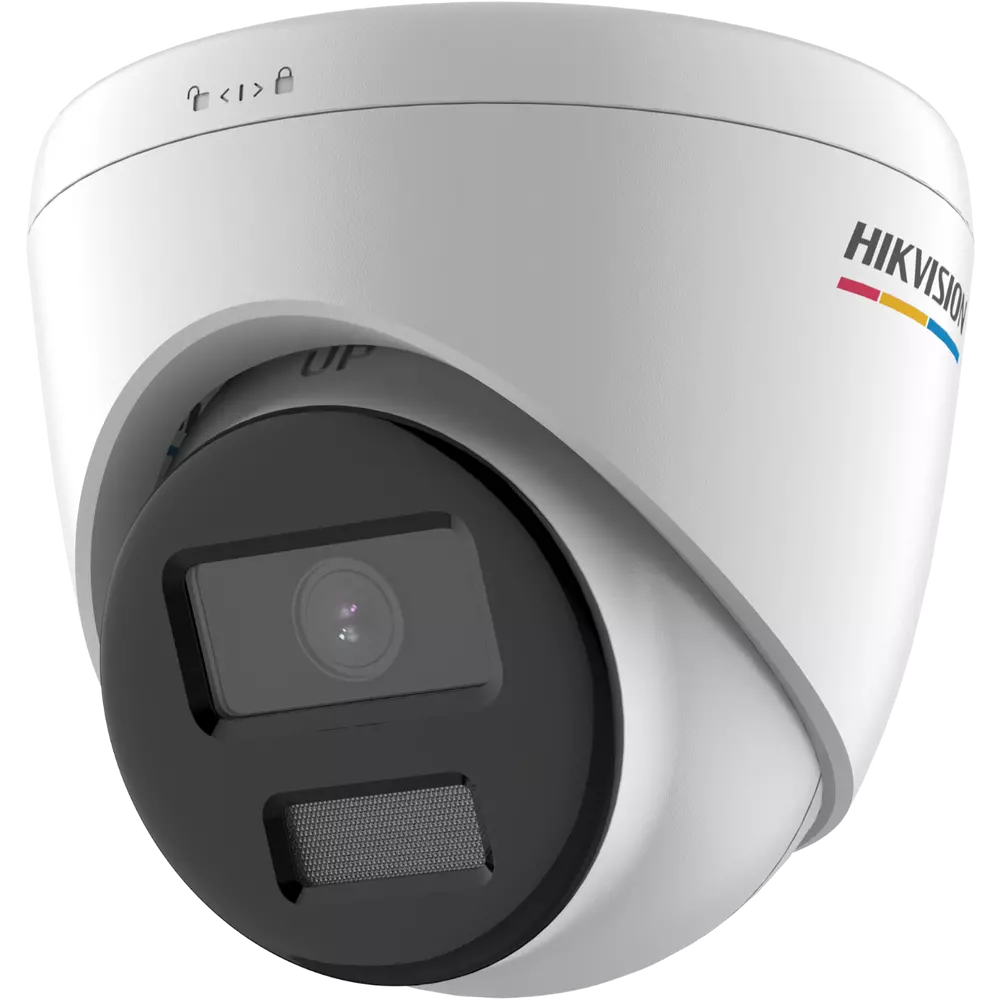

Camera Model

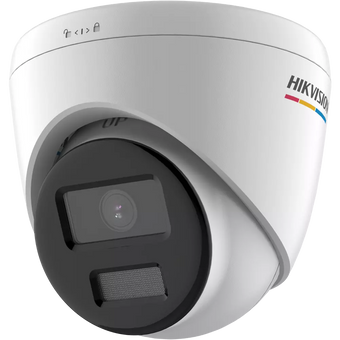

DS-2CD1347G0-L(UF)
Camera Type
4MP ColorVu fixed turret network camera
Image Sensor
1/3-inch Progressive Scan CMOS
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC on; 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Supported
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360°

Camera Lens

Available Focal Lengths
2.8 mm or 4 mm fixed lens
2.8 mm Field of View
Horizontal: 96.5°; vertical: 50.8°; diagonal: 113.9°
4 mm Field of View
Horizontal: 75.8°; vertical: 40.8°; diagonal: 89.1°
Lens Mount
M12
Focus
Fixed
Aperture
F1.0
2.8 mm DORI Distance
Detect: 64.0 m; observe: 25.4 m; recognize: 12.8 m; identify: 6.4 m
4 mm DORI Distance
Detect: 77.4 m; observe: 30.7 m; recognize: 15.5 m; identify: 7.7 m

Camera Supplemental Lighting

Smart Supplemental Light
Supported
Light Type
White light
White-Light Range
Up to 30 m (approximately 98 ft.)
Night Imaging
24/7 colorful imaging

Camera Video

Maximum Resolution
2560 × 1440
Main Stream at 50 Hz
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
Main Stream at 60 Hz
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
Sub-Stream at 50 Hz
25 fps at 1280 × 720, 640 × 480, or 640 × 360
Sub-Stream at 60 Hz
30 fps at 1280 × 720, 640 × 480, or 640 × 360
Main-Stream Compression
H.265 or H.264
Sub-Stream Compression
H.265, H.264, or MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline Profile, Main Profile, and High Profile
H.265 Profile
Main Profile
H.264+
Supported on the main stream
H.265+
Supported on the main stream
Region of Interest
One fixed region for the main stream

Camera Audio - UF Version

Built-In Microphone
Included on the UF version
Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, and AAC
Audio Bit Rates
64 Kbps for G.711ulaw/G.711alaw; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC
Audio Sampling Rate
8 kHz or 16 kHz
Environmental Noise Filtering
Supported on the UF version

Camera Network

Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, and SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface and ISAPI
Users
Up to 32 users
User Levels
Administrator, operator, and user
Compatible Clients
iVMS-4200 and Hik-Connect
Web Browser Support
Plug-in required live view: Internet Explorer 10 or later; plug-in-free live view and local service: Chrome 57.0 or later and Firefox 52.0 or later

Camera Image Controls

Adjustable Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance through client software or a web browser
Day/Night Modes
Day, Night, Auto, or Schedule
Image Enhancement
BLC and 3D DNR

Camera Interfaces and Storage

Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage
UF version includes a built-in microSD card slot supporting cards up to 256GB
Hardware Reset
Included on the UF version

Camera Events and Linkage

Basic Events
Motion detection, video tampering alarm, and exception
Linkage Methods
Upload to FTP or memory card on the UF version, notify surveillance center, send email, trigger recording on the UF version, and trigger capture

Camera Construction and Environmental Ratings

Housing Material
Metal and plastic
Camera Dimensions
Ø 109.9 × 103.6 mm (Ø 4.33 × 4.08 inches)
Package Dimensions
150 × 150 × 141 mm (5.9 × 5.9 × 5.6 inches)
Camera Weight
Approximately 380 g (0.84 lb.)
Packaged Weight
Approximately 600 g (1.32 lb.)
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
< ``` ```html

Hikvision 8-Channel 4K PoE NVR with 4MP ColorVu Turret Network Camera

Build a reliable video-surveillance system that combines centralized 4K recording with vivid, full-color imaging around the clock. The Hikvision DS-7608NXI-K1/8P/VPro NVR provides eight built-in PoE ports, intelligent human and vehicle analysis, advanced video search, and storage support up to 16 TB. Paired with the DS-2CD1347G0-L(UF) 4MP ColorVu turret camera, the system captures detailed color video in extremely low light and uses white supplemental light when necessary.

This combination is well suited to homes and businesses that want easier installation, fewer false alarms, efficient footage review, and dependable local recording without sacrificing nighttime image quality.

Key Features

  • Eight-channel NVR with eight integrated PoE camera interfaces
  • Automatic camera connection and configuration for streamlined installation
  • Up to 4K HDMI monitor output
  • Up to 80 Mbps incoming and 80 Mbps outgoing bandwidth
  • AcuSense human and vehicle classification helps reduce false alarms
  • AcuSearch available on all channels when supported and enabled by compatible cameras
  • AcuSeek natural-language video search available with compatible AcuSense cameras that have AcuSearch enabled
  • Up to 50,000 AcuSeek targets modeled per day
  • Facial recognition and face-picture comparison capabilities
  • H.265+ compression can reduce required storage space by up to 75%
  • One SATA interface supporting an HDD with capacity up to 16 TB
  • Eight-channel synchronous playback
  • 4MP ColorVu camera with a maximum resolution of 2560 × 1440
  • F1.0 aperture and 0.001-lux low-light sensitivity
  • 24/7 colorful imaging with white supplemental light up to 30 meters
  • 120 dB wide dynamic range for scenes containing bright and dark areas
  • IP67-rated camera housing for resistance to water and dust
  • UF camera variant includes a built-in microphone and microSD card slot supporting up to 256 GB

NVR Model and Capacity

NVR Model
DS-7608NXI-K1/8P/VPro
Product Type
8-channel PoE 1U K Series AcuSense 4K Network Video Recorder
IP Video Inputs
8 channels
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
IP Speaker Inputs
4 channels

NVR Intelligent Analytics

AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch and AcuSeek
AI by NVR and Camera
Facial recognition, perimeter protection, Motion Detection 2.0, ANPR and VCA
AcuSearch
Available on all channels when the connected camera has AcuSearch enabled
AcuSeek Compatibility
Supported on all channels when connected cameras support Hikvision AcuSense Technology and have AcuSearch enabled
AcuSeek Modeling Capacity
Up to 50,000 targets per day
AcuSeek Search Language
English
Smart Search and Playback
Smart search within a selected video area and smart playback for more efficient footage review

NVR Perimeter Protection

Analytics Function
Human and vehicle recognition using H.264 or H.265 video from compatible HD network cameras
Perimeter Protection by NVR
2 channels at up to 4MP or 1 channel from 5MP to 8MP
Perimeter Protection by Camera
All channels, subject to connected camera capabilities

NVR Facial Recognition

Facial Recognition Modes
2-channel facial recognition for video streams or 8-channel facial recognition for face pictures
Facial Detection and Analytics
Face-picture comparison, human-face capture and face-picture search
Face-Picture Libraries
Up to 16 libraries containing up to 50,000 face pictures in total
Face-Picture Limits
Each image up to 1 MB; total library capacity up to 800 MB
Face-Picture Comparison
8 channels
Facial Analytics Performance
2 channels at up to 4MP or 1 channel from 5MP to 8MP

NVR Motion Detection 2.0

Motion Detection by NVR
All channels at up to 4MP for human and vehicle recognition; up to 8MP when enhanced SVC mode is enabled
Motion Detection by Camera
All channels, subject to connected camera capabilities

NVR Video and Monitor Outputs

Video Output Mode
Independent HDMI and VGA output
HDMI Output Resolutions
4K (3840 × 2160) at 30 Hz; 2K (2560 × 1440) at 60 Hz; 1080p (1920 × 1080) at 60 Hz; UXGA (1600 × 1200) at 60 Hz; SXGA (1280 × 1024) at 60 Hz; 720p (1280 × 720) at 60 Hz
VGA Output Resolutions
1080p (1920 × 1080) at 60 Hz; UXGA (1600 × 1200) at 60 Hz; SXGA (1280 × 1024) at 60 Hz; 720p (1280 × 720) at 60 Hz
Live-View Window Division
1, 2, 4, 6, 8 or 9 windows

NVR Audio

Two-Way Audio Input
1-channel RCA, 2.0 Vp-p, 1 kΩ
Audio Output
1-channel RCA, linear, 1 kΩ
Audio Compression
G.711ulaw, G.711alaw, G.722, G.726, AAC and MP2L2
Supported Stream Types
Video or video and audio

NVR Recording, Decoding and Playback

Video Decoding Formats
H.265, H.265+, H.264 and H.264+
Recording Resolutions
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF
Playback Modes
Normal/Smart, Event, Tag and External File
Synchronous Playback
8 channels
Decoding Capacity with AI Enabled
2-ch 12MP at 30 fps; 3-ch 8MP at 30 fps; 4-ch 6MP at 30 fps; 6-ch 4MP at 30 fps; 8-ch 3MP at 30 fps; or 8-ch 2MP at 30 fps
Decoding Capacity with AI Disabled
4-ch 12MP at 30 fps; 6-ch 8MP at 30 fps; 8-ch 6MP at 30 fps; 8-ch 4MP at 30 fps; 8-ch 3MP at 30 fps; or 8-ch 2MP at 30 fps

NVR Network

LAN Interface
1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP and HTTPS
Remote Connections
Up to 128
Remote Management
Hik-Connect
Secure Video Transmission
Stream-over-TLS encryption

NVR PoE Interfaces

PoE Ports
8 independent RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Power Budget
Up to 75 W
PoE Standard
IEEE 802.3af/at

NVR Storage and Auxiliary Interfaces

SATA Interface
1 SATA interface
Maximum HDD Capacity
Up to 16 TB
Alarm Inputs/Outputs
4 alarm inputs and 1 alarm output
Front USB Interface
1 × USB 2.0
Rear USB Interface
1 × USB 2.0

NVR General Specifications

Power Supply
48 VDC, 1.875 A
Power Consumption
Up to 10 W without HDD
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
319 × 240 × 48 mm (12.56 × 9.43 × 1.87 inches)
Weight
Up to 1 kg without HDD (datasheet also lists 2.9 lb.)
Obtained Certifications
CE, CB, REACH, WEEE, UKCA, RCM and IC

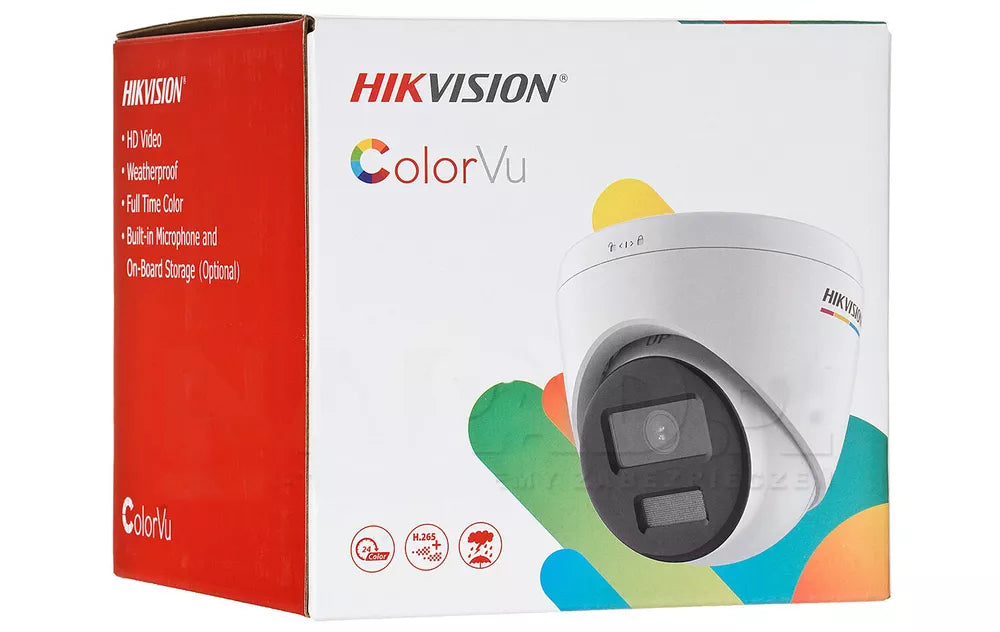

Camera Model and Imaging

Camera Model Family
DS-2CD1347G0-L(UF)
Camera Type
4MP ColorVu fixed turret network camera
Image Sensor
1/3-inch Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC on; 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Supported
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360°

Camera Lens

Available Focal Lengths
2.8 mm or 4 mm fixed lens
2.8 mm Field of View
Horizontal: 96.5°; vertical: 50.8°; diagonal: 113.9°
4 mm Field of View
Horizontal: 75.8°; vertical: 40.8°; diagonal: 89.1°
Lens Mount
M12
Focus
Fixed
Aperture
F1.0
2.8 mm DORI Distance
Detect: 64.0 m; observe: 25.4 m; recognize: 12.8 m; identify: 6.4 m
4 mm DORI Distance
Detect: 77.4 m; observe: 30.7 m; recognize: 15.5 m; identify: 7.7 m

Camera Supplemental Lighting

Imaging Technology
Hikvision ColorVu with 24/7 colorful imaging
Smart Supplemental Light
Supported
Supplemental Light Type
White light
White-Light Range
Up to 30 m (approximately 98 ft.)

Camera Video

Main Stream - 50 Hz
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
Main Stream - 60 Hz
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
Sub-Stream - 50 Hz
25 fps at 1280 × 720, 640 × 480 or 640 × 360
Sub-Stream - 60 Hz
30 fps at 1280 × 720, 640 × 480 or 640 × 360
Main-Stream Compression
H.265 and H.264
Sub-Stream Compression
H.265, H.264 and MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline Profile, Main Profile and High Profile
H.265 Profile
Main Profile
H.264+
Supported on the main stream
H.265+
Supported on the main stream
Region of Interest
One fixed region for the main stream

Camera Audio - UF Variant

Built-In Microphone
Yes, on the UF variant
Environment Noise Filtering
Supported on the UF variant
Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM and AAC
Audio Sampling Rate
8 kHz or 16 kHz
Audio Bit Rate
64 Kbps for G.711; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC

Camera Network

Ethernet Interface
1 RJ45 10/100 Mbps self-adaptive Ethernet port
Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP and SSL/TLS
Simultaneous Live View
Up to 6 channels
API Support
Open Network Video Interface and ISAPI
Users
Up to 32 users with administrator, operator and user permission levels
Compatible Clients
iVMS-4200 and Hik-Connect
Web Browser Support
Plug-in-required live view: Internet Explorer 10 or later; plug-in-free live view and local service: Chrome 57 or later and Firefox 52 or later

Camera Image Controls

Adjustable Image Settings
Saturation, brightness, contrast, sharpness, AGC and white balance through client software or web browser
Day/Night Modes
Day, Night, Auto and Schedule
Image Enhancement
BLC and 3D DNR
Additional Functions
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark and IP-address filtering

Camera Storage, Events and Linkage

On-Board Storage
UF variant includes a memory-card slot supporting microSD cards up to 256 GB
Hardware Reset
Available on the UF variant
Basic Events
Motion detection, video-tampering alarm and exception
Linkage Actions
Upload to FTP or memory card, notify surveillance center, send email, trigger recording and trigger capture; memory-card functions apply to the UF variant

Camera Power and Construction

Power Options
12 VDC ±25% or PoE
12 VDC Consumption
0.4 A, maximum 5 W
PoE Consumption
36 V to 57 V, 0.2 A to 0.15 A, maximum 6.5 W
PoE Standard
IEEE 802.3af, Class 3
Power Interface
5.5 mm coaxial power plug
Camera Material
Metal and plastic
Weather Protection
IP67

Camera Physical and Environmental Specifications

Camera Dimensions
Ø 109.9 × 103.6 mm (Ø 4.33 × 4.08 inches)
Package Dimensions
150 × 150 × 141 mm (5.9 × 5.9 × 5.6 inches)
Camera Weight
Approximately 380 g (0.84 lb.)
Packaged Weight
Approximately 600 g (1.32 lb.)
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Web Client Language
English and Ukrainian
Firmware Version Listed
V5.5.122

Optional Camera Accessories

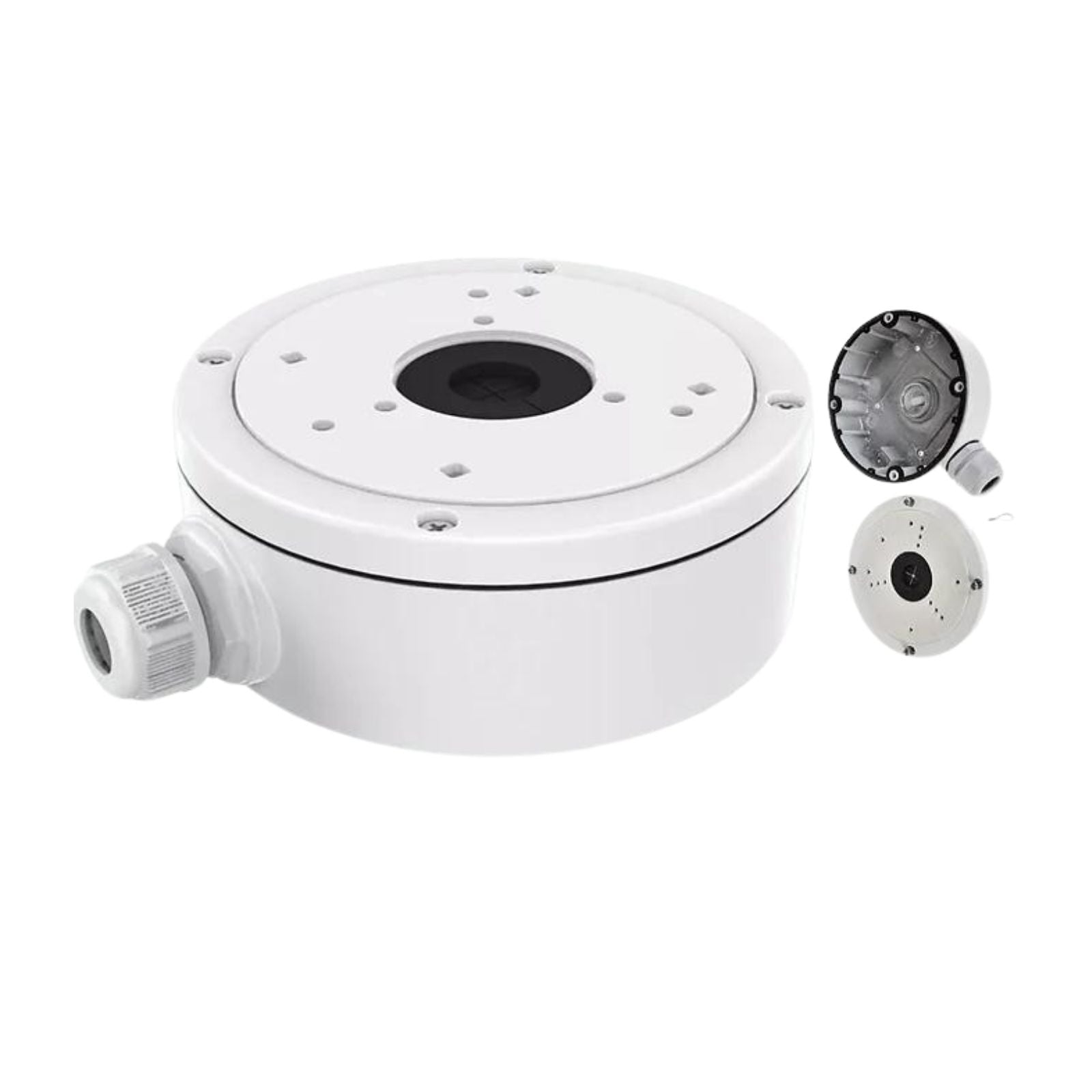

Junction Boxes
DS-1280ZJ-S and DS-1280ZJ-TR13
Wall-Mount Brackets
DS-220AZJ-130-WA, DS-220AZJ-145-WA and DS-1272ZJ-110-TRS
Pendant-Mount Bracket
DS-1271ZJ-110-TRS
Inclined-Ceiling Mount
DS-1281ZJ-S
Pole-Mount Brackets
DS-1275ZJ-SUS, DS-1475ZJ-SUS and DS-1275ZJ-S-SUS
Corner-Mount Brackets
DS-1476ZJ-SUS and DS-1276ZJ-SUS
Additional Mount Referenced
DS-1253ZJ-M, used with the DS-1272ZJ-110-TRS in one documented wall-mount configuration
Accessory Status
All accessories listed above are optional; the datasheets do not identify them as included items

Documented Installation Configurations

Corner Mounting
DS-1476ZJ-SUS + DS-220AZJ-145-WA; or DS-1276ZJ-SUS + DS-1281ZJ-S
Vertical-Pole Mounting
DS-1275ZJ-SUS + DS-1272ZJ-110-TRS; DS-1475ZJ-SUS + DS-220AZJ-130-WA; or DS-1275ZJ-S-SUS + DS-220AZJ-130-WA
Junction-Box Mounting
DS-1280ZJ-S or DS-1280ZJ-TR13
Wall Mounting
DS-220AZJ-130-WA; DS-1272ZJ-110-TRS + DS-1253ZJ-M; or DS-220AZJ-145-WA
Pendant Mounting
DS-1271ZJ-110-TRS
Inclined-Ceiling Mounting
DS-1281ZJ-S

Ideal Applications and Common Uses

  • Residential exterior surveillance around entrances, driveways, yards and side passages
  • Small retail stores requiring local recording and clear nighttime color video
  • Offices, warehouses and workshops with up to eight IP camera locations
  • Parking areas where human and vehicle classification can reduce irrelevant alerts
  • Reception areas and entrances where compatible facial-recognition functions may be used
  • Properties that need centralized recording with an HDD capacity of up to 16 TB
  • Locations where direct PoE camera connections can simplify cabling and installation
  • Projects requiring wall, ceiling, pole, corner or pendant camera mounting
  • Systems that need remote viewing and management through Hik-Connect
  • Applications requiring full-color video in very low-light conditions

Important Compatibility Notes

The NVR supports advanced functions including AcuSearch, AcuSeek, ANPR, VCA and camera-based intelligent analytics when the connected camera provides the corresponding capability. The DS-2CD1347G0-L(UF) datasheet lists basic motion detection, video-tampering alarms and exception events, but it does not state that this camera provides AcuSearch, AcuSeek, ANPR, facial recognition or camera-side human and vehicle classification.

The UF camera variant adds the built-in microphone, microSD card slot, environment-noise filtering and hardware-reset function. Verify the complete camera suffix before advertising those variant-specific features.

An internal SATA hard drive, microSD card and camera mounting accessories are not identified as included items in the supplied datasheets.

```
Buyer Before & After Protection

Buyer Before & After Protection

All orders are protected, in case your item gets lost, delayed or arrives damaged. We'll make it right, zero out of pocket cost.

Get advanced protection, and even faster delivery in case of an emergency if you use Shop Pay or Paypal at checkout.

Trusted and Tested Products

Trusted and Tested Products

Every product we've added to our catalog has been thoroughly tested for reliability, durability, and real-world performance, so you’re not gambling with your safety.

In order for a product to be added it has to pass: Environmental Testing (Heat and Cold), Tamper Resistance, and for advanced systems 99% Alert Accuracy.

secure payment

Secure Payment

Shop with confidence knowing your payments are secure and your information
