The iDS-7208HUHI-M1/S is an 8-channel DVR for analog video input, so it is designed to support eight direct analog camera connections. The datasheet also lists 4-channel IP video input expandable up to 12 channels total, and with Enhanced IP mode turned on it supports 8 IP channels up to 16 channels total. It also supports IP cameras up to 8 MP resolution, with Enhanced IP mode listing each added IP channel up to 4 Mbps. That makes it a practical option for buyers who want to start with analog cameras and still leave room to add IP cameras later.

This DVR supports HDTVI, AHD, CVI, CVBS, and IP video inputs. That matters because many buyers want to upgrade a recorder without replacing every camera and cable already installed. The datasheet also confirms support for H.265+, H.265, H.264+, and H.264 IP cameras, which gives more flexibility when mixing analog and IP technologies. For someone planning an upgrade, that can help reduce cost and make the transition much easier.

Yes, this is one of the main reasons buyers look at this model. The datasheet says deep learning-based Motion Detection 2.0 is enabled by default for all analog channels, and it can classify human and vehicle targets while greatly reducing false alarms caused by things like leaves and lights. It also supports quick search by object or event type, which helps make playback review faster after an alert. That means fewer nuisance notifications and less wasted time checking events that do not really matter.

Yes, the datasheet lists deep learning-based perimeter protection, including line crossing and intrusion detection. It specifically states human and vehicle analysis for perimeter protection on up to 4 channels. There is an important note in the datasheet that Motion Detection 2.0 and perimeter protection cannot be enabled at the same time, so turning on one makes the other unavailable. That is useful to know before setup, because it helps you choose the smart function that fits your site best.

The recorder supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. The datasheet lists encoding resolutions including 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF. It also states recording at up to 8 MP resolution, with frame rates such as 8 MP at 8 fps and 5 MP at 12 fps in the main stream. For buyers, that means the unit is built to handle higher-resolution recording while also using compression options that help manage storage more efficiently.

This model includes 1 SATA interface for internal storage. The datasheet states support for up to 10 TB capacity for each disk, which is also highlighted on the official product page. That gives buyers a decent amount of storage headroom in a compact 1U DVR, especially when paired with H.265 Pro+ compression. If you need longer retention without stepping into a larger multi-drive recorder, that can be a very practical advantage.

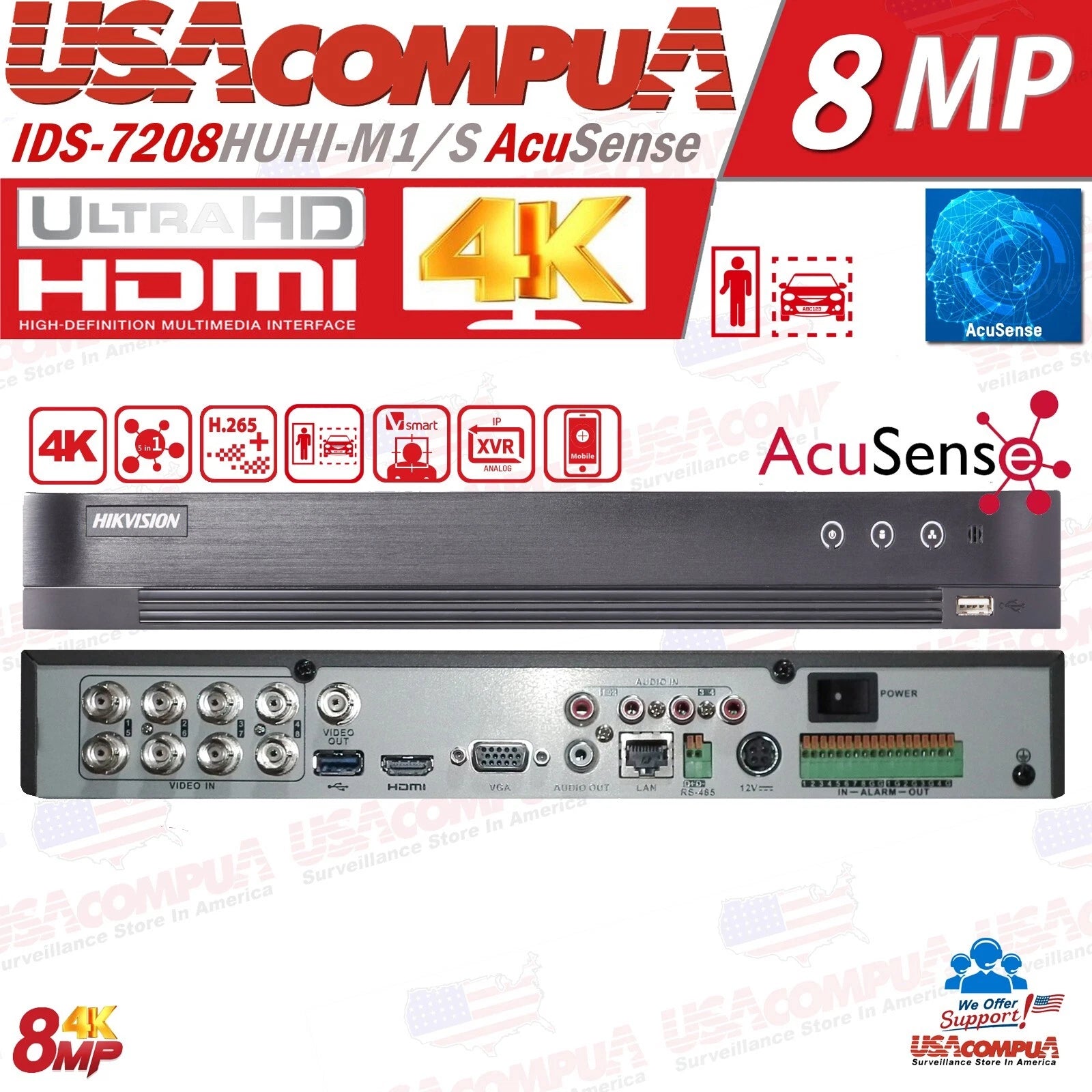

The iDS-7208HUHI-M1/S includes both HDMI and VGA outputs, and the datasheet says they support simultaneous output. The HDMI output supports up to 4K at 3840 × 2160 at 30 Hz, while the VGA output supports up to 1920 × 1080 at 60 Hz. It also includes a CVBS output through BNC. That gives buyers flexibility when connecting modern high-resolution displays as well as more traditional monitor setups.

Yes, audio support is included. The datasheet lists 1 audio output through RCA, 1 audio input through RCA, and 1-channel two-way audio using the first audio input. It also highlights audio via coaxial cable as one of the key features. For buyers who want more context around events than video alone can provide, that makes the system more useful in real-world monitoring situations.

Yes, the datasheet lists Hik-Connect and DDNS for easy network management. It also includes network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. The recorder has 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface and supports up to 64 remote connections. That means it is designed for buyers who want practical remote monitoring and network access without moving to a much larger recorder platform.

This recorder uses 12 VDC power and has a power consumption rating of ≤ 10 W. The working temperature range is -10 °C to +55 °C, and working humidity is listed at 10% to 90%. Its dimensions are 315 × 242 × 45 mm, and the weight is listed as ≤ 2 kg or 4.4 lb. Those details matter because they help you plan installation space, power requirements, and whether the DVR fits the environment where it will be used.
