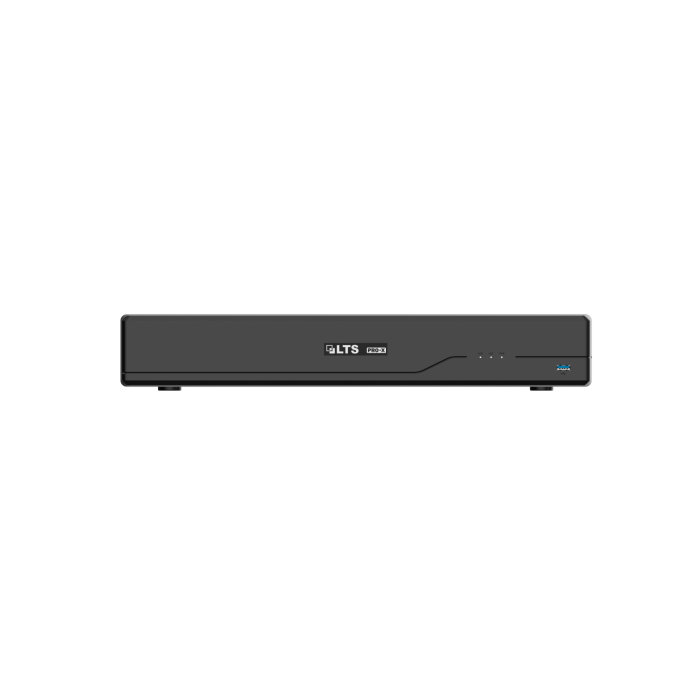

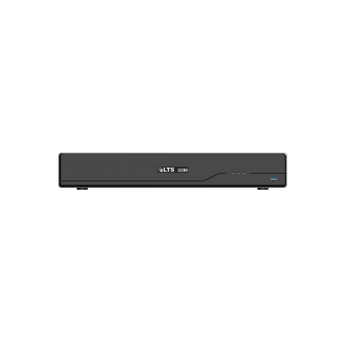

LXN9432D-P24 Lts 32ch IP PoE Recorder w/ HDD <h1 Pro-X 32-Channel (24 PoE) 4K
LXN9432D-P24 Lts 32ch IP PoE Recorder w/ HDD <h1 Pro-X 32-Channel (24 PoE) 4K
Human and Vehicle Detection
Out of stock
Description
Description
LXN9432D-P24 32CH 4 HDD Pro AI NVR with 24CH PoE
As your surveillance system grows, so do the challenges of managing multiple cameras, maintaining video quality, and finding critical footage quickly. The LXN9432D-P24 is built to solve those challenges by combining powerful AI analytics, 32-channel recording, and 24 integrated PoE ports into one professional-grade NVR. Whether you're protecting a business, warehouse, office, or large facility, this recorder delivers the performance, intelligence, and reliability needed to keep your property secure around the clock.
Instead of simply storing video, this NVR helps you monitor smarter, respond faster, and manage your entire surveillance system with greater efficiency. With support for up to 32MP recording, advanced AI functions, and high-capacity storage, you gain complete confidence that every important event is captured with exceptional clarity.
Why Buyers Choose the LXN9432D-P24
Connect and manage up to 32 IP cameras from one centralized recorder, making it ideal for expanding businesses without replacing your surveillance infrastructure.
Power and connect cameras through a single Ethernet cable, reducing installation time, lowering wiring costs, and simplifying large deployments.
Capture exceptionally detailed video that makes identifying faces, vehicles, and important events significantly easier when reviewing footage.
Face Recognition, Face Detection, Motion Detection 2.0, VCA, People Counting, Heat Mapping, License Plate Recognition, and X-Search help you locate important events faster while reducing time spent reviewing recordings.
Monitor multiple displays simultaneously with crystal-clear 4K video, giving security personnel greater visibility and operational flexibility.
Reduce storage consumption and network bandwidth without sacrificing image quality, allowing longer recording retention using available hard drive space.
Support for four SATA hard drives with up to 16TB each provides ample storage for continuous recording in demanding environments.
Configure, monitor, retrieve information, and batch-upgrade connected IP cameras remotely, saving valuable maintenance time.
Support for ONVIF and RTSP protocols allows integration with a wide variety of compatible IP cameras, giving you greater flexibility when expanding your surveillance system.
What This Helps You Avoid
Large surveillance systems often become difficult to manage. Important incidents can be buried within hours of footage, while limited storage, complicated wiring, and outdated recording technology make investigations slow and frustrating.
The LXN9432D-P24 is designed to eliminate those frustrations. Built-in AI helps identify important events faster, Smart H.265 compression maximizes storage efficiency, integrated PoE simplifies installation, and support for ultra-high-resolution recording ensures every important detail is preserved.
Instead of spending valuable time searching for footage or managing multiple devices, you'll have a centralized security platform that helps you monitor smarter, react quicker, and protect your property with greater confidence every day.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LXN9432D-P24 32CH 4 HDD Pro AI NVR with 24CH PoE
The LXN9432D-P24 is a professional-grade 32-channel AI Network Video Recorder built for demanding surveillance applications. Featuring 24 integrated PoE ports, support for recording resolutions up to 32MP, and advanced AI analytics, it delivers reliable performance for commercial and enterprise security systems. Dual independent 4K HDMI outputs, intelligent video management, and high-capacity storage support make it an ideal solution for large-scale IP camera deployments.
Key Features
- Supports up to 32 IP camera channels
- 24 built-in PoE ports (Ports 1–8 support S-PoE up to 800m transmission)
- Records at resolutions up to 32MP
- Smart H.265/H.264 video compression
- Dual independent 4K HDMI outputs with VGA outputs
- AI camera compatibility including Face Detection, VCA, LPR, Heat Map, People Counting, and Object Monitoring
- Built-in AI features including Face Recognition, Motion Detection 2.0, VCA, and X-Search Technology
- Supports remote IPC configuration, monitoring, and batch upgrades
- Compatible with ONVIF and RTSP cameras
Video & Recording
Video Outputs
AI Functions
Network & PoE
Storage & Interfaces
General
Accessories
The manufacturer does not specify any included accessories or package contents in the datasheet.
Ideal Applications
- Commercial surveillance systems
- Office buildings
- Retail stores and shopping malls
- Warehouses and logistics facilities
- Industrial and manufacturing sites
- Educational institutions
- Healthcare facilities
- Hotels and hospitality venues
- Government buildings
- Large-scale enterprise IP camera installations
Downloads
Frequently Asked Questions
The recorder supports up to 32 IP camera channels, making it suitable for medium to large surveillance installations.
The LXN9432D-P24 supports recording at resolutions up to 32MP, along with 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, and CIF.
Yes. It features 24 built-in PoE network ports. Ports 1–8 support S-PoE for transmission distances of up to 800 meters and comply with the IEEE 802.3af/at standard.
The recorder supports Smart Encoding, H.265, H.264, H.264H, H.264B, and MJPEG to help optimize storage and bandwidth usage.
The recorder supports AI features including Face Recognition, Face Detection, Motion Detection 2.0, Video Content Analysis (VCA), License Plate Recognition, People Counting, Heat Map, Object Monitoring, Perimeter Protection, and X-Search Technology.
The NVR includes 4 SATA interfaces and supports hard drives up to 16TB each, allowing for high-capacity video storage.
The recorder provides two independent HDMI outputs with resolutions up to 4K (3840 × 2160) along with VGA outputs supporting resolutions up to 1920 × 1080.
Yes. The recorder supports third-party IP cameras through the ONVIF and RTSP protocols.
Yes. It supports remote configuration and management of IP cameras, including parameter configuration, device information retrieval, and batch firmware upgrades.
The recorder operates on a 100–240 VAC, 50/60Hz power supply. It consumes less than 13W (excluding hard drives) and provides a total 250W PoE power budget with up to 25.5W per PoE port.
