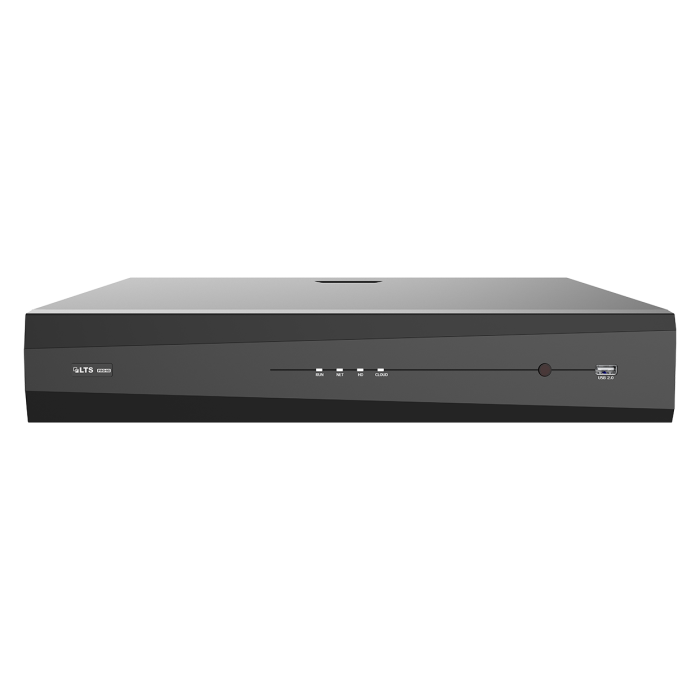

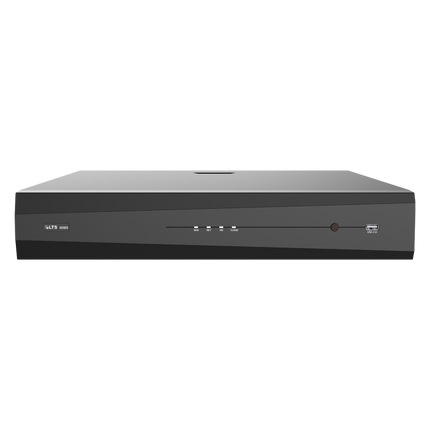

VSN8432-P16 32-Channel 4K Network Video Recorder with 16-Port PoE & RAID Support
VSN8432-P16 32-Channel 4K Network Video Recorder with 16-Port PoE & RAID Support
Human and Vehicle Detection
Out of stock
Description
Description
VSN8432-P16 32-Channel Network Video Recorder with 16-Port PoE & 4K HDMI
As your surveillance system grows, you need an NVR that keeps up without sacrificing performance or reliability. The VSN8432-P16 is built for demanding installations, supporting up to 32 IP cameras, integrated 16-port PoE, 12MP recording, and enterprise-grade RAID protection. Whether you're securing a commercial building, warehouse, school, or multi-site business, this recorder delivers the capacity, speed, and intelligent features needed to protect what matters most.
With Ultra H.265 compression, 320 Mbps throughput, AI camera compatibility, and support for up to 40TB of storage, the VSN8432-P16 gives you a professional surveillance platform that grows with your security needs while reducing storage costs and simplifying installation.
Why Buyers Choose This Model
What This Helps You Avoid
Many surveillance systems begin with only a few cameras but quickly outgrow their recorder. Suddenly there aren't enough channels, storage fills up too quickly, and reviewing important footage becomes slow and frustrating. Every upgrade means additional hardware, more installation time, and higher costs.
The VSN8432-P16 is designed to eliminate those limitations before they become expensive problems. Its 32-channel capacity, integrated 16-port PoE switch, RAID storage protection, and support for high-resolution cameras provide the flexibility needed for expanding security systems without constantly replacing equipment.
Instead of worrying about storage limitations, complicated installations, or missed recordings during network interruptions, you gain a professional surveillance platform built to deliver reliable recording, simplified deployment, and dependable performance every day.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Choose your option
LXN9432D-P24 Lts 32ch IP PoE Recorder w/ HDD
Out of stock
Choose your option
Hikvision DS-7732NXI-K4/16P 32-Channel 4K AcuSense PoE Network Video Recorder
In stock
Choose your option
Technical Specifications
VSN8432-P16 32-Channel 4K Network Video Recorder with 16-Port PoE & RAID Support
The LTS VSN8432 is a Network Video Recorder. Highlights include support Ultra H.265/H.265/H.264 video formats 32-channel input, plug & Play with 16 independent PoE network interfaces and support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution.
Ideal applications
- Centralized recording and playback for multi-camera security systems
- Homes, small businesses and retail sites
- Plug & play installations with PoE cameras
Key Features
- Support Ultra H.265/H.265/H.264 video formats 32-channel input
- Plug & Play with 16 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 4 SATA HDDs, Up to 10TB for each HDD
- Support RAID 1, 5
Specifications
Video/Audio Input
Network
Video/Audio Output
Snapshot
Decoding
Hard Disk
Smart
General Alarm
External Interface
General
Certification
Downloads
Frequently Asked Questions
Yes. The VSN8432-P16 supports up to 32 IP camera channels, making it suitable for medium to large surveillance systems.
The recorder supports Ultra H.265, H.265, and H.264 video compression formats for efficient storage and bandwidth usage.
The VSN8432-P16 supports recording at resolutions up to 12MP, along with 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, and CIF.
Yes. It features 16 independent Plug & Play PoE ports that support IEEE 802.3af/at standards, with up to 30W per port and a total PoE power budget of 150W.
The recorder includes four SATA drive bays and supports hard drives up to 10TB each, providing a maximum raw storage capacity of 40TB.
Yes. The recorder supports both RAID 1 and RAID 5 configurations to improve storage reliability and data protection.
The recorder provides one HDMI output supporting up to 4K (3840 × 2160) resolution and one VGA output. HDMI and VGA can operate independently.
Yes. The VSN8432-P16 supports ONVIF Profile S, Profile G, Profile T compliant cameras as well as RTSP protocol devices.
When used with compatible cameras, the recorder supports features including Face Detection, Face Comparison, Intrusion Detection, Cross Line Detection, Enter/Leave Area Detection, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Vehicle Search, Behavior Search, and People Counting.
The VSN8432-P16 supports ANR (Automatic Network Replenishment) technology, which enhances storage reliability by helping preserve recordings when the network connection is interrupted.
