VSN8432-P16
VSN8432-P16
Human and Vehicle Detection
Out of stock
Description
Description

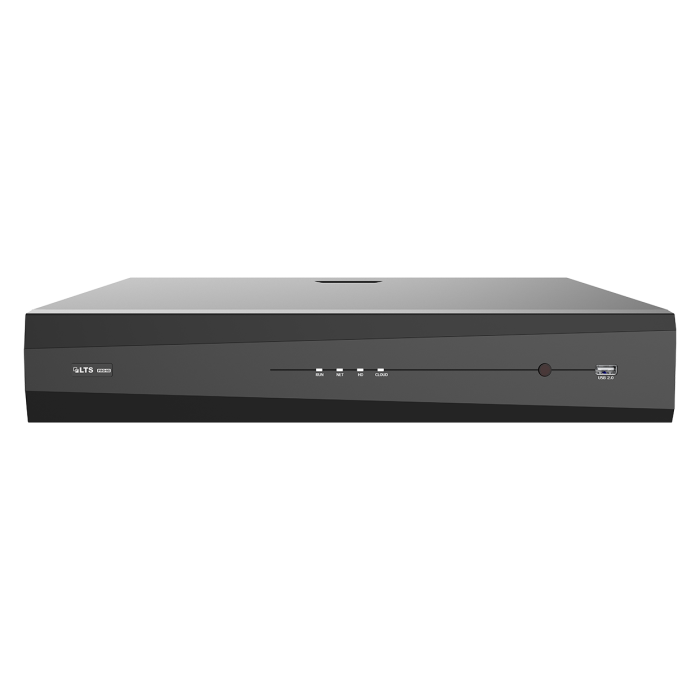

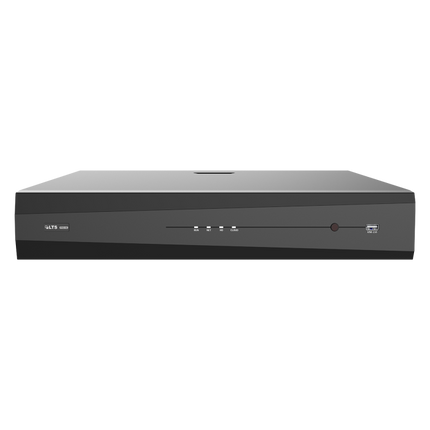

VSN8432-P16 32-Channel Network Video Recorder with 16-Port PoE
Managing dozens of security cameras shouldn't mean dealing with complicated installations or unreliable recording. The VSN8432-P16 is designed to simplify large surveillance deployments with 32-channel recording, 16 built-in PoE ports, and support for up to 12MP IP cameras. Whether you're protecting a business, warehouse, school, or commercial property, this recorder delivers dependable performance, intelligent storage management, and crystal-clear 4K video output. With advanced compression, RAID protection, and broad ONVIF compatibility, you can spend less time managing your system and more time focusing on what matters most.
Why Buyers Choose This Model
32-Channel Recording Capacity
Monitor more areas from a single recorder, giving you the flexibility to expand your surveillance system without replacing your NVR.
16 Built-In PoE Ports
Connect compatible cameras with a single Ethernet cable for both power and data, making installation faster, cleaner, and more cost-effective.
Ultra H.265 Video Compression
Store more footage while reducing bandwidth consumption, helping lower storage costs without sacrificing video quality.
Supports Up to 12MP Recording
Capture exceptionally detailed footage, making it easier to identify people, vehicles, and important events when reviewing recordings.
4K HDMI Output
Review live video and recorded footage in ultra-high definition for improved visibility and greater detail during investigations.
Supports ONVIF & RTSP Cameras
Enjoy greater flexibility when building or upgrading your surveillance system by integrating compatible third-party IP cameras.
RAID 1 & RAID 5 Protection
Protect valuable surveillance footage with enhanced storage redundancy, reducing the risk of data loss caused by hard drive failure.
Up to 40TB Total Storage
Store weeks or even months of recordings by installing up to four hard drives with capacities of up to 10TB each.
Smart Analytics Support
Work with compatible cameras to quickly locate important events using intelligent features such as face detection, intrusion detection, people counting, and vehicle search.
ANR Recording Reliability
Maintain greater confidence in your surveillance system with Automatic Network Replenishment technology that enhances recording reliability during network interruptions.
What This Helps You Avoid
Security systems are only valuable when they capture the moments that matter. Missed recordings, complicated wiring, storage limitations, or incompatible devices can leave critical gaps in your surveillance coverage—often when you need evidence the most.
The VSN8432-P16 helps eliminate those concerns by combining high-capacity recording, integrated PoE connectivity, reliable RAID storage, advanced compression, and intelligent compatibility into one professional recorder. Instead of worrying about whether your system can keep up with your growing security needs, you gain the confidence of a scalable solution designed to record more, store more, and simplify everyday management. Its support for intelligent analytics and ANR technology further enhances operational reliability, helping you build a surveillance system you can trust.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Video & Audio Input
Network Performance
Video Output
Recording & Playback
Storage
Smart Functions
Interfaces
Power & Physical
Downloads
Frequently Asked Questions
The recorder supports up to 32 IP camera channels, making it suitable for medium to large surveillance systems. :contentReference[oaicite:0]{index=0}
Yes. The VSN8432-P16 features 16 independent Plug & Play PoE ports that support IEEE 802.3af/at standards, with up to 30W per port and 150W total PoE power. :contentReference[oaicite:1]{index=1} :contentReference[oaicite:2]{index=2}
The recorder supports Ultra H.265, H.265, and H.264 video compression formats to improve storage efficiency and bandwidth usage. :contentReference[oaicite:3]{index=3} :contentReference[oaicite:4]{index=4}
The VSN8432-P16 supports recording at resolutions up to 12 Megapixels (12MP). :contentReference[oaicite:5]{index=5} :contentReference[oaicite:6]{index=6}
The NVR includes 4 SATA hard drive bays, supporting drives up to 10TB each, for a maximum raw storage capacity of 40TB. It also supports RAID 1 and RAID 5. :contentReference[oaicite:7]{index=7} :contentReference[oaicite:8]{index=8}
Yes. The HDMI output supports resolutions up to 3840 × 2160 (4K) at 30Hz. The recorder also provides an independent VGA output. :contentReference[oaicite:9]{index=9} :contentReference[oaicite:10]{index=10}
Yes. The recorder supports cameras that conform to ONVIF Profiles S, G, and T, as well as devices using the RTSP protocol. :contentReference[oaicite:11]{index=11}
When used with compatible cameras, the recorder supports analytics including Face Detection, Face Comparison, Intrusion Detection, Cross Line Detection, People Counting, Vehicle Search, Auto Tracking, Object Left Behind, and Object Removed Detection. :contentReference[oaicite:12]{index=12}
The VSN8432-P16 provides 16 alarm inputs and 4 alarm outputs, along with an RS485 interface for additional integration. :contentReference[oaicite:13]{index=13}
The recorder supports ANR (Automatic Network Replenishment), a technology designed to improve storage reliability when the network connection is disconnected. :contentReference[oaicite:14]{index=14}
