OCB-T4216I2-16P Oem 16ch IP PoE Recorder w/ HDD 16 CH 5MP NVR
OCB-T4216I2-16P Oem 16ch IP PoE Recorder w/ HDD 16 CH 5MP NVR
Out of stock
Description
Description

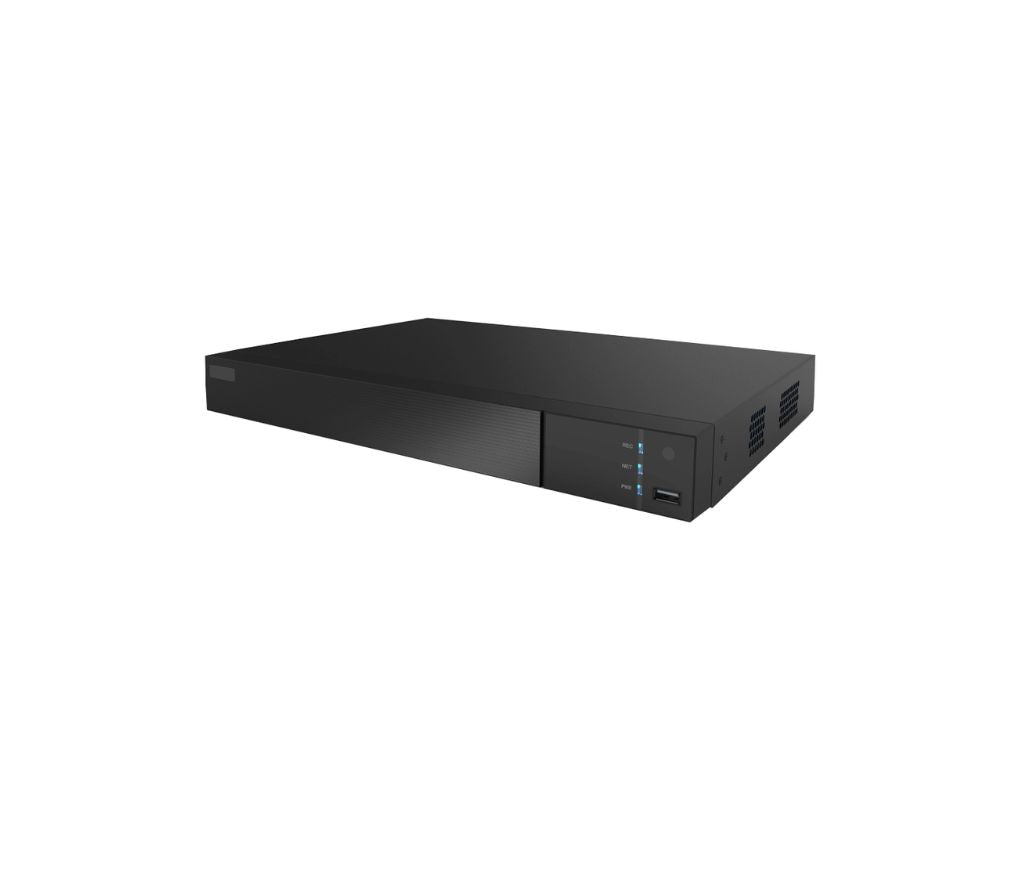

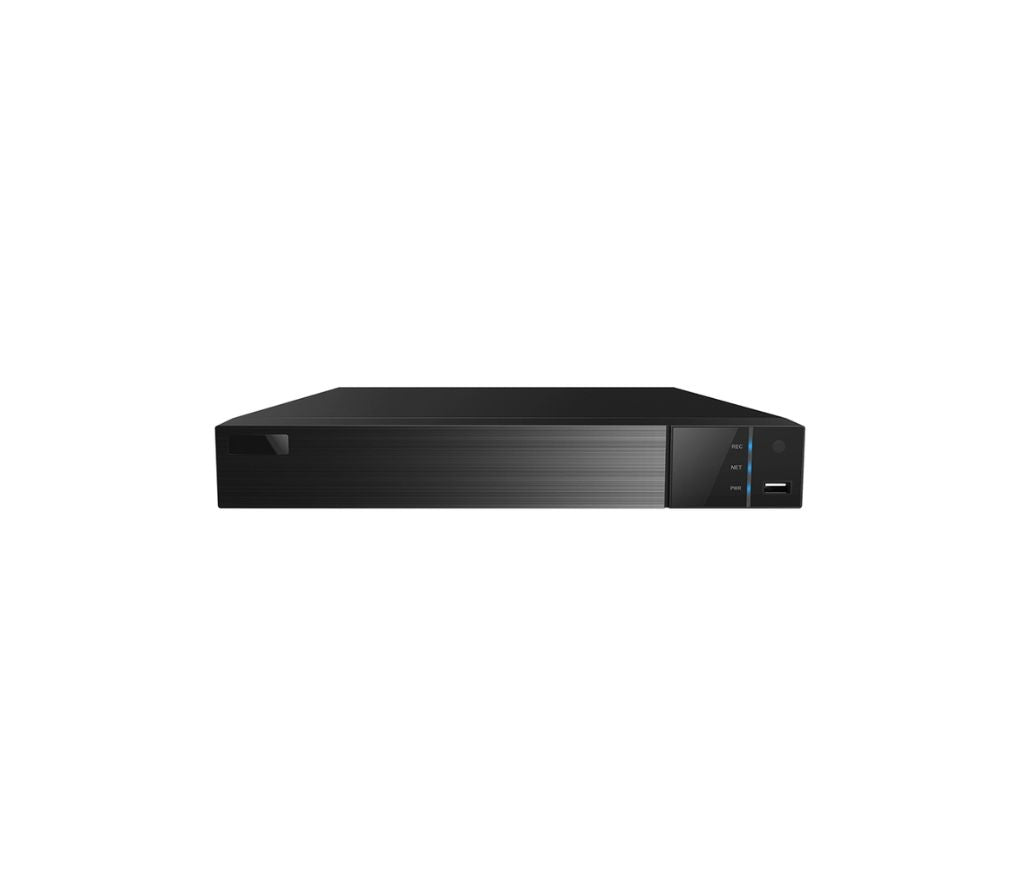

TVT TD-3116B2-16P 16-Channel PoE NVR
What happens when your surveillance system grows and your recorder can no longer keep up? The TVT TD-3116B2-16P gives you room for up to 16 IP cameras, built-in PoE connectivity, high-resolution camera support and 4K display output in one centralized recorder.
Instead of building a system around unnecessary complexity, you get 16 integrated PoE ports, flexible recording options, remote viewing and expandable hard drive storage designed to keep your surveillance footage organized and accessible.
For homes, businesses and larger security installations, it gives you the capacity to see more, record more and manage your cameras from one system.
Why Buyers Choose This Model
A surveillance recorder should do more than simply store video. It should make it easier to build a capable camera system today without immediately limiting what you can add tomorrow. The TD-3116B2-16P combines camera capacity, PoE connectivity, high-resolution support, storage expansion and remote access in one platform.
16 IP Camera Channels — Cover More Areas From One Recorder
Connect and manage up to 16 IP cameras from one NVR. That gives you the flexibility to monitor multiple entrances, parking areas, hallways, offices, exterior zones or other important locations without needing a separate recorder for every part of the property.
16 Built-In PoE Ports — Simplify Your Camera Connections
The NVR includes 16 RJ45 PoE ports with IEEE 802.3af support, allowing compatible PoE cameras to connect directly to the recorder. This helps create a cleaner, more centralized installation while reducing the amount of additional network equipment your surveillance system may require.
Up to 8MP Camera Support — Preserve the Detail That Matters
Why invest in high-resolution cameras if your recorder becomes the limitation? The TD-3116B2-16P supports IP video resolutions up to 8MP, giving you the ability to use higher-resolution cameras when greater image detail is important.
4K HDMI Output — Get More From Your Security Monitor
With HDMI output up to 3840 × 2160, the recorder can display surveillance video on a compatible 4K monitor. That gives you a high-resolution viewing environment when reviewing cameras, monitoring multiple areas or investigating recorded footage.
16-Channel Simultaneous Playback — Review More Cameras Together
When something happens, checking cameras one at a time can make an investigation harder. The TD-3116B2-16P supports simultaneous playback of up to 16 channels, helping you review activity across multiple camera angles and better understand how an event unfolded.
H.265S / H.265+ / H.265 / H.264 — Flexible Video Compression
Support for multiple compression formats gives your surveillance system greater flexibility when balancing video quality, storage requirements and network transmission.
Dual SATA Storage — Build the Recording Capacity You Need
The recorder includes two SATA 3.0 interfaces with support for up to 8TB per hard drive. That gives you the ability to configure substantial local surveillance storage instead of being restricted to a single-drive recorder.
112Mbps Incoming Bandwidth — Built for Multi-Camera Systems
With 112Mbps of listed incoming bandwidth, the NVR is designed to handle network video from a multi-camera surveillance installation while keeping your cameras centralized through one recording platform.
Remote Viewing — Check Your System Without Being in Front of the NVR
The recorder supports remote surveillance through compatible iOS and Android smartphones, along with Web Client and CMS access. Whether you are away from the property or simply in another location, your surveillance system does not have to be useful only when you are standing in front of the recorder.
Smart Search — Spend Less Time Hunting Through Footage
Search options include time slice, time, event, tag and smart search. When you need to investigate an incident, these tools can make it easier to narrow down the footage you need instead of manually reviewing long periods of video.
Multiple Recording Modes — Record Around the Needs of Your Property
The TD-3116B2-16P supports manual, timed, motion, sensor, POS and AI recording modes, giving you more flexibility in determining how and when surveillance footage is recorded.
Video Content Analytics Support — Make Your Surveillance System More Useful
The NVR supports multiple VCA events including region intrusion, tripwire, object abandoned or missing and video exception events. Instead of relying only on continuous video, compatible intelligent events can help make important activity easier to identify.
LPR Plate Recognition Support — Add More Capability to Vehicle Monitoring
The recorder supports LPR plate recognition, providing additional capability for surveillance applications where vehicle and license plate information may be important.
POS Information Overlay — Connect Video With Transaction Activity
For applicable commercial environments, the recorder supports POS information overlay on live view and playback. This can help businesses compare transaction information with recorded video when reviewing activity around a point-of-sale location.
USB & Network Backup — Make Important Footage Easier to Preserve
When footage matters, you want a practical way to save it. The TD-3116B2-16P supports local backup to USB storage as well as network backup, giving you multiple options for preserving important recordings.
Pentaplex Operation — Keep Working While the System Records
The NVR supports preview, recording, playback, backup and remote access functions, allowing the surveillance system to handle multiple essential operations from the same recorder.
What This Helps You Avoid
Imagine having cameras around your property but discovering after an incident that your recorder does not have enough channels, your storage options are too limited or reviewing footage takes longer than it should.
Maybe you want to add cameras later, but the recorder is already full. Or perhaps you have higher-resolution cameras, yet the recording system you chose was never designed to support them properly. Those limitations can turn what should be a long-term surveillance system into another piece of equipment you have to replace.
The TD-3116B2-16P gives you up to 16 camera channels, 16 integrated PoE ports, support for resolutions up to 8MP, two HDD bays, 4K output and remote monitoring capabilities in one NVR. Instead of building around immediate limitations, you can start with a platform designed to handle a more complete multi-camera surveillance system.
The result is a system that is easier to centralize, easier to review and better prepared for the number of cameras your property may actually need.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
TVT TD-3116B2-16P 16-Channel PoE NVR with 8MP Support & 4K Output
The TVT TD-3116B2-16P is a 16-channel network video recorder designed for IP surveillance systems that need centralized recording, built-in PoE connectivity, high-resolution video support, and convenient remote access. With 16 integrated PoE ports, support for resolutions up to 8MP, 4K HDMI output, dual SATA storage bays, simultaneous 16-channel playback, and mobile monitoring, it provides a practical all-in-one recording platform for small to larger surveillance installations.
Key Features
- 16-channel IP camera input for multi-camera surveillance systems.
- 16 integrated PoE network ports for direct IPC connection to the NVR.
- Supports 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF IP video resolutions.
- 4K Ultra HD HDMI output up to 3840 × 2160.
- Supports H.265S, H.265+, H.265 and H.264 video compression.
- 16-channel simultaneous playback.
- Dual-stream recording for local high-definition storage and efficient remote transmission.
- Recording modes include manual, timed, motion, sensor, POS and AI recording.
- Supports multiple VCA events including object abandoned/missing, region intrusion, tripwire and video exception.
- Supports POS information overlay on live view and playback.
- Supports time slice, time, event, tag and smart search.
- Two SATA 3.0 interfaces supporting up to 8TB per HDD.
- 112Mbps incoming and 112Mbps outgoing bandwidth.
- Remote access through Web Client, CMS and compatible mobile devices.
- Supports smartphones using iOS and Android.
- Supports NAT and QR code scanning for mobile setup.
- LPR plate recognition support.
- Supports up to 10 client users.
- USB and network backup support.
- CE and FCC certified.
General
Video
Audio
Recording
Playback & Search
Decoding Capability
Alarm & Intelligent Functions
Network
Mobile Surveillance
Storage
Backup
Ports
PoE
Power
Physical Specifications
Operating Environment & Compliance
Additional System Features
Accessories Found
- Remote Controller: Optional
The datasheet does not explicitly identify any other accessories as included with the NVR.
Ideal Applications & Common Uses
- Home Security: Centralized recording for multi-camera residential surveillance systems.
- Retail & Commercial: PoE camera recording for stores, offices and other commercial properties.
- Financial Facilities: Surveillance applications requiring continuous high-resolution recording.
- Enterprise Security: Up to 16 IP cameras with centralized management and remote viewing.
- Transportation: Multi-camera video surveillance for transportation-related environments.
- Government Facilities: Network surveillance deployments requiring centralized recording and management.
- 16-Camera PoE Systems: Installations where cameras can connect directly to the NVR through its 16 integrated PoE ports.
- Remote-Monitoring Systems: Applications requiring Web Client, CMS, iOS or Android access.
All pictures and specifications are for reference only and are subject to change without prior notice.
Downloads
Frequently Asked Questions
The TD-3116B2-16P supports up to 16 IP camera inputs. It also includes 16 built-in PoE network ports for direct connection of compatible PoE IP cameras to the NVR.
The NVR supports IP camera resolutions up to 8MP. Supported resolutions listed in the datasheet include 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF.
Yes. The recorder has 16 RJ45 100Mbps PoE ports and supports the IEEE 802.3af PoE standard. The datasheet specifies a maximum PoE output power of ≤150W.
Yes. The TD-3116B2-16P supports 4K Ultra HD HDMI output with a maximum listed resolution of 3840 × 2160. It also provides VGA output, and the datasheet states that HDMI and VGA output the same video source.
The NVR has two SATA 3.0 hard drive interfaces and supports a maximum capacity of 8TB per HDD.
The supplied datasheet does not state that a hard drive is included. It only specifies that the recorder has two SATA 3.0 interfaces with support for up to 8TB per HDD.
Yes. The datasheet lists mobile surveillance support for iOS and Android devices. It also supports NAT functionality and QR code scanning by mobile phones for supported remote access setup.
The TD-3116B2-16P supports H.265S, H.265+, H.265 and H.264 video compression formats.
The recorder supports simultaneous playback of up to 16 channels. The datasheet also lists decoding capability of 1 channel at 8MP or 4 channels at 1080P.
Yes. ONVIF is listed among the network protocols supported by the TD-3116B2-16P. The datasheet does not specify an ONVIF profile or version, so compatibility with a particular third-party camera should be verified separately.
