DS-7116HGHI-K1 Hikvision 16ch CCTV Recorder w/ HDD 16 CH 1080P Lite Mini 1U
DS-7116HGHI-K1 Hikvision 16ch CCTV Recorder w/ HDD 16 CH 1080P Lite Mini 1U
Out of stock
Description
Description

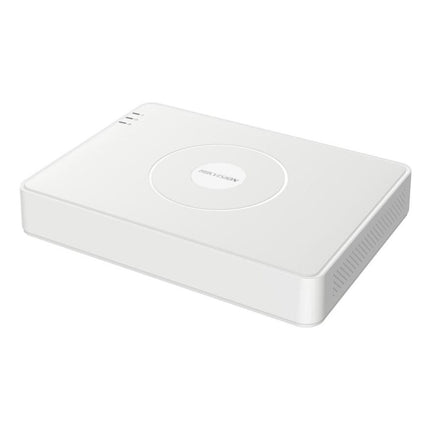

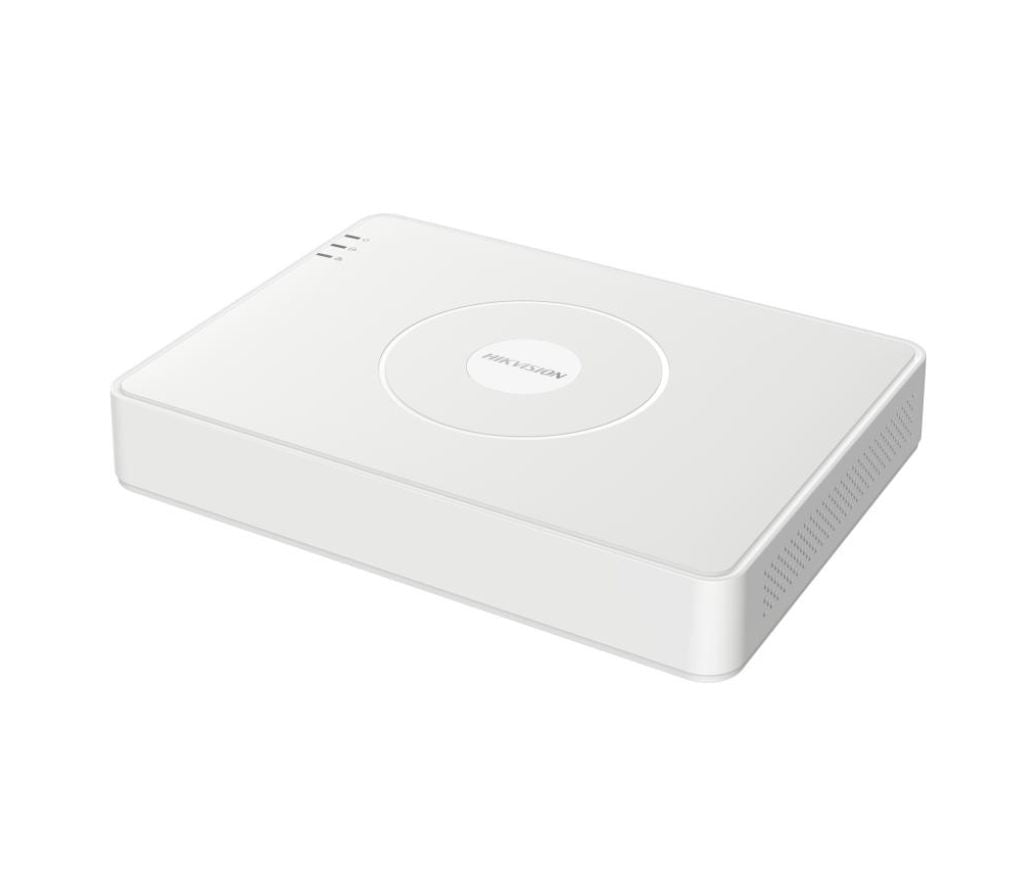

Hikvision DS-7116HGHI-K1 16-Channel Turbo HD DVR
What happens when your recorder captures hours of movement, but finding the moment that matters still takes too long?
The Hikvision DS-7116HGHI-K1 combines 16-channel analog recording with intelligent human and vehicle classification, helping you focus on meaningful activity instead of every moving leaf or changing light.
With flexible camera compatibility, efficient H.265 Pro+ compression, and support for up to 10 TB of storage, it gives homes and businesses a practical way to manage more cameras without making surveillance more complicated.
The result is a system that is easier to monitor, search, and expand as your security needs evolve.
Why Buyers Choose This Model
Motion Detection 2.0 — Spend Less Time on Meaningless Alerts
Deep learning-based detection distinguishes people and vehicles from common distractions such as leaves and changing lights. This helps reduce false alarms so you can give more attention to activity that may actually require a response.
Quick Search by Object or Event — Find Important Footage Faster
Instead of manually reviewing long stretches of video, you can search recordings by object or event type. When you need to understand what happened, the relevant footage is easier to locate.
16 Analog Camera Inputs — Cover More of the Property
Connect up to 16 analog cameras so entrances, parking areas, hallways, registers, storage rooms, and other important locations can be monitored from one recorder.
Flexible Hybrid Compatibility — Keep More of What You Already Have
Support for HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras gives you greater flexibility when replacing an older recorder or combining camera technologies. This can make upgrading less restrictive when existing coaxial cameras and cabling are already installed.
Expandable IP Camera Support — Adapt as Your Security Needs Change
The recorder includes two IP camera channels and can be configured for up to 18 IP camera inputs with resolutions up to 5 MP. This gives you room to introduce compatible network cameras as the property or system changes.
H.265 Pro+ Compression — Use Storage More Efficiently
H.265 Pro+ improves encoding efficiency and reduces video-storage requirements. You gain a more efficient recording system without relying on older, less storage-conscious compression alone.
Up to 10 TB of Storage — Keep More Recorded History
One SATA interface supports a hard drive with up to 10 TB of capacity. The additional storage potential can provide more recording flexibility before older footage must be overwritten, depending on the cameras and recording settings used.
1080p Lite Recording — Maintain Useful Visual Detail
The DVR supports 1080p Lite across all channels, with encoding up to 15 frames per second. This helps preserve useful recorded detail while balancing bandwidth and storage consumption.
Audio over Coax — Capture More Context
Support for audio through coaxial cable on up to 16 channels allows compatible cameras to carry video and audio through the coaxial connection. When visual footage does not tell the entire story, recorded sound may provide additional context.
16-Channel Synchronous Playback — Review Multiple Areas Together
Play back as many as 16 channels simultaneously to compare activity across different areas. This can make it easier to follow a person or vehicle as it moves through the property.
Simultaneous HDMI and VGA Output — Monitor from Two Displays
HDMI and VGA can operate simultaneously at resolutions up to 1920 × 1080 at 60 Hz. This provides added flexibility when setting up local viewing stations or connecting more than one monitor.
Hik-Connect and Network Support — Simplify System Management
Hik-Connect, DDNS, HTTPS, and other supported network protocols make it easier to integrate the recorder into a connected surveillance environment and manage network access.
Long-Distance HDTVI Transmission — Protect Larger Properties
Support for a 720p HDTVI signal over distances of up to 1200 meters provides more installation flexibility when cameras must be positioned far from the recorder.
What This Helps You Avoid
A basic recorder may capture video, but what happens when constant false alerts cause you to stop checking notifications or when finding one incident requires searching through hours of footage?
That delay can turn recorded evidence into something frustrating to locate precisely when you need it most. Limited camera compatibility can also make a future upgrade more expensive by forcing you to replace equipment that may still be useful.
The DS-7116HGHI-K1 addresses these problems with human and vehicle classification, object- and event-based search, multi-format camera compatibility, and efficient compression. You gain a recorder designed to make reviewing activity faster while providing greater flexibility for your existing and future cameras.
Instead of settling for a system that simply records everything, you get a more focused surveillance experience that helps you identify meaningful activity and retrieve important footage with less unnecessary effort.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7116HGHI-K1 16-Channel Turbo HD DVR
The Hikvision DS-7116HGHI-K1 is a 16-channel Turbo HD DVR designed for upgrading or building a flexible analog surveillance system. It supports HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras, making it easier to combine different camera technologies in one recorder.
Deep learning-based Motion Detection 2.0 distinguishes people and vehicles from distractions such as moving leaves and changing lights, helping reduce unnecessary alerts. H.265 Pro+ compression, smart search, 16-channel synchronous playback, and support for a hard drive of up to 10 TB make it a practical recording solution for homes and businesses.
Key Features
- 16 analog BNC camera inputs
- Up to 18 IP camera inputs with resolutions up to 5 MP
- Deep learning-based Motion Detection 2.0 for human and vehicle classification
- Quick recording search by object or event type
- H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression
- Supports HDTVI, AHD, HDCVI, CVBS, and compatible IP camera inputs
- Audio transmission through coaxial cable on up to 16 channels
- Up to 1080p Lite at 15 fps encoding capability
- Supports 1080p Lite recording across all channels
- 16-channel synchronous playback
- HDMI and VGA simultaneous video output
- One SATA interface supporting a hard drive with up to 10 TB capacity
- Hik-Connect and DDNS support for convenient network management
- Up to 1200 m transmission distance for a 720p HDTVI signal
- Smart search for more efficient playback
Motion Detection 2.0
Recording
Video and Audio
Network
Storage and Auxiliary Interfaces
General
Physical Interfaces
Available Model
Accessories
Ideal Applications and Common Uses
- Homes requiring a multi-camera analog surveillance system
- Retail stores, offices, restaurants, and small commercial properties
- Warehouses and facilities requiring up to 16 analog camera connections
- Upgrading an existing coaxial CCTV system while retaining installed cabling
- Hybrid systems combining analog cameras with a limited number of compatible IP cameras
- Applications where human and vehicle filtering can reduce unnecessary motion alerts
- Installations requiring audio transmission over supported coaxial camera connections
- Systems requiring simultaneous local monitoring through HDMI and VGA displays
- Locations requiring centralized playback of as many as 16 channels
Downloads
Frequently Asked Questions
The DVR provides 16 BNC analog video inputs. It also supports 2 IP camera channels by default and can be configured for up to 18 IP camera inputs.
The DS-7116HGHI-K1 supports HDTVI, AHD, HDCVI, and CVBS analog video inputs. It also supports compatible H.265+, H.265, H.264+, and H.264 IP cameras.
The DVR supports IP cameras with resolutions up to 5 MP.
Motion Detection 2.0 uses deep learning to classify human and vehicle targets on the analog channels. This helps reduce false alarms caused by objects such as moving leaves and changing lights.
Yes. The DVR supports quick recording searches by object or event type, helping users locate relevant human- or vehicle-related events more efficiently.
The recorder has one SATA interface and supports one hard drive with a capacity of up to 10 TB.
Yes. It provides one RCA audio input and supports audio through coaxial cable on up to 16 channels. It also has one RCA audio output and supports two-way audio by reusing the first audio input.
The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. H.265 Pro+ is designed to improve encoding efficiency and reduce video-storage requirements.
Yes. The DS-7116HGHI-K1 provides simultaneous HDMI and VGA output, with both outputs supporting resolutions up to 1920 × 1080 at 60 Hz.
Yes. It has a 10/100 Mbps self-adaptive Ethernet interface and supports Hik-Connect, DDNS, HTTPS, and other listed network protocols. The datasheet specifies support for up to 128 remote connections.
