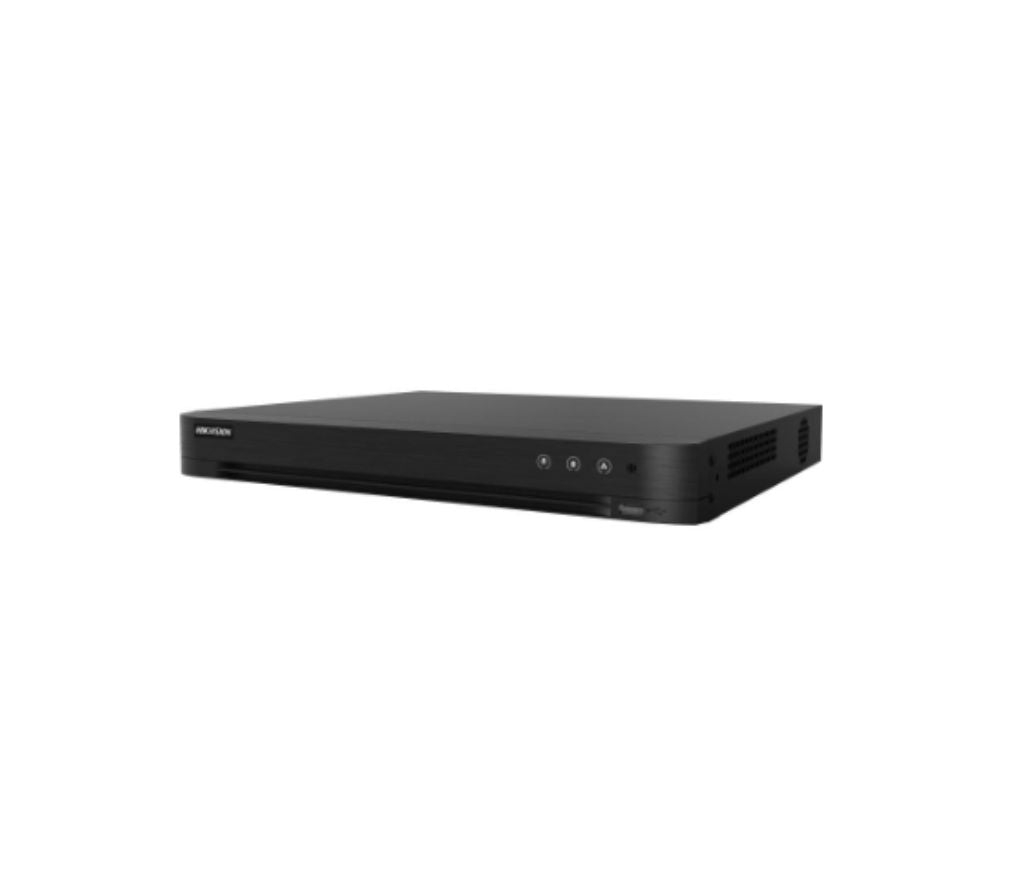

The DS-7216HGHI-M1 supports 16 analog video channels through its BNC inputs. The datasheet also states it supports 2 IP channels by default and up to 18 IP camera inputs total, with IP camera resolution up to 5 MP. That gives buyers a flexible path if they want to keep analog cameras in place while adding IP cameras over time. For a growing system, that makes the recorder more useful than a DVR that only works with one camera type.

This model is built for hybrid compatibility. The datasheet lists support for HDTVI, AHD, CVI, CVBS, and IP video input, which helps when a site has mixed camera technologies or is being upgraded in stages. That matters because buyers do not always want to replace every camera at once just to change the recorder. Instead, this DVR is designed to work with several common formats in one system.

Yes, that is one of the main reasons people choose this model. The datasheet says it uses deep learning based human and vehicle targets classification for Motion Detection 2.0. That feature is intended to help distinguish more relevant activity from less useful triggers, rather than treating every movement the same way. For buyers, that can mean less time wasted reviewing nuisance events and more attention on alerts that are more likely to matter.

Yes. The datasheet specifically lists audio via coaxial cable as a key feature. It also includes 1 RCA audio input, 1 RCA audio output, and two-way audio using the first audio input. That is useful for buyers who want supported audio functionality without making the installation more complicated than it needs to be. In the right setup, it can help simplify cabling compared with running separate audio wiring everywhere.

The datasheet says the unit supports up to 1080p Lite at 15 fps encoding capability. It also lists encoding resolutions including 1080p lite, 720p, VGA, WD1, 4CIF, and CIF, with different frame rates depending on the stream type and source. That means buyers can balance recording quality and storage use based on the cameras they are connecting. It is designed as a practical recorder for everyday surveillance rather than a recorder focused only on maximum resolution at any cost.

This DVR includes 1 SATA interface for internal storage. The datasheet says it supports up to 10 TB capacity for each disk, which gives buyers a meaningful amount of local recording space in a compact 1U recorder. It also supports H.265 Pro+, H.265 Pro, and H.265 compression, which are intended to improve storage efficiency. For smaller and mid-sized systems, that can help stretch retention time without immediately moving to a larger recorder class.

Yes, the datasheet lists 16-channel synchronous playback. That means you can review multiple camera views together instead of checking footage one channel at a time. This is especially helpful when you need to understand how an event moved across different areas of a property. For buyers, that can make investigations faster and less frustrating when time matters.

The recorder includes both HDMI and VGA outputs. The datasheet lists output resolutions up to 1920 × 1080 at 60 Hz on both, along with lower supported resolutions like 1280 × 1024, 1280 × 720, and 1024 × 768. That gives buyers flexibility when connecting the DVR to an existing monitor or display in an office, retail counter, or back room. It also makes local live view and playback more convenient without needing unusual adapters or displays.

Yes. The datasheet lists Hik-Connect and DDNS for easy network management, and it supports up to 128 remote connections. It also includes an RJ45 10M/100M self-adaptive Ethernet interface and supports common network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, UPnP, HTTPS, and ONVIF. For buyers, that means the system is built to be more convenient for remote viewing and ongoing access instead of requiring everything to be done at the recorder itself.

The datasheet lists the DVR at 260 × 222 × 45 mm and up to 2.2 kg in weight. It uses a 12 VDC, 1.5 A power supply and has power consumption of 18 W or less. Those details matter because buyers often want to know whether the recorder will fit cleanly into a shelf, cabinet, or desk setup without creating extra planning issues. It is a compact 1U-style unit meant for straightforward installation in smaller surveillance environments.
