DS-7116HQHI-K1 Hikvision 2MP 16CH Turbo HD DVR w/Optional HDD Record 1080p H.265
DS-7116HQHI-K1 Hikvision 2MP 16CH Turbo HD DVR w/Optional HDD Record 1080p H.265
Out of stock
Description
Description

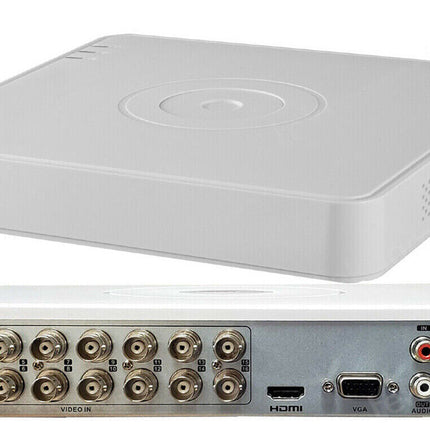

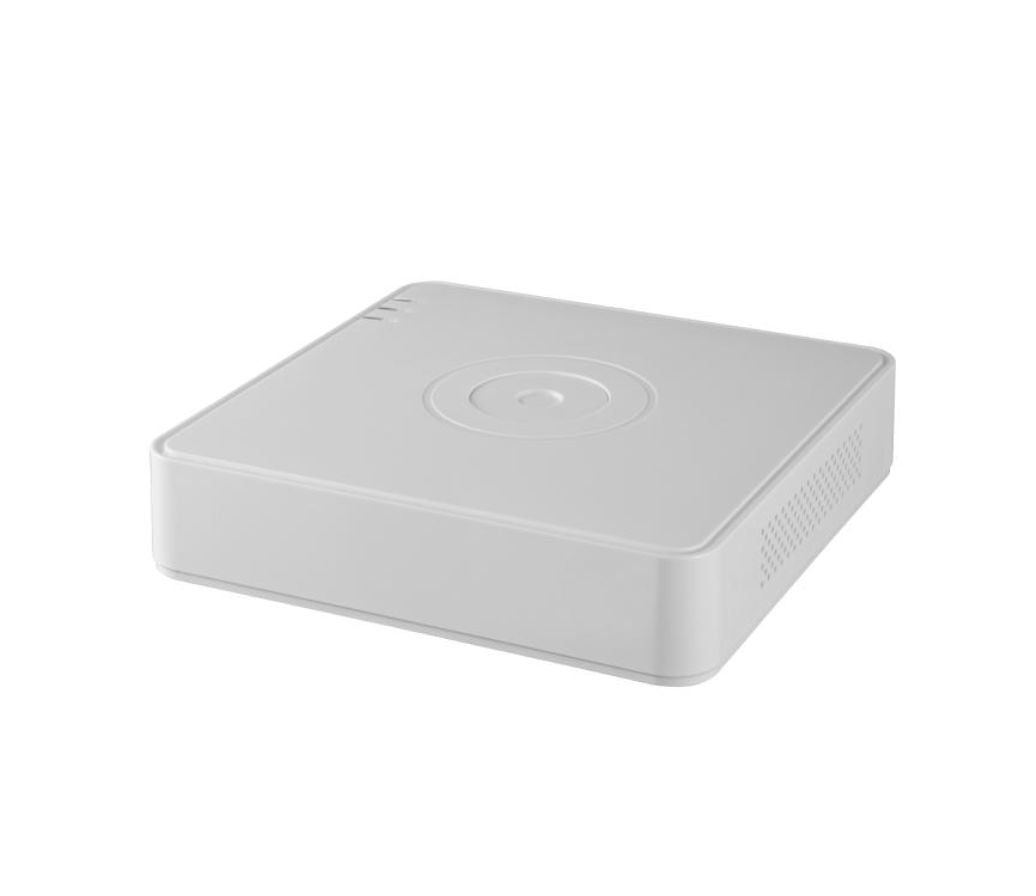

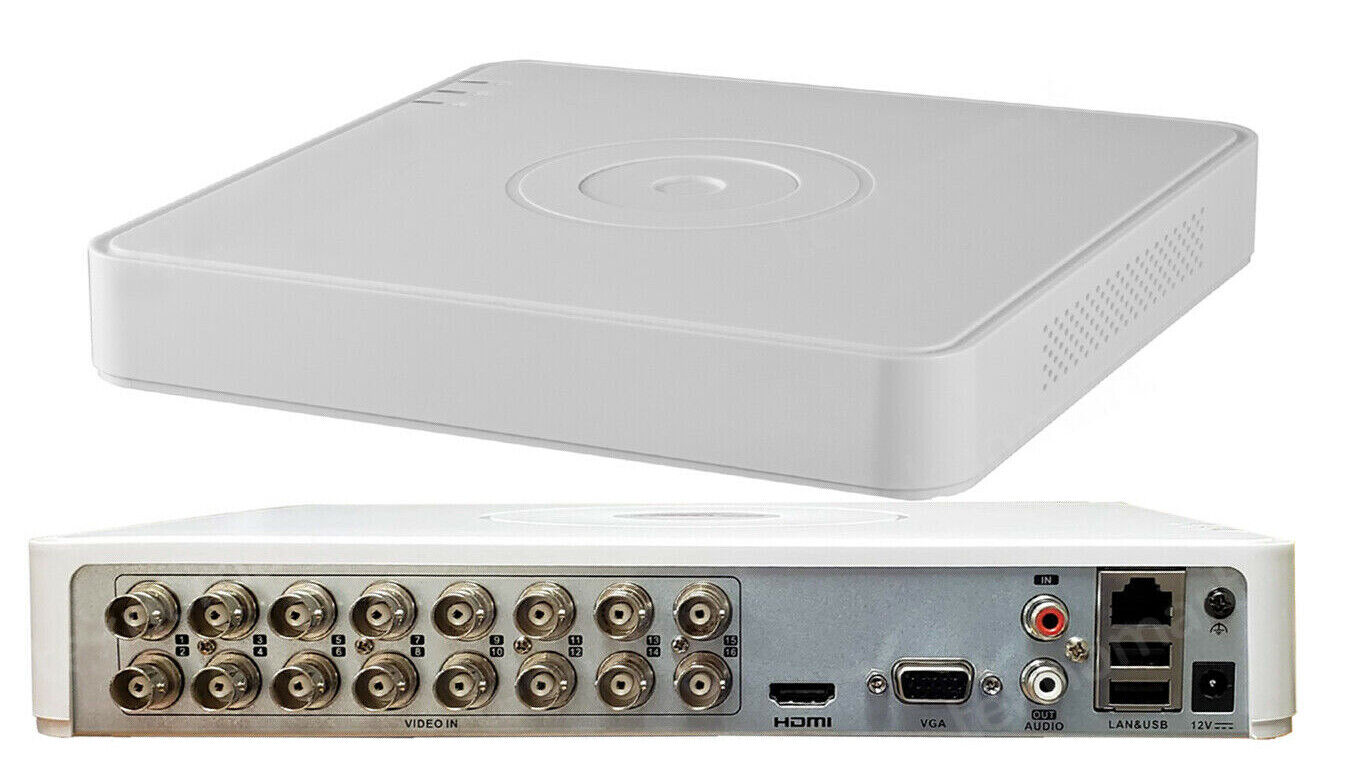

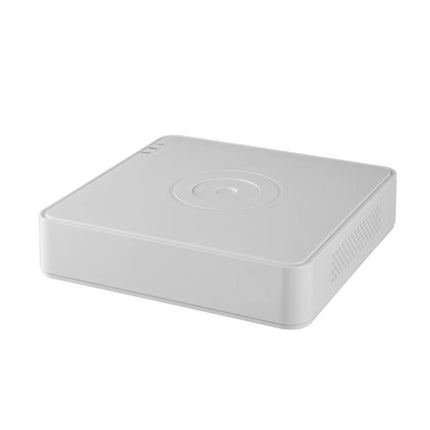

Hikvision DS-7116HQHI-K1 16-Channel Turbo HD DVR
What happens when your security needs expand, but your recorder leaves you boxed into one camera technology? The Hikvision DS-7116HQHI-K1 gives you 16 analog channels plus flexible IP-camera expansion, helping you build a capable surveillance system without unnecessarily replacing compatible existing cameras and cabling.
Its H.265 Pro+ compression is designed to improve encoding efficiency and reduce storage costs, so your available hard-drive capacity can be used more effectively.
With multi-format camera support, audio over coax, remote connectivity, smart event capabilities, and up to 16-channel synchronous playback, this DVR gives you a more practical way to manage security across your property.
Why Buyers Choose This Model
16 Analog Channels — Cover More of Your Property
Connect up to 16 analog cameras, giving you the flexibility to monitor entrances, hallways, parking areas, stockrooms, and other important locations from one recorder.
Hybrid Camera Compatibility — Keep More of What You Already Have
Support for HDTVI, AHD, HDCVI, CVBS, and IP video inputs makes the DVR suitable for mixed-camera environments. This can make upgrading an existing system easier because you are not restricted to a single supported signal type.
Expandable IP Capacity — Create Room for Future Growth
The recorder supports two IP inputs for up to 18 total channels under its standard configuration. Enhanced IP mode supports eight IP inputs and up to 24 total channels, helping your system adapt when additional coverage becomes necessary.
Up to 6 MP IP Camera Support — Preserve Important Visual Detail
Compatible IP cameras with resolutions up to 6 MP can be connected, giving you the option to add higher-resolution coverage where identifying details may matter most.
Recording up to 4 MP Lite — Capture More Useful Footage
Full-channel recording at up to 4 MP lite helps provide the visual information needed to review activity instead of leaving you dependent on low-resolution recordings.
H.265 Pro+ Compression — Use Storage More Efficiently
H.265 Pro+ improves encoding efficiency and helps reduce data-storage costs. That means your available hard-drive space can be used more efficiently without relying solely on older compression formats.
Up to 10 TB Storage Capacity — Build Around Your Recording Needs
The single SATA interface supports one hard drive with a capacity of up to 10 TB, allowing you to select storage based on your camera count, recording schedule, and desired retention period.
Audio Over Coax — Add Context to Recorded Events
Support for 16 channels of audio through compatible coaxial cameras can help you understand more of what occurred instead of reviewing video without sound. The recorder also provides RCA audio input, audio output, and one-channel two-way audio support.
Long-Distance HDTVI Transmission — Reach More Locations
HDTVI signals can be transmitted up to 800 meters at 1080p or up to 1,200 meters at 720p, giving installers greater flexibility when cameras must be positioned farther from the recorder.
Smart Search — Spend Less Time Reviewing Footage
Instead of manually searching through lengthy recordings, Smart Search helps you review footage more efficiently when you need to investigate an event.
Line-Crossing and Intrusion Detection — Focus on Meaningful Activity
Support for four-channel line-crossing and intrusion detection helps compatible systems identify activity within defined security areas, making it easier to focus attention on events that may require review.
16-Channel Synchronous Playback — Review the Complete Situation
Play back as many as 16 channels simultaneously to follow an event across multiple camera views and develop a clearer understanding of how it unfolded.
Hik-Connect and DDNS — Stay Connected to Your System
Hik-Connect and DDNS support provide convenient network-management options, helping you maintain access to your surveillance system when you are away from the property.
Simultaneous HDMI and VGA Output — Create a Practical Viewing Station
Use the HDMI and VGA outputs simultaneously to display the system on two compatible screens. Both outputs support resolutions up to 1920 × 1080 at 60 Hz.
Dual-Stream Support — Balance Recording and Network Viewing
Dual-stream capability gives the system separate stream options, providing greater flexibility when balancing recorded video quality with network viewing requirements.
What This Helps You Avoid
Imagine discovering that an important event occurred, only to realize your recorder could not accommodate the cameras you needed, the footage is difficult to locate, or the available recording storage was used inefficiently.
That uncertainty becomes even more frustrating when an expanding property requires additional coverage but the existing recorder limits your options. Replacing compatible cameras and cabling simply because a recorder cannot work with different video formats can add avoidable cost and complexity.
The DS-7116HQHI-K1 addresses those concerns with 16 analog inputs, support for five video-signal technologies, IP-camera expansion, efficient H.265 Pro+ compression, Smart Search, and up to 16-channel synchronized playback.
Instead of building around a restrictive recorder, you gain a flexible foundation that can bring compatible cameras together, organize your recordings, and help you retrieve the footage you need when an incident demands answers.
Important Configuration Note
Enhanced IP mode may conflict with smart events, including perimeter-protection functions, or with other recorder features. Review the applicable user manual before enabling Enhanced IP mode when smart-event functionality is required.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7116HQHI-K1 16-Channel Turbo HD DVR
The Hikvision DS-7116HQHI-K1 is a 16-channel Turbo HD DVR designed for surveillance systems that need broad camera compatibility, efficient storage, and dependable high-resolution recording.
It supports HDTVI, AHD, HDCVI, CVBS, and IP camera inputs, making it a practical choice for new installations as well as upgrades involving multiple camera technologies.
H.265 Pro+ compression helps improve encoding efficiency and reduce storage costs, while support for up to 24 IP camera inputs in Enhanced IP mode gives compatible systems room to expand.
Key Features
- H.265 Pro+, H.265 Pro, and H.265 video compression.
- Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs.
- Supports audio transmission over coaxial cable.
- Up to 24 IP camera inputs when Enhanced IP mode is enabled.
- Supports IP cameras with resolutions up to 6 MP.
- Full-channel recording at resolutions up to 4 MP lite.
- Supports up to 800 m transmission for 1080p HDTVI signals.
- Supports up to 1200 m transmission for 720p HDTVI signals.
- One SATA interface supporting an HDD with a capacity of up to 10 TB.
- Smart Search helps users locate relevant recorded footage efficiently.
- Supports multiple VCA events for analog and smart IP cameras.
- Supports four-channel line-crossing and intrusion detection.
- Hik-Connect and DDNS support simplify network management.
- Up to 96 Mbps incoming bandwidth in Enhanced IP mode.
- Supports simultaneous playback of up to 16 channels.
Model
Recording
Video and Audio Inputs
Video and Audio Outputs
Network
Storage and Auxiliary Interfaces
General
Physical Interfaces
Manufacturer's note: Enhanced IP mode may conflict with smart events, including perimeter protection, or with other functions. Refer to the applicable user manual for details.
Accessories Found in the Datasheet
The supplied manufacturer datasheet does not identify or list any included, optional, or compatible accessories.
A hard drive is not listed as an included accessory. The DVR provides one SATA interface and supports a drive with a capacity of up to 10 TB.
Ideal Applications and Common Uses
- Home surveillance systems requiring multiple analog camera channels.
- Retail stores, offices, warehouses, and other small-business locations.
- Upgrading an existing coaxial-camera installation without replacing all installed cabling.
- Hybrid systems combining HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras.
- Installations requiring audio transmission through compatible coaxial cameras.
- Systems requiring local HDMI and VGA monitor output at the same time.
- Applications requiring smart search, line-crossing detection, or intrusion detection.
- Remote viewing and network management through Hik-Connect or DDNS.
- Surveillance systems requiring storage expansion up to 10 TB.
Downloads
Frequently Asked Questions
The DVR provides 16 analog video inputs and two IP camera inputs, supporting up to 18 total channels. With Enhanced IP mode enabled, it supports eight IP inputs and up to 24 total channels.
The DS-7116HQHI-K1 supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. Its 16 analog inputs use BNC connections and support coaxitron control.
The DVR supports full-channel recording at resolutions up to 4 MP lite. Compatible IP cameras with resolutions up to 6 MP can also be connected.
The recorder has one SATA interface and supports one hard drive with a capacity of up to 10 TB.
Yes. It supports 16 channels of audio through compatible coaxial cameras, one RCA audio input, and one RCA audio output. It also supports one-channel two-way audio through the first RCA audio input.
Yes. The datasheet lists Hik-Connect and DDNS support for network management. It also supports network protocols including TCP/IP, DHCP, DNS, HTTPS, and ONVIF through its gigabit RJ45 Ethernet interface.
Yes. It has one HDMI output and one VGA output, and both can display simultaneously. The maximum listed output resolution is 1920 × 1080 at 60 Hz.
The DS-7116HQHI-K1 supports synchronous playback of up to 16 channels. It also includes Smart Search to help users locate relevant recorded footage more efficiently.
Yes. It supports multiple VCA events for analog and compatible smart IP cameras, including four-channel line-crossing and intrusion detection. The datasheet notes that Enhanced IP mode may conflict with perimeter-protection events or other functions, so the user manual should be consulted when configuring these features.
The DVR supports HDTVI signal transmission distances of up to 800 meters for 1080p and up to 1,200 meters for 720p.
