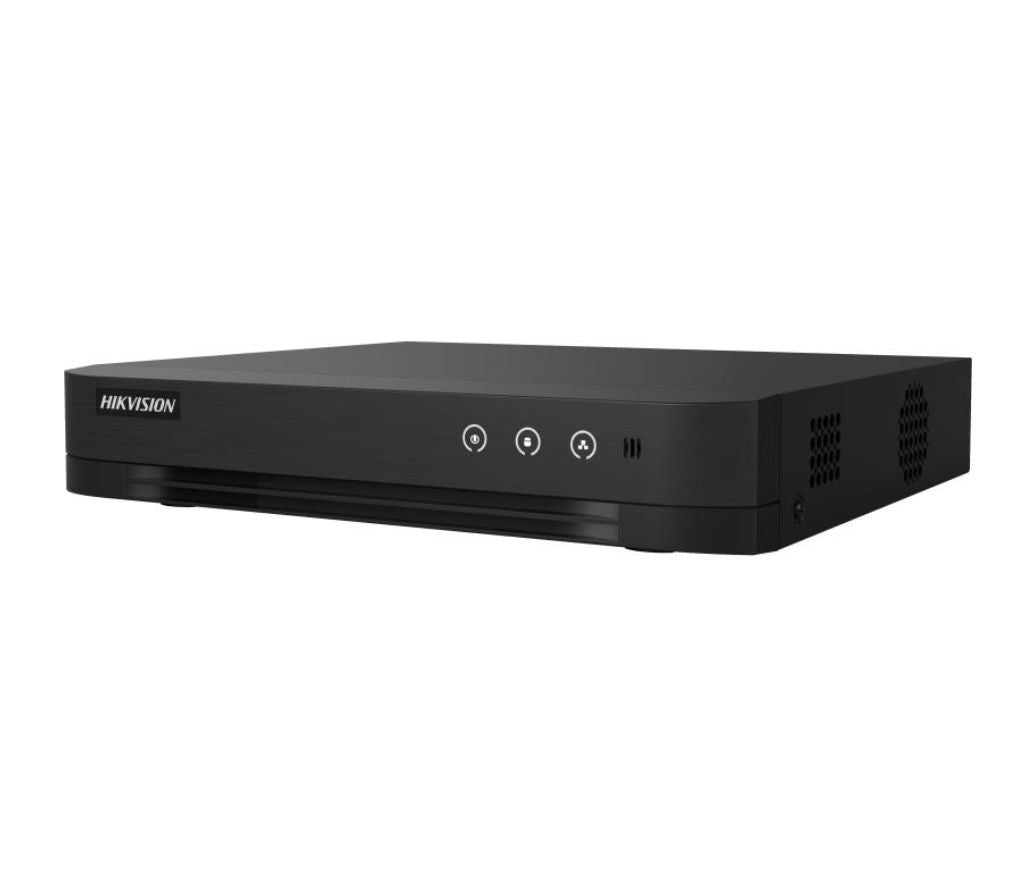

The DS-7216HGHI-K1(S) is built with 16 analog video input channels. In addition to that, the datasheet lists 2 IP channels by default, with expansion support up to 18 IP channels total, depending on configuration. That gives buyers useful flexibility if they want to keep a core analog setup while adding network cameras later. It is a practical option for users who are upgrading gradually instead of replacing an entire surveillance system at once.

Yes. The datasheet states support for HDTVI, AHD, HDCVI, CVBS, and IP video input. That matters because many buyers already have existing cameras installed and want a recorder that can handle mixed formats without forcing a complete rebuild. It also makes this model useful for hybrid systems where some cameras are analog and others are IP. For many upgrades, that compatibility is one of the biggest reasons this recorder stands out.

The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. According to the datasheet, H.265 Pro+ improves encoding efficiency and helps reduce data storage costs. That is important for buyers who want to retain footage longer without filling the hard drive as quickly. In real-world use, better compression can make storage planning much easier and more cost-effective.

The datasheet lists encoding resolution up to 1080p lite, along with 720p, VGA, WD1, 4CIF, and CIF. For 1080p stream access, the main stream supports 1080p lite, 720p lite, WD1, 4CIF, and VGA at 15 fps, with CIF at 25 fps (P) or 30 fps (N). For 720p stream access, it supports 720p, WD1, 4CIF, and VGA at 15 fps, with CIF at 25 fps (P) or 30 fps (N). This gives buyers a practical recording platform for multi-camera systems where balancing image detail and storage use matters.

The DS-7216HGHI-K1(S) includes 1 SATA interface. The datasheet specifies support for up to 10 TB capacity for each disk. That makes it suitable for users who need a meaningful amount of local storage without moving into a larger multi-drive recorder. If your goal is to keep more days of footage while using efficient compression, this storage support gives you a solid starting point.

Yes. The datasheet lists Hik-Connect and DDNS for easy network management. It also includes network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. That means the recorder is designed with the network tools needed for remote connectivity and system integration in supported environments. For buyers who want to check in on their system without staying on-site, this is an important feature.

Yes. The datasheet lists 1 RCA audio input and 1 RCA audio output, and it also states support for 16 channels of audio via coaxial cable. In addition, it supports 1-channel two-way audio using the first audio input. This matters for users who want audio capability alongside video in supported system designs. Having audio over coaxial cable can also help simplify cabling in installations where that feature is being used.

The DVR supports 16-channel synchronous playback. The datasheet also highlights smart search for efficient playback. That combination is helpful when you need to review incidents across several cameras without wasting time checking one view at a time. For buyers managing larger multi-camera sites, faster playback review can make a big difference in day-to-day usability.

Yes. The datasheet says it supports multiple VCA events for both analog and smart IP cameras. It also specifically supports 1-channel line crossing detection and intrusion detection. That is useful for buyers who want more than continuous recording and would rather have a recorder that can work with event-based monitoring features. These functions can help make surveillance more proactive instead of simply recording everything passively.

According to the datasheet, the recorder measures 260 × 222 × 45 mm, or about 10.2 × 8.7 × 1.8 inches. It uses 12 VDC, 1.6 A power, with power consumption of ≤ 10 W without HDD. The working temperature range is -10 °C to 55 °C, and working humidity is 10% to 90%, with a listed weight of ≤ 1.1 kg without HDD. Those details help buyers confirm whether the unit fits their space, environment, and installation plan before purchase.
