DS-7616NI-K2/16P UL Hikvision 16ch IP PoE Recorder w/ HDD 1U 16 4K NVR
DS-7616NI-K2/16P UL Hikvision 16ch IP PoE Recorder w/ HDD 1U 16 4K NVR
Out of stock
Description
Description

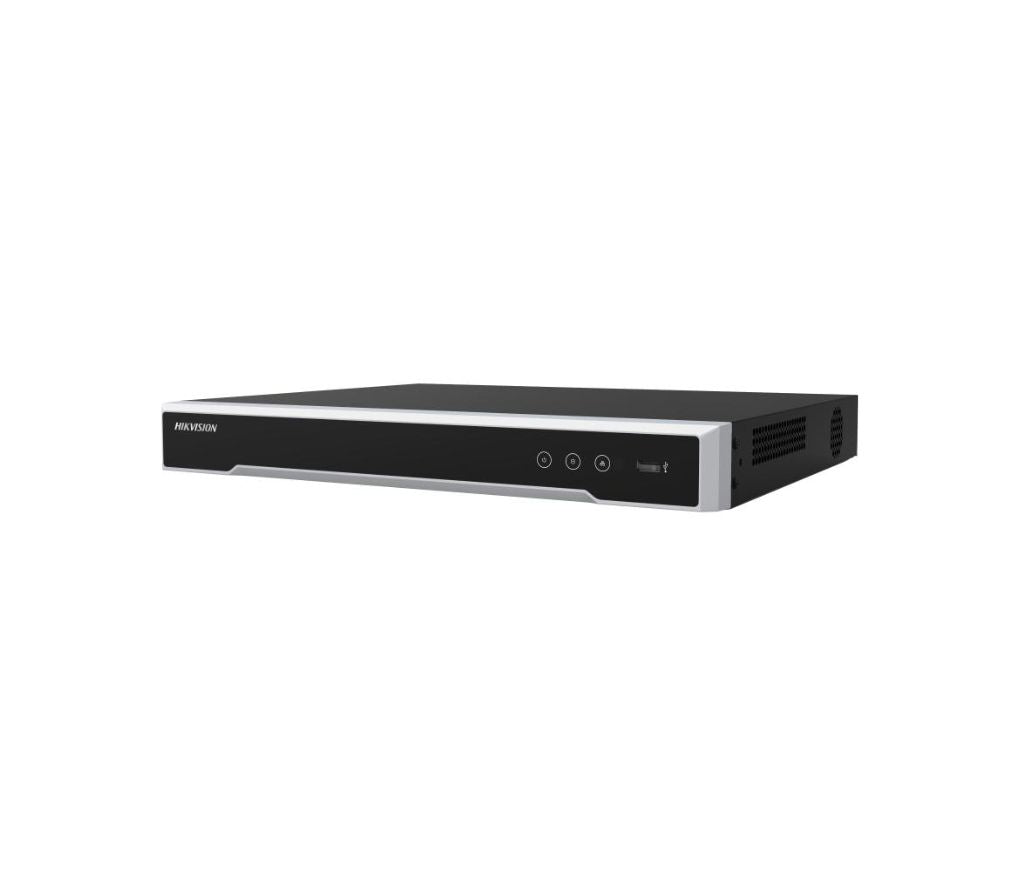

Hikvision DS-7616NI-K2/16P 16-Channel PoE 4K NVR
What would change if you could manage as many as 16 IP cameras without building a complicated network around your recorder? The Hikvision DS-7616NI-K2/16P combines 16 independent PoE ports, high-resolution recording, and centralized playback in one professional NVR.
Its 160 Mbps incoming bandwidth, recording support up to 12 MP, and 4K HDMI output help preserve the image detail you may need when reviewing an important event. With two HDD bays and efficient H.265+ compression, it also gives you room to build a more practical long-term surveillance system.
Why Buyers Choose This Model
Buyers choose this NVR when they want the capacity of a 16-camera system without unnecessary installation complexity. It brings camera power, network connectivity, recording, local viewing, playback, and remote-management support into one centralized device.
```16 IP Camera Channels and 16 PoE Ports
Connect and power up to 16 compatible PoE cameras directly from the recorder. This plug-and-play design can simplify installation and reduce the need for separate power connections at every camera location.
Recording Support up to 12 MP
Retain the high-resolution detail captured by compatible cameras instead of limiting your system to lower recording resolutions. That additional clarity can make reviewing people, vehicles, and scene activity more useful when an incident occurs.
Up to 160 Mbps Incoming Bandwidth
Give a multi-camera system the bandwidth needed to receive demanding video streams. This helps you build a capable 16-channel installation while keeping camera traffic centralized through the NVR.
4K HDMI Video Output
View live and recorded footage through HDMI at up to 3840 × 2160 resolution. On a compatible 4K display, you can inspect your surveillance video with greater visual detail.
Independent HDMI and VGA Outputs
Send independent video output to HDMI and VGA displays. This provides more flexibility when monitoring footage from different screens or work areas.
Two HDD Bays with up to 10 TB per Drive
Install up to two hard drives for a maximum supported capacity of 20 TB. You can select a storage configuration that better matches your camera count and recording requirements.
Storage-Saving H.265+ Compression
H.265+ can reduce required storage space by up to 75%, according to the datasheet. This helps your available hard-drive capacity retain more footage before older recordings must be replaced.
16-Channel Synchronous Playback
Review as many as 16 channels simultaneously instead of checking every camera separately. This can make it easier to follow an event as it moves between different areas of a property.
Flexible High-Resolution Decoding
Decode one 12 MP channel, two 8 MP channels, four 4 MP channels, or eight 1080p channels at 30 fps. This gives you multiple viewing options based on the resolution and number of streams you need to display.
Compatible Camera Analytics
Use supported functions from compatible cameras, including motion detection, line crossing detection, intrusion detection, and ANPR. These event-based tools can help direct your attention toward relevant activity instead of requiring constant manual observation.
Hik-Connect Network Management
Manage network access through Hik-Connect rather than depending exclusively on the recorder’s local interface. The NVR also supports up to 128 remote connections.
Stream-Over-TLS Encryption
Protect video-stream transmission with supported TLS encryption. This adds an important layer of security while surveillance video moves across the network.
Audio and Alarm Connectivity
Use the RCA audio input for supported two-way audio and connect compatible devices through four alarm inputs and one alarm output. These interfaces give you more ways to build the recorder into a broader security setup.
What This Helps You Avoid
A surveillance system can become frustrating when camera connections require extra hardware, storage fills too quickly, or reviewing an incident means opening channels one at a time. Those limitations may not seem serious during normal operation, but what happens when you urgently need to understand an event across several areas?
```- Avoid powering each compatible PoE camera through a separate local power connection.
- Avoid restricting a growing installation to fewer than 16 camera channels.
- Avoid wasting available storage when a more efficient supported compression format can be used.
- Avoid reviewing every camera separately when synchronized multi-channel playback is needed.
- Avoid limiting local viewing to a single shared HDMI/VGA output.
- Avoid overlooking compatible camera-generated motion, line-crossing, intrusion, or ANPR events.
- Avoid depending entirely on local access when Hik-Connect network management is required.
The DS-7616NI-K2/16P resolves these concerns by placing 16 PoE connections, high-resolution recording, expandable storage, smart-event support, and centralized playback inside one recorder. The result is a surveillance system that is easier to organize today and better prepared for the moment its footage matters most.
```
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Decoding and Playback
Network
Power over Ethernet
Storage and Auxiliary Interfaces
Smart Functions
Power and Operating Conditions
Physical Specifications
Physical Interfaces
Certifications
Available Model
Compatible Accessories and Components
- Up to 16 compatible IP surveillance cameras.
- IEEE 802.3af/at-compatible PoE cameras.
- Up to two SATA surveillance hard drives, with a maximum supported capacity of 10 TB per drive.
- HDMI monitor or television for video output.
- VGA monitor for independent video output.
- USB devices compatible with USB 2.0 connections.
- Compatible RCA audio input and output equipment.
- Compatible alarm input and alarm output devices.
The datasheet does not identify any specific accessory model numbers or state which accessories are included in the package.
Ideal Applications and Common Uses
- Professional surveillance systems requiring up to 16 IP cameras.
- Homes and properties that need centralized recording from multiple camera locations.
- Retail stores, offices, warehouses, and other commercial locations.
- Installations where PoE can simplify camera power and network connectivity.
- Systems requiring high-resolution recording at up to 12 MP.
- Applications requiring 4K local monitor output.
- Locations needing simultaneous playback of as many as 16 recorded channels.
- Surveillance systems using compatible VCA features such as motion, line crossing, or intrusion detection.
- Compatible vehicle-monitoring systems that use ANPR camera functionality.
- Installations requiring up to two internal hard drives for extended video retention.
Downloads
Frequently Asked Questions
The NVR supports up to 16 IP camera inputs.
Yes. It has 16 independent RJ-45 PoE network interfaces for plug-and-play camera connections. The ports support 10/100 Mbps self-adaptive Ethernet and IEEE 802.3af/at PoE, with a total PoE power capacity of up to 200 W.
It has two SATA interfaces and supports up to two hard drives. According to the supplied datasheet, each hard drive can have a capacity of up to 10 TB, providing up to 20 TB of total supported internal storage.
The NVR supports recording resolutions up to 12 MP. It also supports 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
Yes. Its HDMI output supports resolutions up to 4K at 3840 × 2160 and 30 Hz. The NVR also includes a VGA output, and the HDMI and VGA interfaces can provide independent video outputs.
It can decode 1 channel at 12 MP and 30 fps, 2 channels at 8 MP and 30 fps, 4 channels at 4 MP and 30 fps, or 8 channels at 1080p and 30 fps.
The DS-7616NI-K2/16P supports synchronous playback of up to 16 channels.
It supports H.265+, H.265, H.264+, and H.264 video formats. According to the datasheet, H.265+ compression can reduce required storage space by up to 75%.
Yes. The NVR supports Hik-Connect for network management and provides one RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. It also supports up to 128 remote connections.
Yes. It supports multiple Video Content Analytics events and configurable smart functions supplied by compatible cameras, including motion detection, line crossing detection, intrusion detection, and ANPR.
