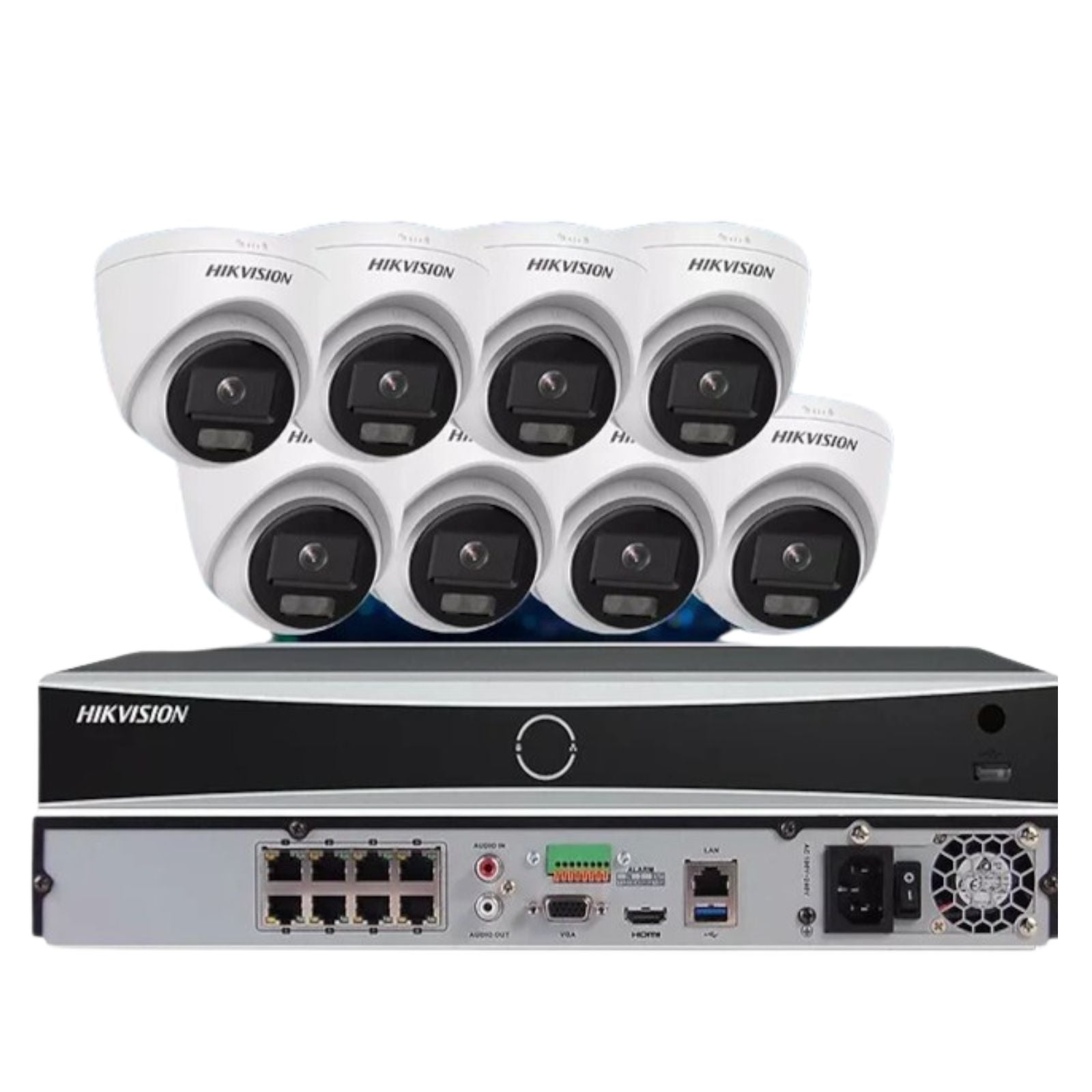

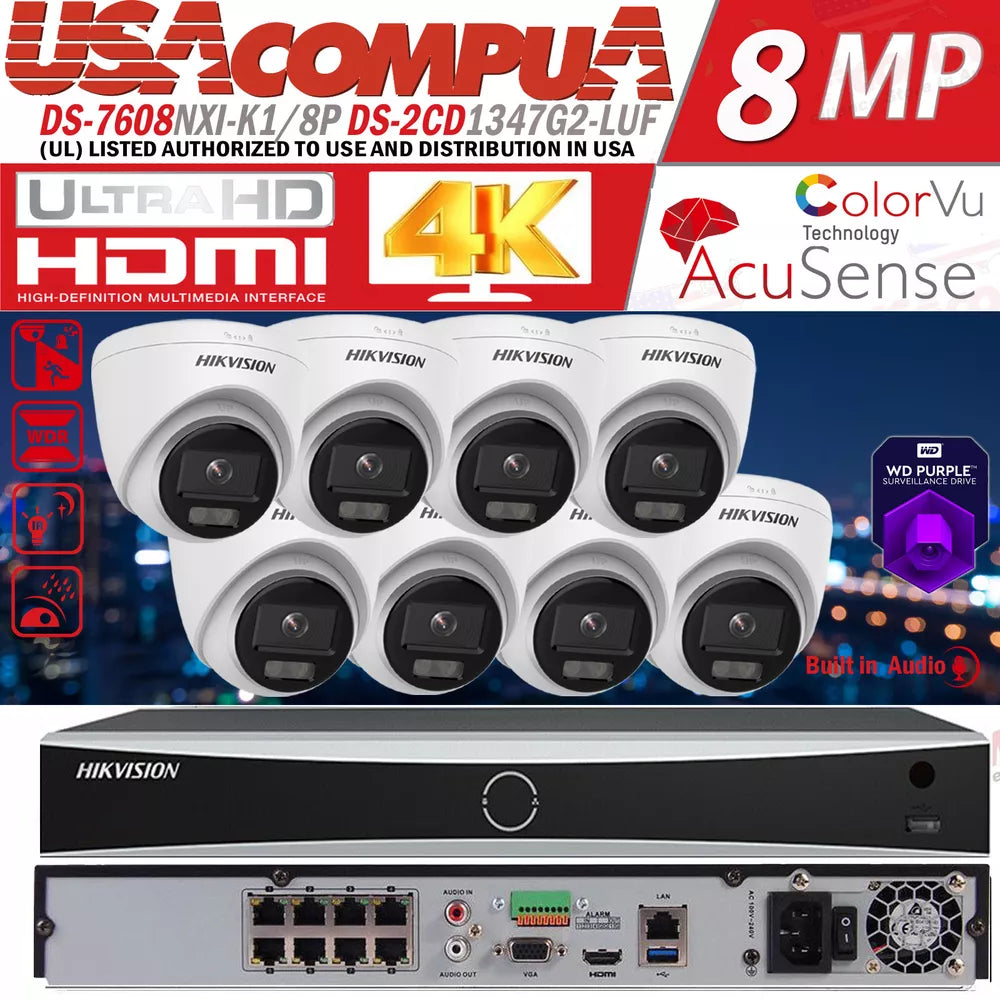

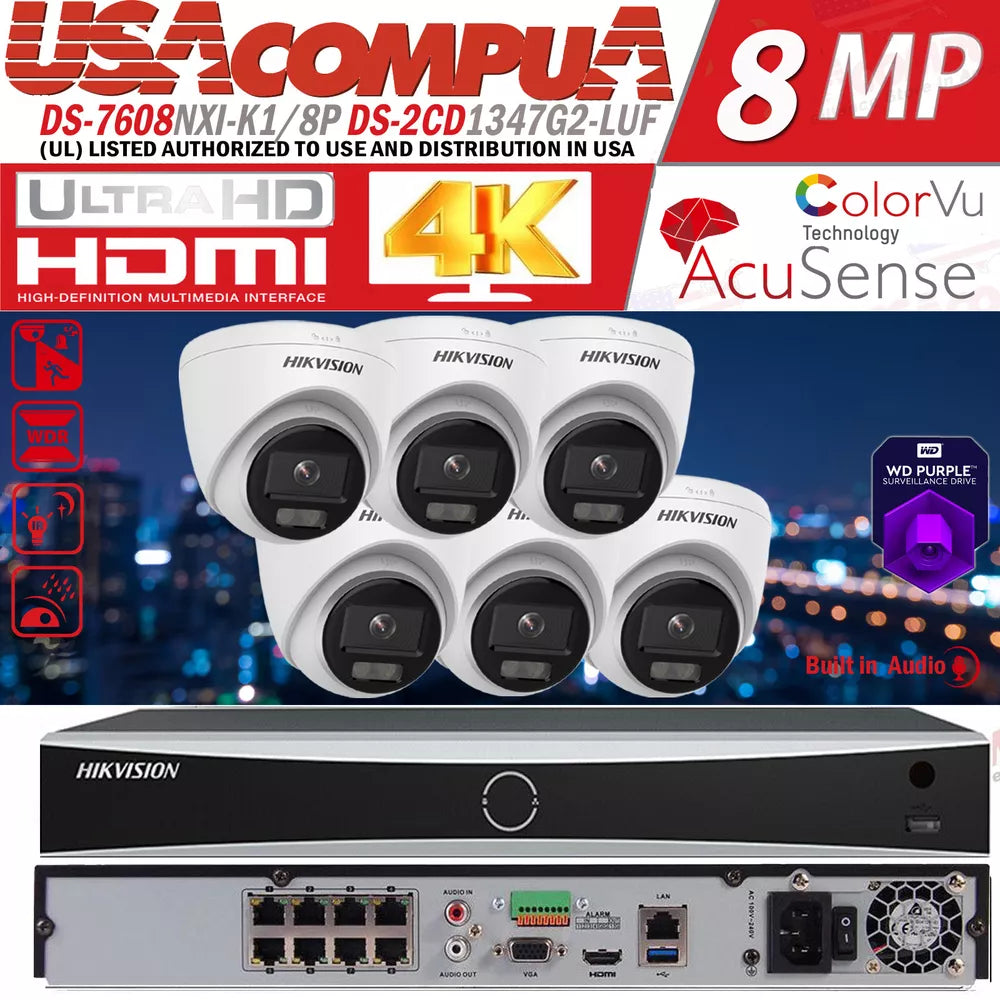

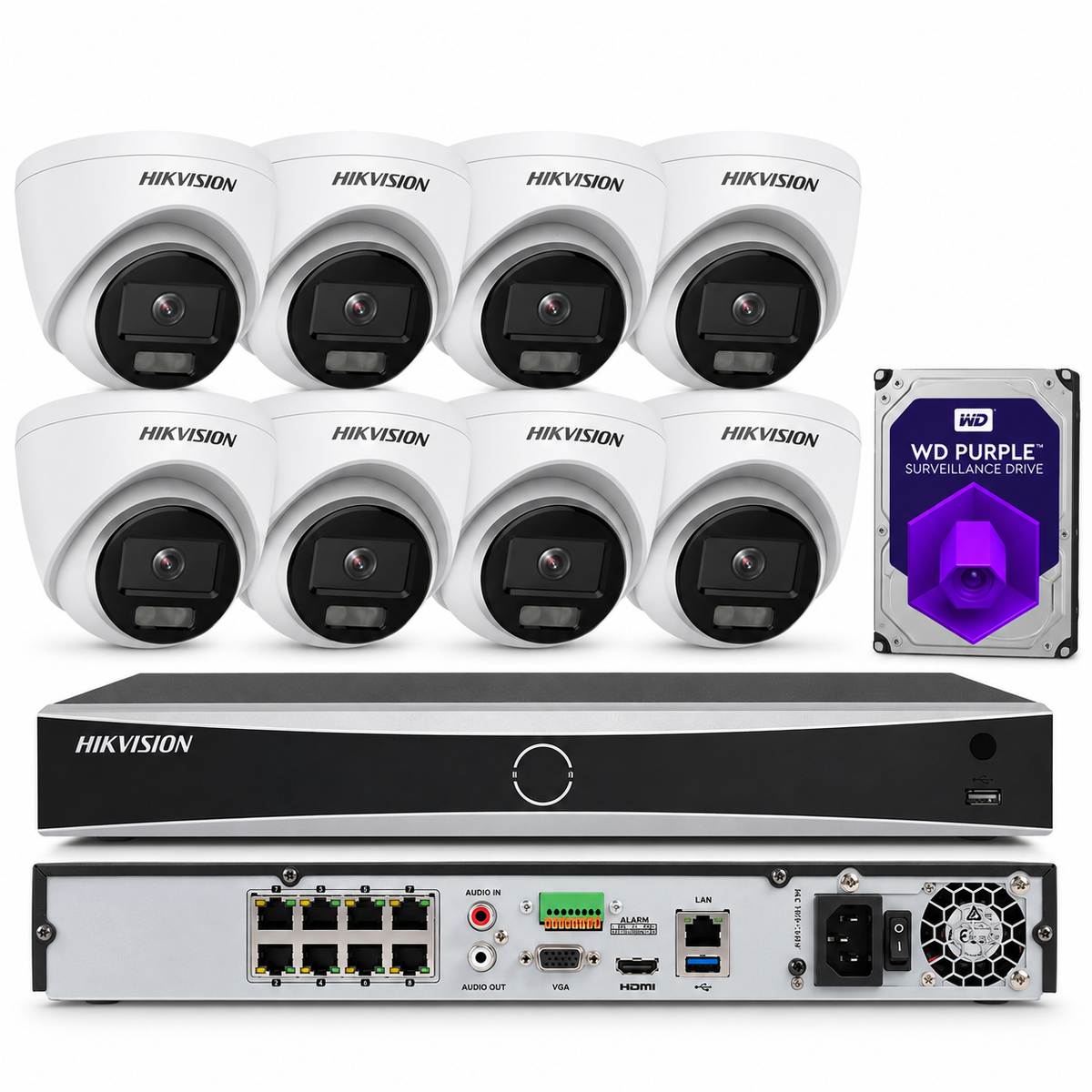

HIKVISION 4K DS-2CD1347G2-LUF 4MP IP Camera System NVR 8CH DS-7608NXI-K1/8P Lot

Data sheet PDF

Product Description

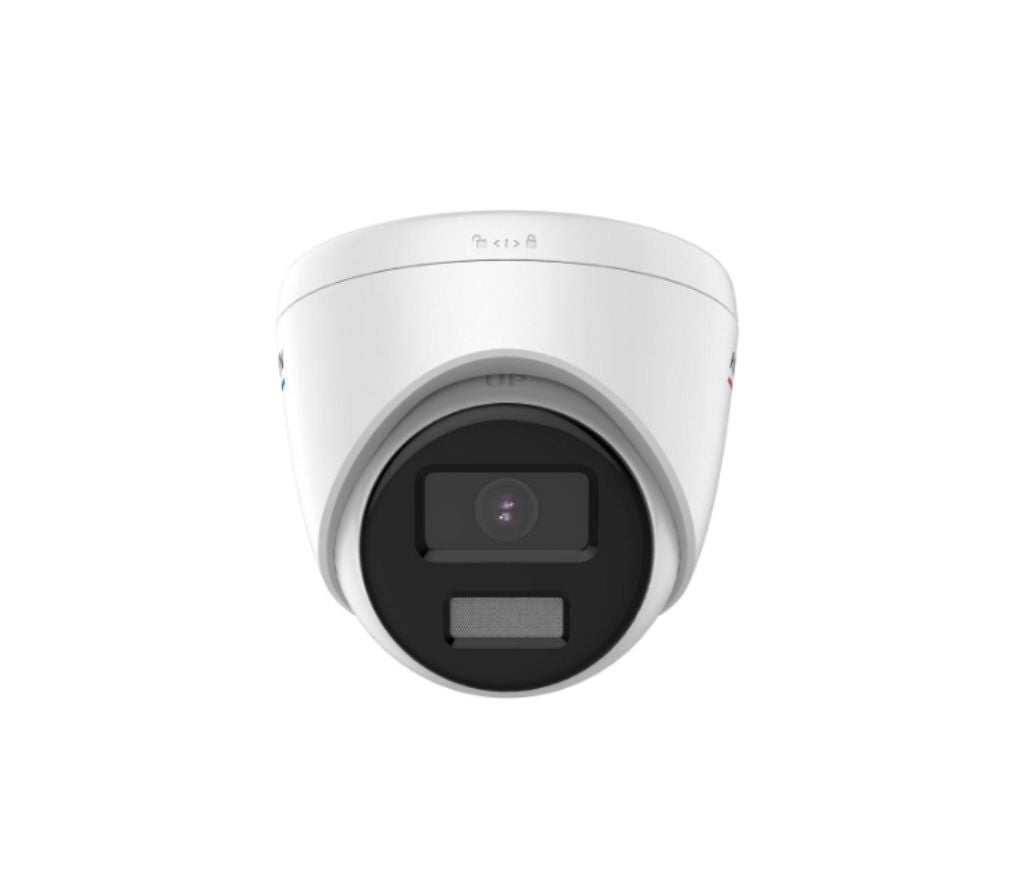

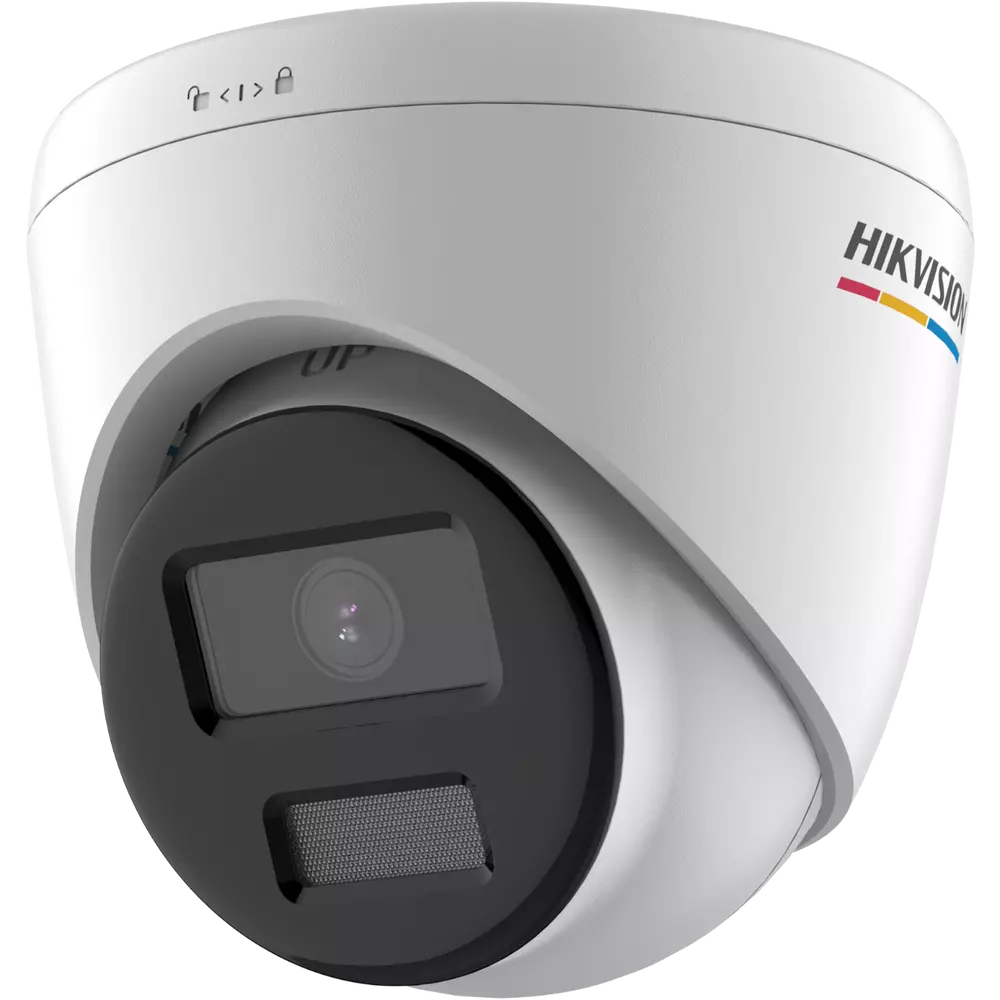

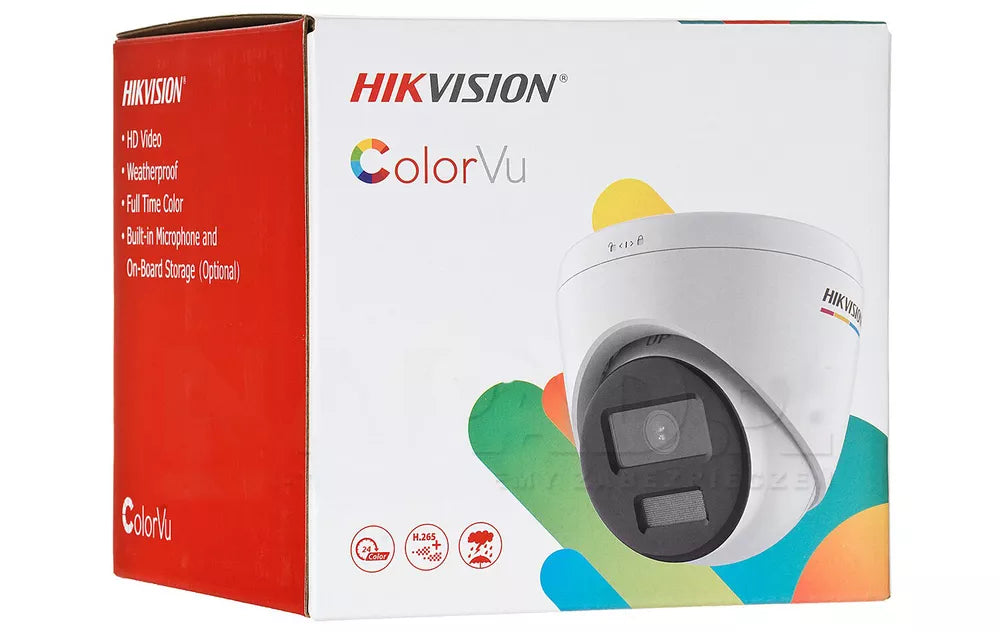

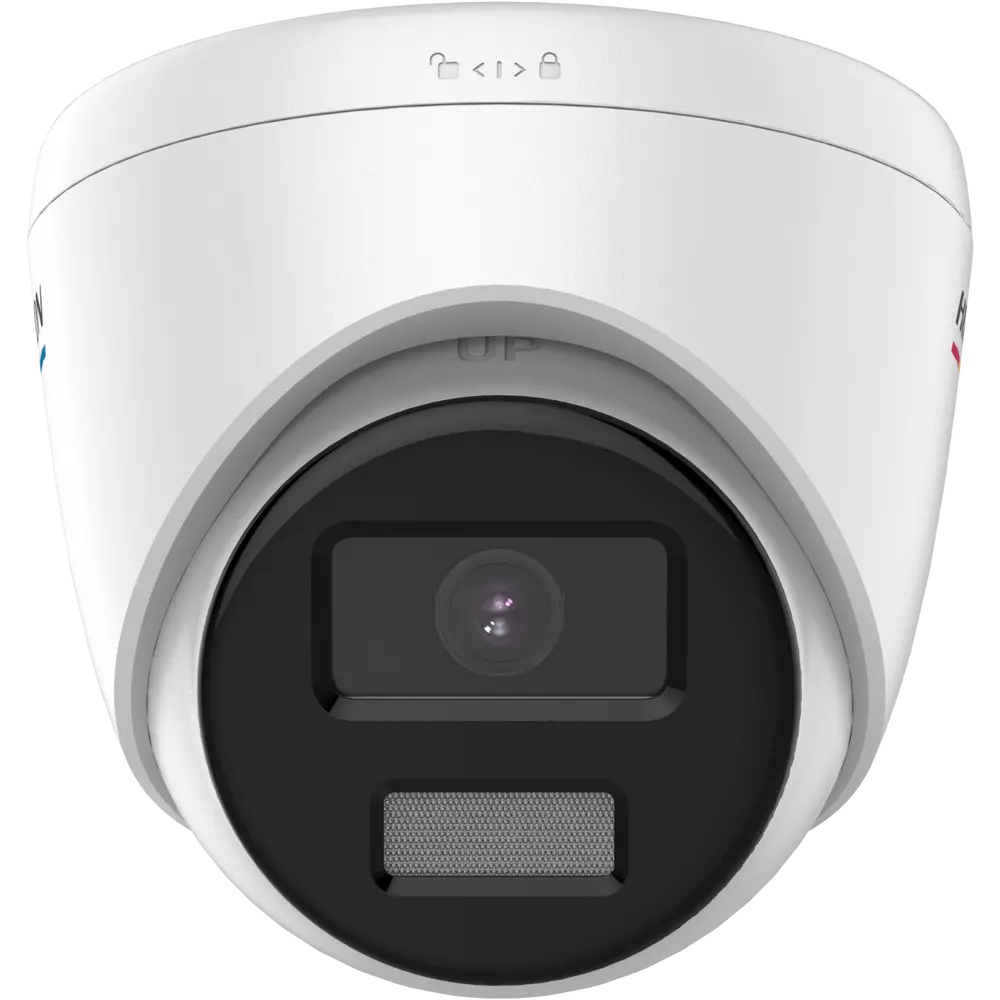

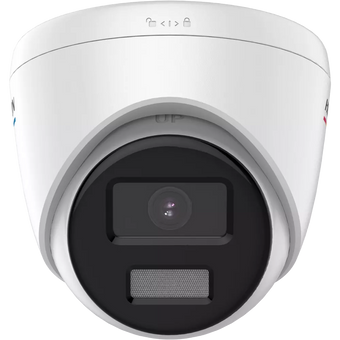

4 MP ColorVu MD 2.0 Fixed Turret Network Camera

• High quality imaging with 4 MP resolution

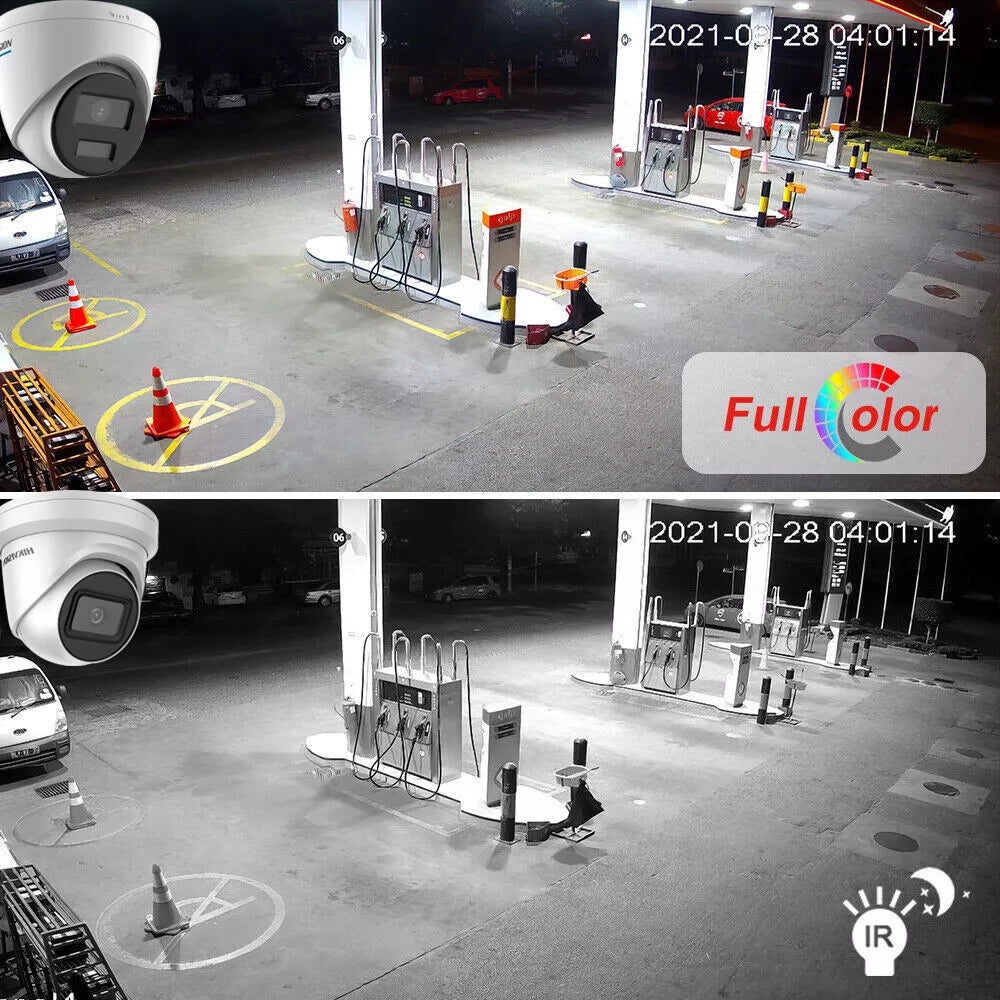

• 24/7 colorful imaging
• Support Human and Vehicle Detection
• Water and dust resistant (IP67)
• Clear imaging even with strong back lighting due to 120 dB WDR
• Efficient H.265+ compression technology
• Support on-board storage up to 256GB (SD card slot)(Optional)
• Built-in microphone for real-time audio security(Optional)

Specification

• Camera

• Lens

• DORI

• Illuminator

• Video

• Audio

• Network

• Image

• Interface

• Event

• General

• Approval

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 ? 1440
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 96?, vertical FOV: 52?, diagonal FOV: 113?

  4 mm, horizontal FOV: 75?, vertical FOV: 40?, diagonal FOV: 89?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 2 m to ?

  4 mm: 2.7 m to ?

• DORI
• DORI

  2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz:

  20 fps (2560 ? 1440)

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz:

  20 fps (2560 ? 1440)

  24 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 24 fps (1280 ? 720, 640 ? 480, 640 ? 360)




• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region(s) for main stream

• Audio
• Audio Type-U: Mono sound
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage




  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

• Built-In Microphone-U: Yes
• Reset Key-F: Yes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• MaterialMetal & Plastic
• Dimension




  ?109.9 mm ? 103.6 mm (?4.3 ? 4.1\")"

• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• Weight




  -L: Approx. 380 g (0.8 lb.); -LUF: Approx. 420 g (0.9 lb.)

• With Package Weight




  -L: Approx. 620 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)

• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

Data sheet PDF

Product Description

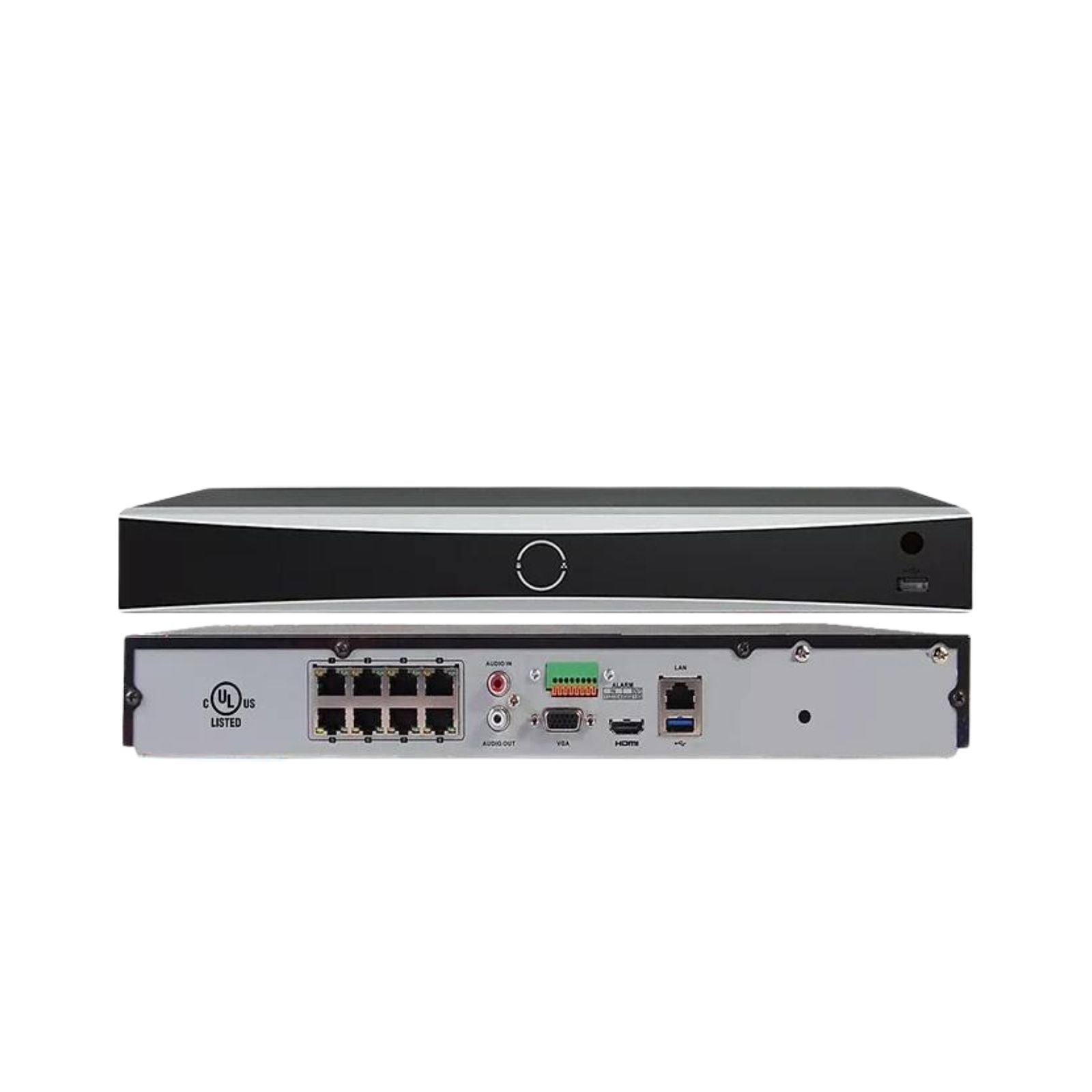

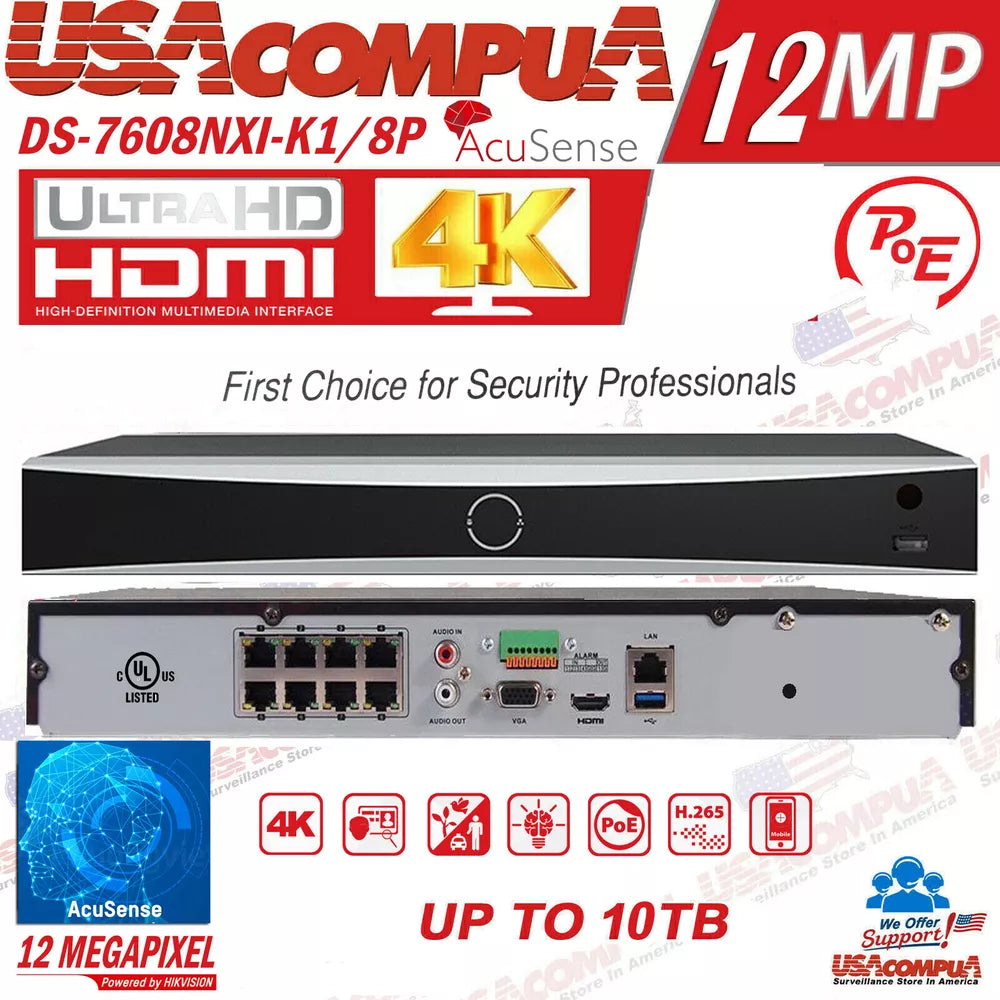

8-ch PoE 1U K Series AcuSense 4K NVR

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specification

• Intelligent Analytics

• Facial Recognition

• Motion Detection 2.0

• Perimeter Protection

• Throwing Objects From Building

• Video And Audio

• Decoding

• Network

• PoE

• Auxiliary Interface

• General

• Certification

• Intelligent Analytics
• AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
• Facial Detection And Analytics Performance1-ch, 8 MP
• Face Picture Comparison4-ch

• Motion Detection 2.0
• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Perimeter Protection
• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Throwing Objects From Building
• By CameraAll channels

• Video And Audio
• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output;HDMI/VGA independent output
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

• Decoding
• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8-ch
• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network
• Remote Connection128
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 75 W
• StandardIEEE 802.3af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each HDD
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
• Alarm In/Out4/1;N/A;N/A ;N/A (4/1 is optional)

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply48 VDC, 1.875 A
• Consumption? 10 W (without HDD, and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)320 mm ? 240 mm ? 48 mm (12.6"? 9.4" ? 1.9")
• Weight? 1 kg (without HDD, 2.2 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
