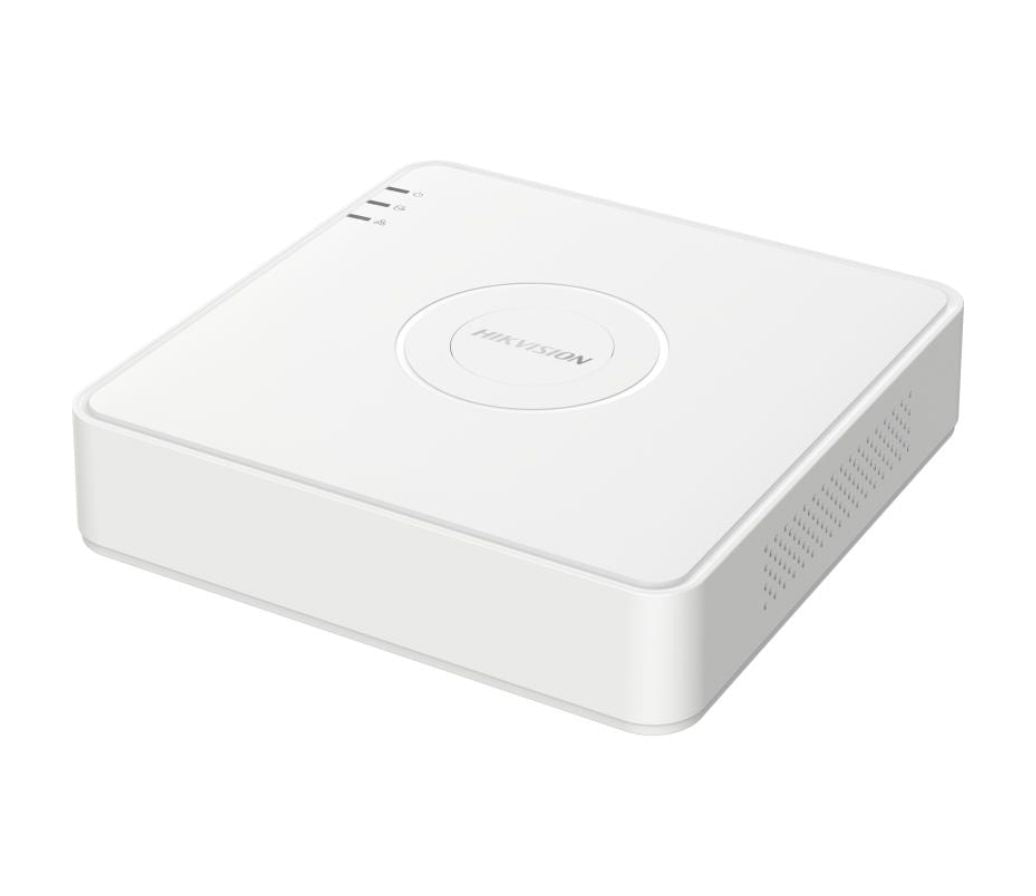

Hikvision DS-7100HGHI-F1/N Series Turbo HD DVR
What if upgrading your security system did not mean replacing every camera you already have? The Hikvision DS-7100HGHI-F1/N Series gives you the flexibility to work with HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras, making it easier to build around your existing surveillance setup.
With H.264+ compression, 1080p Lite recording, remote access through Hik-Connect, Smart Search, and support for up to 6 TB of storage, this DVR is designed to make everyday surveillance simpler to manage.
Whether you are replacing an older recorder or expanding your current system, the DS-7100HGHI-F1/N Series gives you multiple channel options without forcing you into a single camera technology.
Why Buyers Choose This Model
When you already have cameras and cabling installed, does it really make sense to replace everything simply because you need a new recorder? The strength of the DS-7100HGHI-F1/N Series is its ability to bring multiple surveillance technologies together while still giving you the recording, storage, playback, and remote-access features needed for everyday security.
Multi-Format Camera Compatibility — Keep More of Your Existing System
The recorder supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. That gives you greater flexibility when replacing an older DVR because compatible cameras using different video technologies can be incorporated into the system instead of automatically requiring a complete camera replacement.
4, 8 & 16-Channel Options — Choose the Capacity That Fits Your Property
The series includes the DS-7104HGHI-F1/N, DS-7108HGHI-F1/N, and DS-7116HGHI-F1/N, giving you 4-, 8-, or 16-channel analog configurations. You can select a recorder that better matches the size of your surveillance system instead of paying for capacity you do not need.
IP Camera Support — More Flexibility as Your System Evolves
Need to incorporate compatible network cameras into the installation? Depending on the model, the recorder supports up to 4, 8, or 16 IP camera inputs at up to 960p resolution, giving you additional flexibility when planning or modifying your surveillance system.
H.264+ Compression — Get More Value From Your Storage
Recording continuously can consume storage quickly. Hikvision's H.264+ compression is designed to improve encoding efficiency and reduce video storage requirements, helping you make better use of the hard drive capacity available inside the recorder.
1080p Lite Recording — Preserve More Useful Video Detail
The DVR supports 1080p Lite recording across all channels. When 1080p Lite mode is enabled, you gain a recording option designed to provide an image effect similar to 1080p while working within the capabilities of this recorder platform.
Up to 6 TB Storage — Keep More Recorded Video Available
The recorder includes one SATA interface supporting a hard drive of up to 6 TB. More available storage can mean more recorded history at your disposal before older footage needs to be overwritten, depending on your cameras and recording settings.
Smart Search — Spend Less Time Looking for Footage
Having security footage only helps when you can find the moment you need. Smart Search is included to make recorded-video review more efficient, helping reduce the time spent working through footage during an incident review.
Hik-Connect & DDNS — Manage Your System Remotely
You should not have to stand in front of the recorder every time you need access to your surveillance system. Hik-Connect and DDNS support provide network-management options that make remote connectivity more practical.

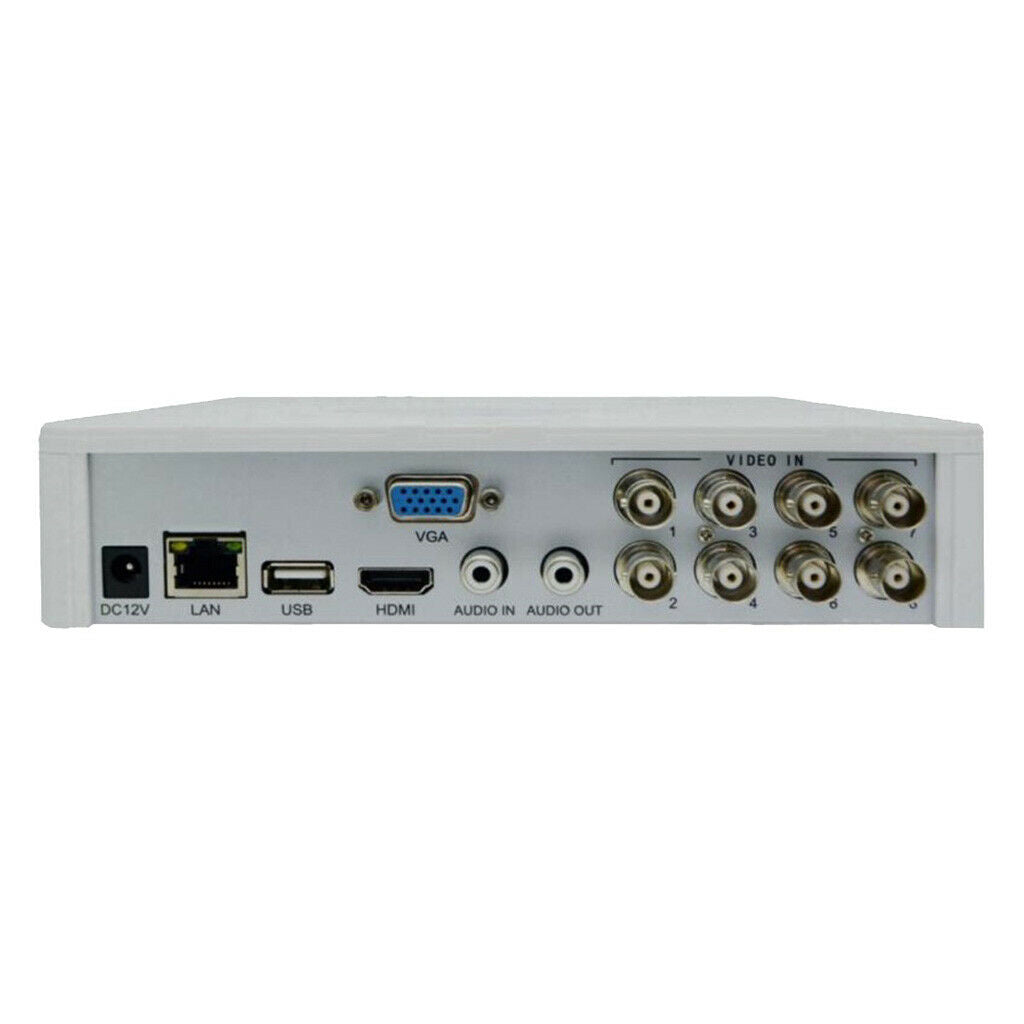

HDMI & VGA Output — Connect Directly to a Monitor
The DVR provides both HDMI and VGA video outputs, including support for output up to 1920 × 1080 at 60 Hz. This gives you convenient options for connecting a local monitor for live viewing, configuration, and playback.
Long-Distance HDTVI Transmission — Useful for Larger Installations
The series supports a maximum transmission distance of up to 1200 meters for a 720p HDTVI signal. That gives installers greater flexibility when cameras need to be positioned far from the recorder while using a compatible HDTVI surveillance setup.
Dual Stream — Better Flexibility for Local and Remote Viewing
Dual-stream support allows the recorder to provide separate video streams, giving the system additional flexibility for different recording and network viewing requirements.
Audio & Two-Way Audio Support — Add More Context to Surveillance
Video can tell you what happened, but audio can sometimes provide additional context. The DVR includes one RCA audio input, one RCA audio output, and supports two-way audio by reusing the first audio input.
Synchronous Playback — Review Multiple Cameras Together
Instead of reviewing cameras individually, the recorder supports synchronous playback across 4, 8, or 16 channels depending on the model. This can make it easier to understand how an event moved across different areas of a property.
Video Quality Diagnostics — Stay More Aware of Video Problems
The included VQD, or Video Quality Diagnostics, function adds another layer of system monitoring by providing video-quality diagnostic capability within the recorder.
What This Helps You Avoid
Imagine your current DVR stops working or no longer gives you the functionality you need. The cameras may still be usable, the cabling may already be running through the property, and yet replacing the recorder can suddenly turn into a much larger project because of compatibility concerns.
That is where a multi-format DVR can make a meaningful difference. By supporting HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras, the DS-7100HGHI-F1/N Series gives you more options for working with an existing surveillance infrastructure instead of unnecessarily starting from zero.
- Avoid being limited to only one supported analog video format.
- Avoid automatically replacing compatible existing cameras when changing recorders.
- Avoid wasting storage when H.264+ compression can improve encoding efficiency.
- Avoid spending unnecessary time searching through recorded footage with Smart Search.
- Avoid being limited to local-only management with Hik-Connect and DDNS support.
- Avoid choosing a recorder with the wrong capacity by selecting from 4-, 8-, or 16-channel models.
The result is a surveillance recorder designed to help you preserve more of what already works, add the features you actually need, and make managing recorded security video more convenient.
Who Is This DVR Best For?
- Homeowners replacing an existing compatible analog surveillance recorder
- Businesses upgrading an older coaxial CCTV system
- Properties using a mixture of compatible analog video technologies
- Installations requiring 4, 8, or 16 analog camera channels
- Users who want Hik-Connect network access
- Systems requiring up to 6 TB of internal hard drive capacity
- Installations where keeping existing compatible cameras and cabling is important
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
DS-7108HGHI-M1 Hikvision 8ch CCTV Recorder w/ HDD 8-ch 720p Mini 1U H.265 DVR
Out of stock
Choose your option
DS-7108HQHI-K1 8CH Turbo HD DVR H.265 Pro+ Hybrid Recorder Remote
Only 6 left
Choose your option
DS-7108HGHI-K1 Hikvision 8ch CCTV Recorder w/ HDD 1080p Lite Mini 1U H.265
Out of stock
Choose your option
DS-7208HGHI-F1 Hikvision 8ch CCTV Recorder w/ HDD 1080p Lite 1U H.264 DVR
Out of stock
Choose your option
Hikvision DS-7208HGHI-M1 8-Channel Smart H.265 Hybrid Security DVR Recorder
In stock
Choose your option
Hikvision DS-7208HGHI-K1 8 Channel Turbo HD DVR Hybrid Recorder H.265+ Remote Access 1080p Lite
Out of stock
Choose your option
Technical Specifications
Hikvision DS-7100HGHI-F1/N Series Turbo HD DVR
The Hikvision DS-7100HGHI-F1/N Series is a versatile Turbo HD DVR family designed for surveillance systems that need compatibility with HDTVI, AHD, HDCVI, CVBS, and IP cameras. Available in 4-, 8-, and 16-channel configurations, the series supports H.264+/H.264 compression, 1080p Lite recording, HDMI/VGA output, remote network access, and up to 6 TB of storage on a single SATA hard drive.
Its multi-format camera support makes it especially useful when upgrading an existing analog surveillance system or building a mixed-camera installation without being limited to a single video technology.
Key Features
- H.264+ and H.264 video compression support
- Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs
- Available in 4-, 8-, and 16-channel configurations
- Up to 8-channel / 16-channel 960p IP camera input on DS-7108HGHI-F1/N and DS-7116HGHI-F1/N
- Supports H.264+/H.264 IP cameras
- Maximum transmission distance of 1200 m for 720p HDTVI signals
- 1080p Lite recording support on all channels
- H.264+ improves encoding efficiency and helps reduce video storage requirements
- Dual-stream video support
- Video and video-with-audio stream support
- Smart Search for more efficient recorded-video playback
- VQD — Video Quality Diagnostics
- Hik-Connect support for remote network management
- DDNS support
- Configurable output bandwidth limit
- One SATA interface supporting up to 6 TB per HDD
- HDMI and VGA monitor outputs
- Two-way audio support using the first audio input
- 10/100 Mbps self-adaptive Ethernet interface
- Two rear-panel USB 2.0 interfaces
Available Models
Recording
Video & Audio Inputs
Video Output & Playback
Storage
Smart Functions
Network
Auxiliary Interfaces
Physical Interfaces
Power & Environmental
Dimensions & Weight
Accessories Found
Ideal Applications & Common Uses
- Upgrading existing coaxial CCTV systems while continuing to use compatible analog cabling and cameras.
- Hybrid surveillance installations using a combination of HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras.
- 4-, 8-, or 16-camera surveillance systems depending on the selected DVR model.
- Systems requiring local HDMI or VGA monitor viewing.
- Surveillance installations requiring remote network access through Hik-Connect or DDNS.
- Applications where H.264+ compression can help reduce video storage requirements.
- Installations requiring up to 6 TB of internal surveillance storage.
- Systems where Smart Search can simplify finding and reviewing recorded footage.
- Mixed analog/IP surveillance upgrades where replacing every existing camera at the same time is not desired.
Downloads
Frequently Asked Questions
The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. This allows it to work with several analog HD camera technologies as well as compatible H.264+/H.264 IP cameras.
Capacity depends on the model. The DS-7104HGHI-F1/N supports 4 analog video inputs and up to 4 IP video inputs, the DS-7108HGHI-F1/N supports 8 analog inputs and up to 8 IP inputs, and the DS-7116HGHI-F1/N supports 16 analog inputs and up to 16 IP inputs. IP camera input is supported at up to 960p resolution.
It supports 1080p Lite recording on all channels. When 1080p Lite mode is enabled, supported encoding resolutions include 1080p Lite, HD 720p Lite, WD1, 4CIF, VGA, and CIF.
The DVR has one SATA interface and supports one hard drive with a capacity of up to 6 TB.
Yes. The datasheet lists Hik-Connect and DDNS for network management. Supported network protocols also include TCP/IP, PPPoE, DHCP, DNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS.
Yes. The series supports both H.264+ and H.264 video compression. Hikvision states that H.264+ can improve encoding efficiency and reduce video storage costs.
Yes. The DVR provides one RCA audio input and one RCA audio output. Two-way audio is supported by reusing the first audio input. Audio compression is G.711u with a 64 Kbps audio bit rate.
The DVR provides HDMI and VGA output. Supported output resolutions include 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz, and 1024 × 768 at 60 Hz.
The datasheet specifies a maximum transmission distance of 1200 meters for a 720p HDTVI signal.
The DVR includes Smart Search for more efficient playback and VQD (Video Quality Diagnostics). Synchronous playback capacity is 4 channels on the DS-7104HGHI-F1/N, 8 channels on the DS-7108HGHI-F1/N, and 16 channels on the DS-7116HGHI-F1/N.
