The iDS-7208HQHI-M1/S supports 8 analog video channels through BNC inputs. The datasheet also says it supports 2 IP channels by default, up to 10 IP channels total, and up to 12 IP channels when Enhanced IP mode is enabled. IP camera support goes up to 6 MP resolution, though Enhanced IP mode notes each added channel is up to 4 Mbps. That gives buyers flexibility when they want to keep analog cameras in place while still adding IP cameras as the system grows.

Yes, that is one of the main reasons buyers look at this model. The datasheet states that deep learning-based Motion Detection 2.0 is enabled by default for all analog channels, and it can classify human and vehicle targets. It also says this can greatly reduce false alarms caused by objects like leaves and lights, and it supports quick search by object or event type. For everyday use, that means less wasted time reviewing nuisance alerts and more focus on events that are actually relevant.

Yes, it does. The datasheet lists deep learning-based perimeter protection and specifically mentions line crossing and intrusion detection. In the specification section, it says perimeter protection with human and vehicle analysis is supported on up to 4 channels. That is useful for buyers who want more targeted alerting around boundaries or restricted areas instead of relying only on general motion events.

No, and this is an important limitation to know before setup. The datasheet note says Motion Detection 2.0 and perimeter protection cannot be enabled at the same time, and enabling one makes the other unavailable. That means buyers need to decide which smart function matters more for the site. Knowing that ahead of time helps avoid confusion and makes system planning much easier.

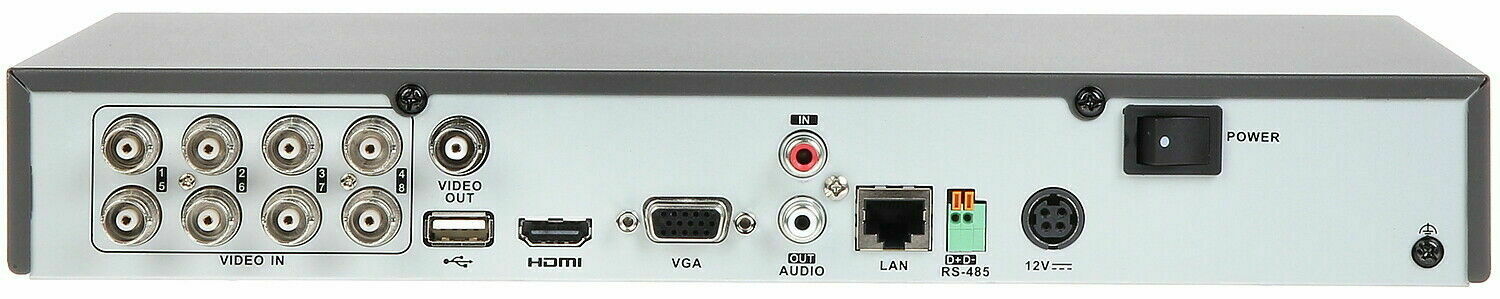

This model is designed to work with several common surveillance formats. The datasheet lists HDTVI, AHD, CVI, CVBS, and IP video inputs, which makes it useful for hybrid upgrades and mixed-camera environments. On the analog side, it supports 8 BNC inputs and coaxitron connection. For buyers, that flexibility helps reduce compatibility problems when replacing older cameras or expanding an existing system over time.

The datasheet says this DVR supports full-channel recording at up to 1080p resolution. It also lists encoding resolutions including 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, VGA, WD1, 4CIF, and CIF, with slightly different options depending on whether 1080p Lite mode is enabled. Frame rate depends on the input resolution and mode, but the unit supports up to 30 fps in several configurations. That gives buyers a practical mix of higher-resolution support and flexible recording settings for different camera types.

Yes. The datasheet specifically lists audio via coaxial cable as a key feature. In the interface section, it also states there is 1 RCA audio input, 1 RCA audio output, and 8 channels of audio via coaxial cable, with two-way audio using the first audio input. That matters because supported audio-over-coax setups can simplify installation and reduce extra cabling compared with separate audio wiring.

The iDS-7208HQHI-M1/S has 1 SATA interface for internal storage. The datasheet says it supports up to 10 TB capacity for each disk. It also highlights H.265 Pro+ compression, which is intended to improve encoding efficiency and reduce data storage costs. For buyers, that means a compact DVR can still provide meaningful retention, especially when paired with efficient compression settings.

Yes, the datasheet includes smart search for efficient playback. It also says quick search by object or event type is supported under Motion Detection 2.0. In addition, the recorder supports 8-channel synchronous playback, which helps when reviewing multiple camera views together. That can save time during investigations because you are not forced to scrub through long recordings one camera at a time.

Yes. The datasheet lists Hik-Connect and DDNS for easy network management, and it supports up to 64 remote connections. It also includes an RJ45 10M/100M self-adaptive Ethernet interface and supports network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. For buyers, that means the recorder is built to be more convenient for remote viewing and ongoing system access rather than requiring everything to be done only at the local monitor.
