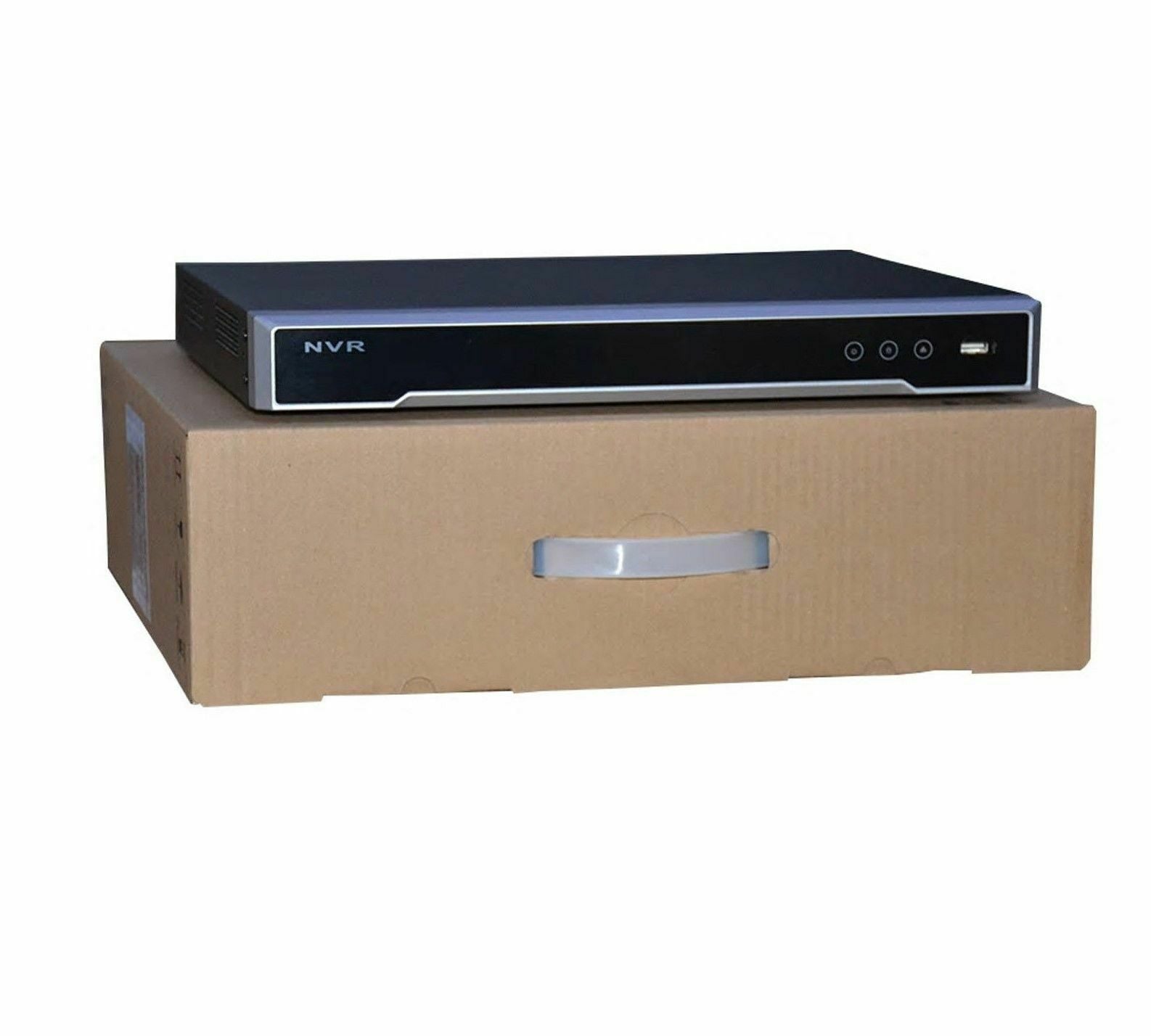

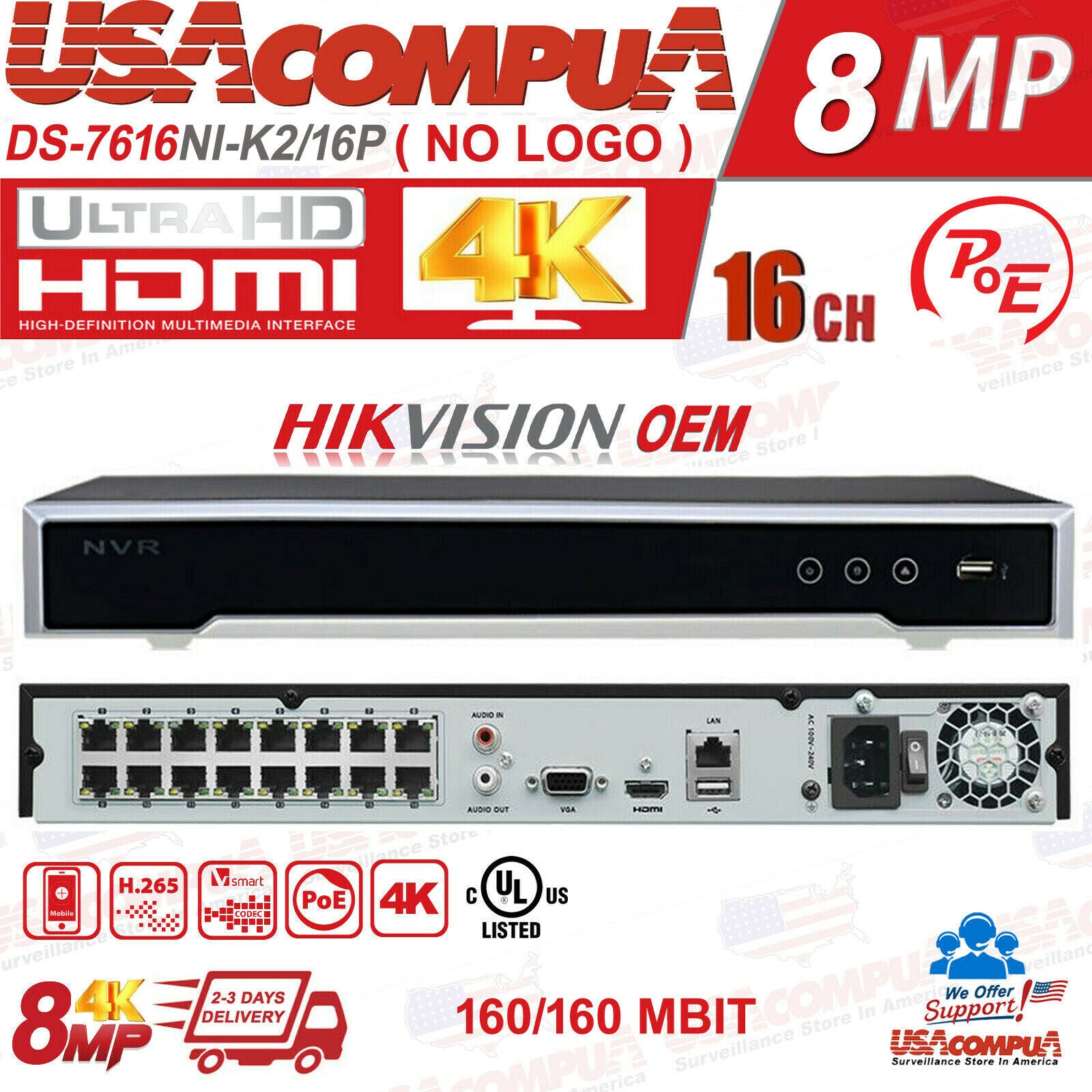

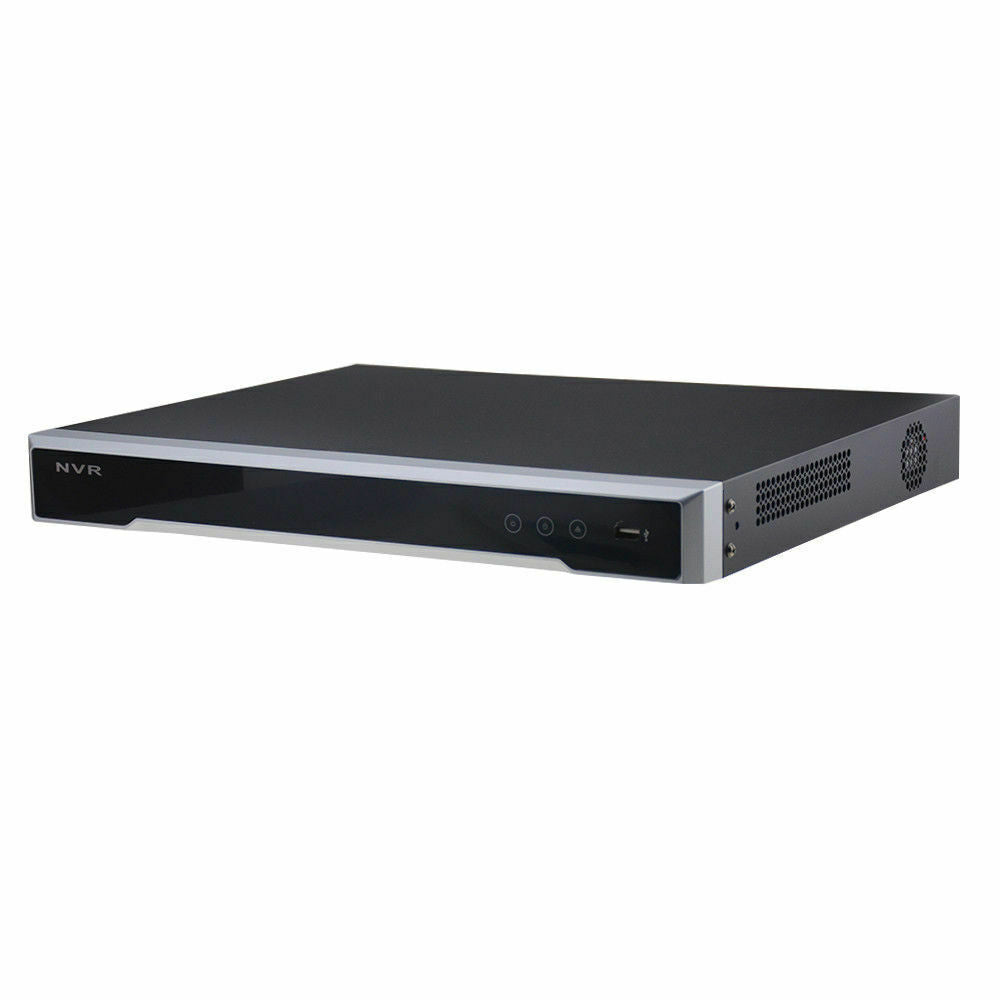

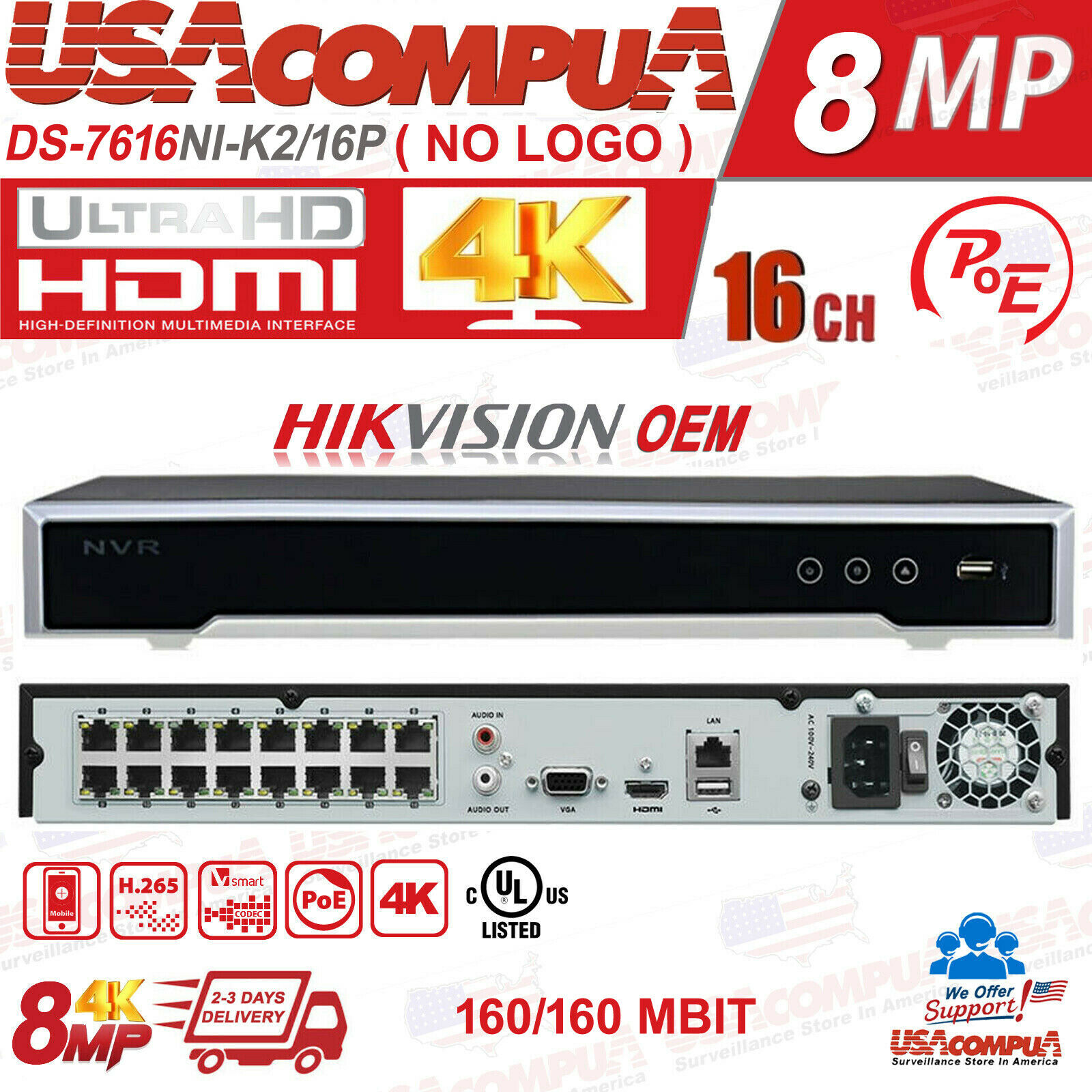

Hikvision DS-7616NI-K2/16P 16-Channel PoE 4K Network Video Recorder
When you are building a security system with multiple IP cameras, the recorder becomes the foundation that determines how easily everything connects, how much video you can store, and how efficiently you can review what happened. The Hikvision DS-7616NI-K2/16P combines 16 built-in PoE ports, up to 160 Mbps incoming bandwidth, high-resolution recording, and expandable dual-HDD storage in one centralized NVR.
Instead of adding unnecessary complexity as your camera system grows, you get a recorder designed to handle up to 16 IP cameras while giving you 4K display output, H.265+ compression, smart-camera event support, and Hik-Connect network management.
So the question becomes: would you rather build around a recorder that may become a limitation later, or start with the connectivity, storage flexibility, and monitoring capabilities needed to manage a larger surveillance system from the beginning?
Why Buyers Choose the DS-7616NI-K2/16P
The DS-7616NI-K2/16P is designed for buyers who want more than somewhere to simply store camera footage. Its combination of built-in PoE, high incoming bandwidth, flexible storage, high-resolution support, and smart-camera integration helps create a surveillance system that is easier to install, easier to monitor, and better prepared as your security needs grow.
16 IP Camera Channels — Protect More Areas From One Recorder
Connect up to 16 IP cameras to one NVR, giving you the flexibility to cover entrances, driveways, hallways, parking areas, offices, warehouses, and other important locations without needing a separate recorder for every section of the property.

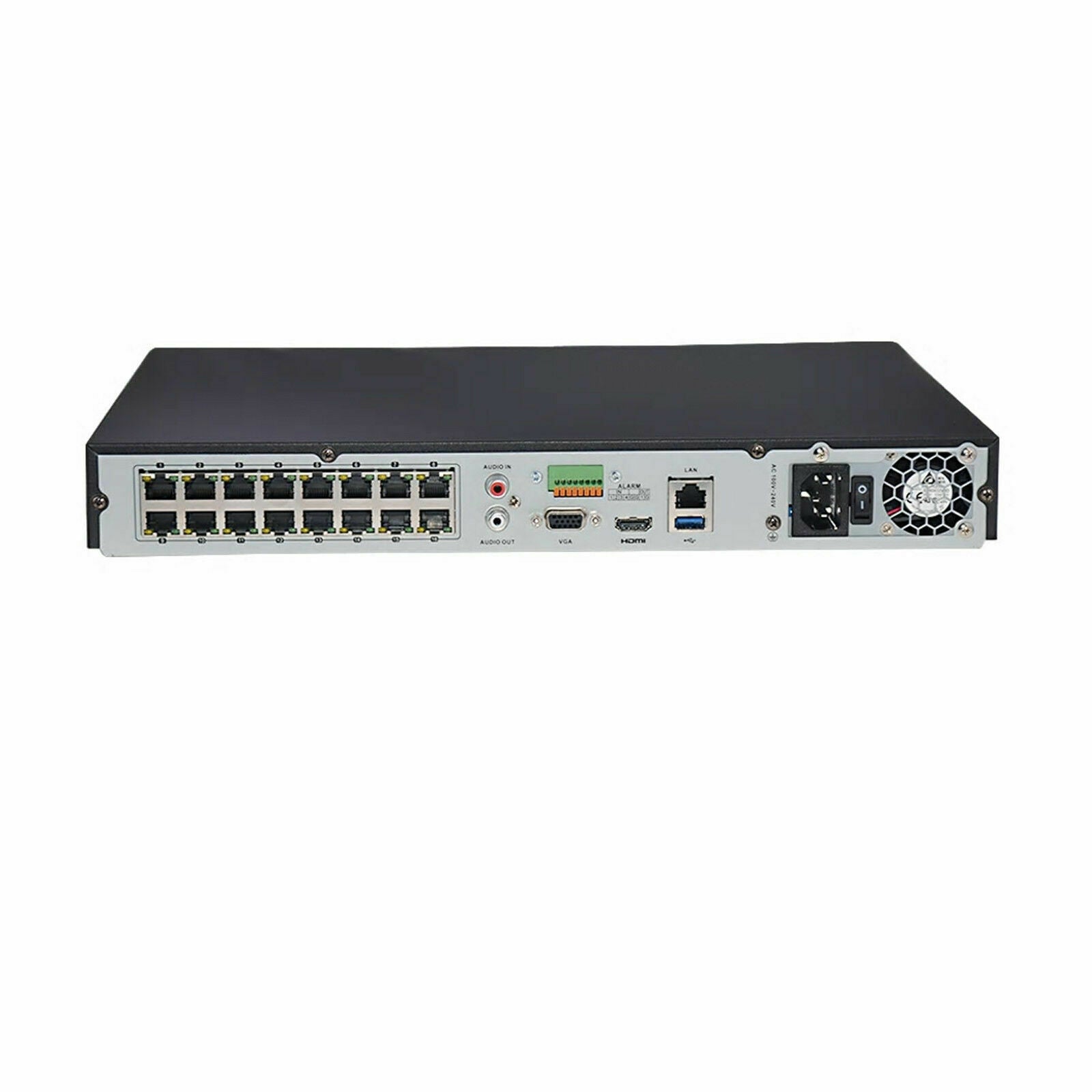

16 Built-In PoE Ports — A Cleaner, Simpler Installation
All 16 channels include independent PoE network interfaces. Compatible PoE cameras can receive power and network connectivity through their Ethernet connection to the recorder, helping reduce the additional networking equipment and cabling complexity that can come with larger camera systems.
160 Mbps Incoming Bandwidth — Built for Multi-Camera Video
With up to 160 Mbps of incoming bandwidth, the NVR is designed to receive video from a substantial multi-camera IP system. That gives you more room to build a higher-resolution surveillance setup without choosing a recorder simply because it has enough physical camera ports.
Up to 8 MP Recording Resolution — Preserve the Detail That Matters
The recorder supports recording resolutions up to 8 MP. When paired with compatible cameras and properly configured, higher-resolution recording can preserve more visual information when reviewing important footage after an incident.
4K HDMI Output — See Your Security System in Greater Detail
The HDMI output supports up to 4K (3840 × 2160) at 30 Hz, allowing you to connect the recorder to a compatible 4K display and take advantage of a high-resolution local monitoring experience.
Independent HDMI & VGA Outputs — More Flexible Monitoring
The HDMI and VGA interfaces support independent video output. This gives you additional flexibility when deciding how and where your surveillance video is displayed instead of limiting the recorder to a single duplicated display configuration.
H.265+ Compression — Make Better Use of Your Storage
Hikvision's H.265+ compression can reduce storage requirements by up to 75% according to the manufacturer. That means your available hard-drive space can be used more efficiently instead of being consumed unnecessarily by larger video files.
Dual SATA HDD Bays — Build the Storage Capacity You Need
The recorder includes two SATA interfaces and supports up to 10 TB per HDD. This gives you room to configure substantial local recording capacity based on the number of cameras, resolution, bitrate, and retention time your system requires.
16-Channel Synchronous Playback — Review Multiple Cameras Together
When something happens, looking at only one camera can leave part of the story missing. Support for up to 16-channel synchronous playback lets you review recorded video across multiple channels together, helping you understand how an event developed across different camera locations.
Smart Camera Event Support — Focus Attention on Important Activity
The NVR supports multiple VCA events and configurable smart functions from compatible cameras, including motion detection, line crossing, intrusion detection, and ANPR. Instead of relying only on hours of conventional recorded video, a properly configured compatible system can use event-based intelligence to make important activity easier to identify.
Hik-Connect Support — Easier Network Management
Hik-Connect support provides an additional way to manage the recorder over the network, helping make your surveillance system more accessible than a solution designed only around the monitor physically connected to the NVR.
Stream Over TLS Encryption — More Secure Video Transmission
The recorder supports stream-over-TLS encryption technology, providing a more secure method of transmitting video streams and adding another layer of protection to a system carrying potentially sensitive surveillance footage.
Video & Audio Support — Get More Context From an Event
The DS-7616NI-K2/16P supports video and audio streams along with an RCA audio input, RCA audio output, and one-channel two-way audio. With compatible equipment, audio can provide additional context that video alone may not capture.
4 Alarm Inputs / 1 Alarm Output — More Integration Possibilities
Four alarm inputs and one alarm output give installers additional options when designing a surveillance system that needs to interact with compatible external alarm or signaling equipment.
What This Helps You Avoid
Imagine installing cameras around a property only to realize later that the recorder has become the bottleneck: not enough PoE connections, limited storage expansion, insufficient bandwidth, or a monitoring setup that becomes increasingly difficult to manage as more cameras are added.
Then an incident happens. Now you are searching through footage from multiple areas, trying to understand where someone came from, what happened next, and whether another camera captured the missing part of the event. That is exactly when the capabilities of the recorder start to matter.
The DS-7616NI-K2/16P gives you one platform for as many as 16 cameras, built-in PoE connectivity, dual HDD storage, 16-channel synchronous playback, high-resolution recording support, and compatible smart-camera events. Instead of designing your system around the limitations of the recorder, you have more flexibility to design the surveillance coverage around the property itself.
And ultimately, isn't that the purpose of the recorder? Not simply to accumulate video, but to make sure that when you actually need your security system, the footage is organized, accessible, and useful enough to help you understand what happened.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7616NI-K2/16P 16-Channel PoE Network Video Recorder
The Hikvision DS-7616NI-K2/16P is a 16-channel network video recorder designed for IP surveillance systems that need centralized recording, built-in PoE connectivity, high-resolution video support, and flexible storage.
With 16 independent PoE interfaces, up to 160 Mbps incoming bandwidth, H.265+ compression, 4K HDMI output, and support for two SATA hard drives, this NVR provides a practical platform for building or expanding a multi-camera security system.
HDMI and VGA can operate as independent outputs, while support for VCA events, compatible camera smart functions, Hik-Connect, and 16-channel synchronous playback makes the recorder suitable for applications where efficient monitoring and video review are important.
Key Features
- Up to 16-channel IP camera inputs
- 16 built-in independent PoE network interfaces
- Up to 160 Mbps incoming bandwidth
- Up to 160 Mbps outgoing bandwidth
- Supports H.265+, H.265, H.264+, and H.264 video formats
- H.265+ compression can reduce storage space by up to 75%
- Up to 2-ch @ 8 MP, 4-ch @ 4 MP, or 8-ch @ 1080p decoding capacity
- Supports recording resolutions up to 8 MP
- 16-channel synchronous playback
- HDMI output supports up to 4K resolution
- Independent HDMI and VGA video outputs
- 2 SATA interfaces with up to 10 TB capacity per HDD
- Supports multiple VCA video content analytics events
- Supports compatible camera smart functions including motion detection, line crossing detection, intrusion detection, and ANPR
- Stream over TLS encryption for more secure stream transmission
- Hik-Connect support for network management
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- IEEE 802.3 af/at PoE support
- 4 alarm inputs and 1 alarm output
Video and Audio
Decoding
Network
Power over Ethernet (PoE)
Storage and Playback
Smart Functions
Security and Reliability
Auxiliary Interfaces
General
Certifications
Physical Interfaces
Available Model
Accessories Found in the Datasheet
- Mounting Ear: Optional accessory for rack mounting.
No other specific accessory models are listed in the provided datasheet.
Ideal Applications & Common Uses
The datasheet does not provide a dedicated application list. Based on its specified 16-channel IP recording, built-in PoE, storage, video-output, and network capabilities, this NVR is well suited for:
- Multi-camera IP surveillance systems with up to 16 cameras
- Residential security systems requiring numerous camera locations
- Small and medium-sized business surveillance
- Retail stores and commercial properties
- Offices and professional facilities
- Warehouses and storage facilities
- Systems using PoE cameras where simplified cabling is preferred
- Installations requiring local 4K monitor output
- Systems requiring extended recording capacity with two HDD bays
- Compatible smart-camera installations using VCA or ANPR functions
Downloads
Frequently Asked Questions
The DS-7616NI-K2/16P supports up to 16 IP camera inputs, making it suitable for surveillance systems with as many as 16 cameras.
Yes. The NVR has 16 independent RJ-45 10/100 Mbps PoE interfaces, allowing compatible IP cameras to receive network connectivity and power through the recorder. The PoE interfaces support IEEE 802.3af/at and have a power rating of up to 200 W.
The NVR has two SATA interfaces and supports up to 10 TB per HDD. With two supported 10 TB drives installed, the two bays provide up to 20 TB of total raw HDD capacity.
The datasheet lists recording resolutions up to 8 MP. Its decoding capability is up to 2 channels at 8 MP at 30 fps, 4 channels at 4 MP at 30 fps, or 8 channels at 1080p at 30 fps.
Yes. The HDMI output supports resolutions up to 4K (3840 × 2160) at 30 Hz. The NVR also includes a VGA output supporting up to 1920 × 1080 at 60 Hz.
Yes. The datasheet specifies independent HDMI and VGA video output, allowing the two display interfaces to operate independently.
The recorder supports H.265+, H.265, H.264+, and H.264 video formats. According to the datasheet, H.265+ compression can reduce required storage space by up to 75%.
Yes. The datasheet lists Hik-Connect support for easy network management. The NVR also includes a self-adaptive 10/100/1000 Mbps Ethernet interface.
Yes. The NVR supports multiple VCA (Video Content Analytics) events and configurable smart functions from supported cameras, including motion detection, line crossing detection, intrusion detection, and ANPR.
Yes. The NVR has one RCA audio input and one RCA audio output. It also supports one-channel two-way audio through the RCA audio input.
