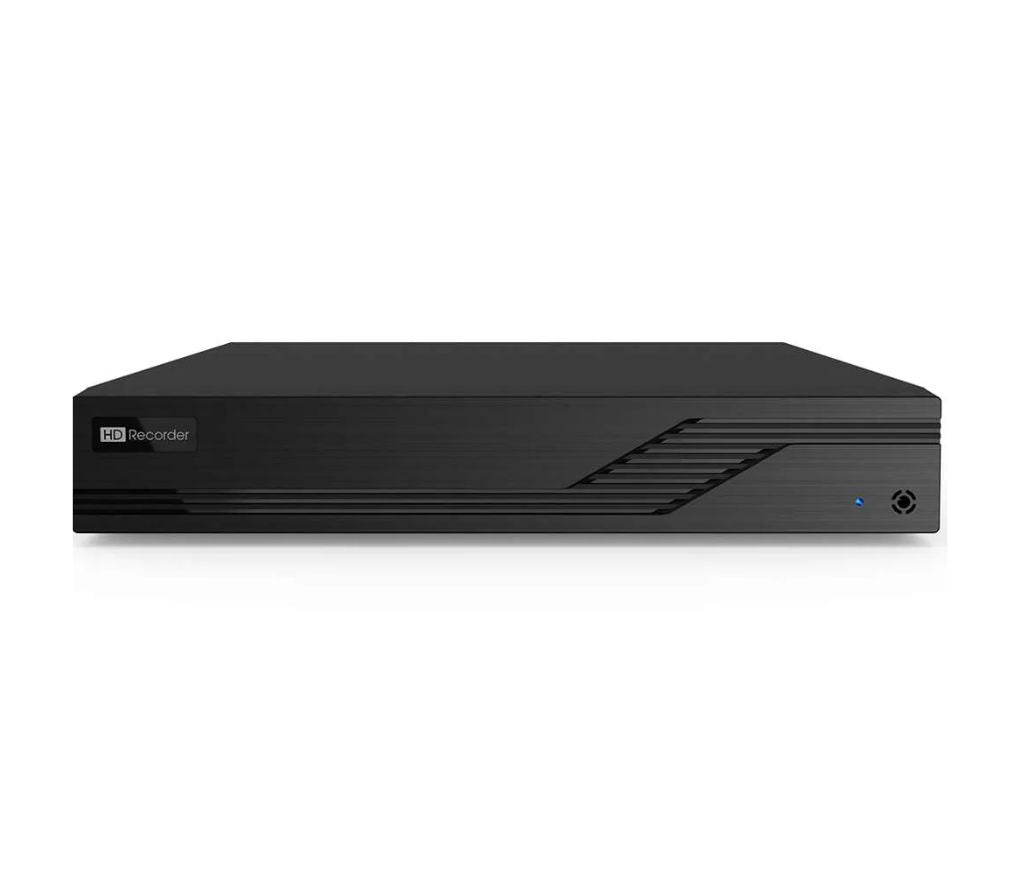

ED8016H5-BN2 16-Channel Hybrid DVR for Analog and IP Security Cameras

The ED8016H5-BN2 supports 16 analog video inputs through BNC connections and also supports 8 IP channels, with IP input expandable up to 16 channels. The datasheet also lists a total input capacity of 24 channels, which makes it useful for buyers who want to mix existing analog cameras with newer IP cameras in the same system. That matters in real installations because it gives you more flexibility to upgrade gradually instead of replacing everything at once. It is a practical fit for users who need to keep legacy cameras working while adding newer coverage where needed.

Yes, this model is built as a hybrid DVR and the datasheet specifically says it can connect analog and IP cameras simultaneously. It supports TVI, AHD, and CVI analog formats, and it also supports IP video input up to 5MP depending on the channel setup. The datasheet further states that 8 analog video inputs can be switched to 8 IP video inputs, which gives you more freedom when planning system expansion. For buyers, that means less pressure to do a full rip-and-replace upgrade when your camera mix changes over time.

The datasheet lists input resolution up to 5MP at 30fps, with analog channel support for TVI, AHD, and CVI at 5MP, 4MP, 1080P, 720P, and WD1. For encoding, it supports 5MP Lite, 4MP Lite, 1080P, 1080P Lite, 720P, and WD1. The recording frame rates vary by mode, including 5MP Lite at 10fps and 4MP Lite or 1080P at 12fps PAL or 15fps NTSC. That gives buyers a clearer picture of what this recorder can realistically handle, especially if they are balancing image detail, frame rate, and storage efficiency.

Yes, the datasheet lists H.264 and H.265 compression, and the feature section specifically highlights standard H.265 high profile compression. That matters because lower bitrate recording can help reduce storage use while still keeping video quality at a useful level for surveillance. In everyday use, this can mean longer recording retention on the same hard drive and less strain on bandwidth for remote viewing. For buyers trying to stretch storage without immediately buying larger drives, that is a meaningful advantage.

The datasheet lists one SATA interface with support for up to 10TB of storage. It also supports local backup to a U disk or USB mobile hard drive, along with network backup. This is important because buyers often want to know not just how much footage they can store, but also how easy it is to move footage off the recorder when needed. For small to mid-size systems, a 10TB ceiling can be a workable balance between retention time and system cost, especially when combined with H.265 compression.

Yes, the datasheet says the unit supports remote control through Web or CMS for preview, playback, backup, PTZ, and configuration. It also lists support for mobile surveillance on iOS and Android devices, along with NAT and QR code scanning by mobile phones. On the network side, it supports protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, and SMTP. For buyers, that means the recorder is built for remote access and everyday monitoring without requiring you to stay in front of the local display.

Yes, it supports PTZ preset and auto cruise, with up to 255 presets and 8 cruises listed in the datasheet. It also includes an RS-485 interface, which is commonly used for PTZ control in compatible analog camera setups. That matters because PTZ control can make a big difference when you need to move a camera, monitor wider areas, or automate patrol patterns. For buyers using controllable cameras, this helps turn the recorder into more than just a storage device.

The datasheet states that the ED8016H5-BN2 supports 16-channel simultaneous playback. It also supports playback functions such as play, pause, fast forward, fast backward, and digital zoom, plus search modes including time slice, time, event, and tag search. This matters when you need to investigate an incident across multiple cameras without jumping in and out of separate clips. For many users, faster playback review means less time spent hunting for the moment that actually matters.

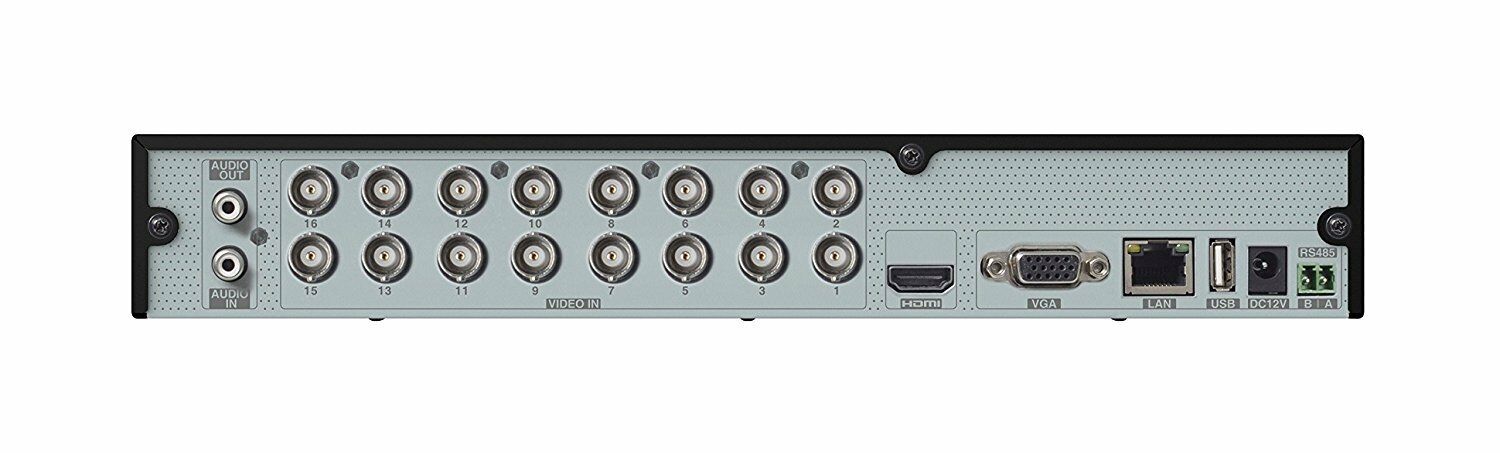

The recorder includes one HDMI output, one VGA output, and one BNC CVBS output that can be used as the main or spot output. The HDMI and VGA outputs support resolutions up to 1920 × 1080, and the feature list also highlights 1080P output support. This is useful for buyers who want flexibility in the kind of monitor they connect, whether that is a modern HDMI display or a legacy VGA screen. It also helps in installations where a spot monitor or alternate display output is part of the plan.

The datasheet says the product can meet different security requirements of home, financial, commerce, enterprise, transportation, and government environments. That makes sense because the unit combines multi-format camera support, 16-channel playback, remote access, PTZ support, and flexible backup options in one recorder. In practical terms, it is well suited for buyers who need to support a mixed camera environment or who want to expand an older analog system without losing room to grow. It is especially appealing where upgrade flexibility matters as much as basic recording.
