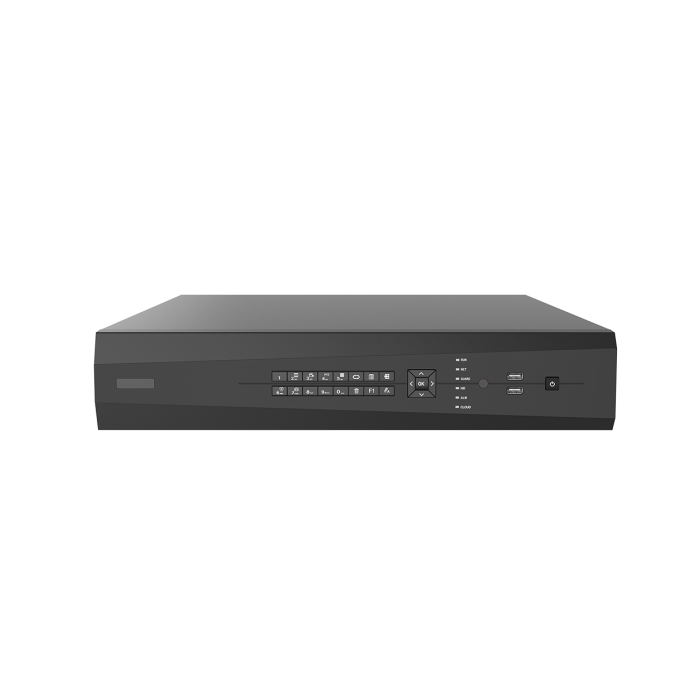

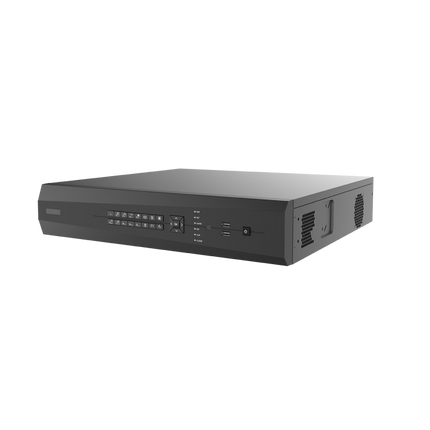

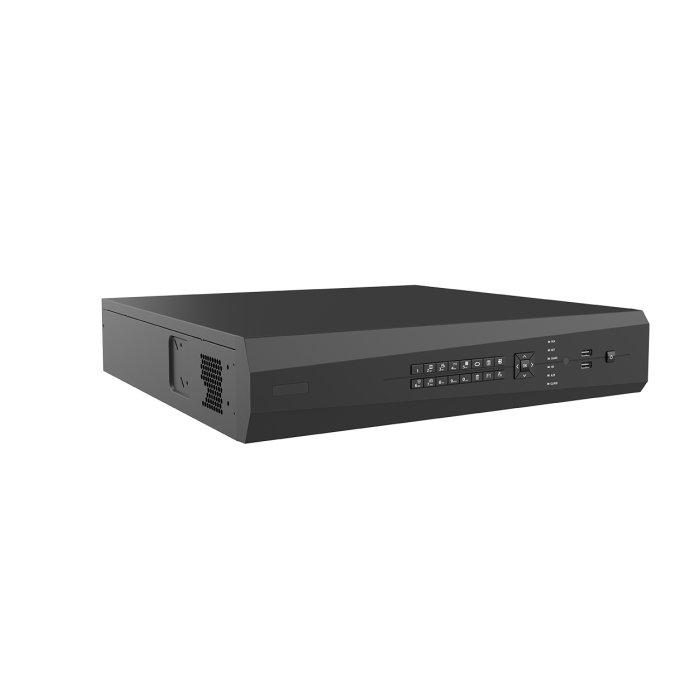

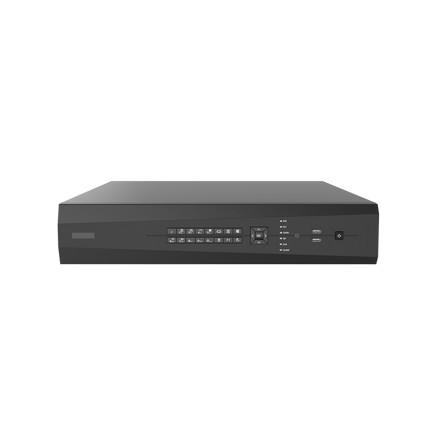

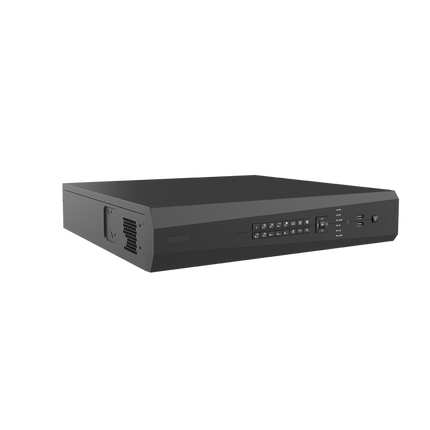

VSN8864-R 64-Channel Enterprise Network Video Recorder
When you're responsible for protecting a large facility, the last thing you need is an NVR that struggles with bandwidth, storage, or compatibility. The VSN8864-R is built for demanding surveillance environments, supporting up to 64 IP cameras, dual 4K display outputs, intelligent analytics, and enterprise-grade RAID storage. Whether you're securing a business campus, warehouse, retail chain, or critical infrastructure, this recorder gives you the performance and reliability needed to keep every camera recording without compromise. Its support for Ultra H.265 compression and up to 12MP recording ensures you capture more detail while maximizing storage efficiency.
Why Buyers Choose This Model
64-Channel Capacity — Grow Without Replacing Your Recorder
Manage up to 64 IP cameras from a single recorder, making expansion simple as your surveillance needs increase without investing in additional NVRs.
Up to 12MP Recording — Capture Critical Details
Higher-resolution recording helps identify faces, license plates, and important evidence with greater clarity, giving you confidence when reviewing footage.
Ultra H.265 Compression — Store More Video for Longer
Advanced compression significantly reduces storage requirements while maintaining excellent image quality, helping lower long-term storage costs.
Enterprise RAID Support — Protect Valuable Evidence
Support for RAID 0, 1, 5, 6, and 10 provides flexible storage redundancy options to help safeguard recordings against hard drive failures.
Eight SATA Drive Bays — Massive Storage Capacity
Support for up to eight hard drives with capacities of up to 10TB each allows extended recording retention, even in high-resolution surveillance systems.
Dual 4K HDMI Outputs — Monitor More with Greater Detail
Two independent HDMI outputs plus VGA make it easy to manage multiple displays in control rooms while viewing crystal-clear 4K surveillance footage.
384 Mbps Bandwidth — Handle Heavy Camera Loads
High incoming and outgoing bandwidth ensures smooth recording and remote viewing across large surveillance deployments.
ONVIF Compatibility — Greater Camera Flexibility
Works with ONVIF Profile S, G, and T compliant cameras, allowing integration with many third-party IP camera brands.
Built-In Smart Analytics — Find Events Faster
Face detection, intrusion detection, cross-line detection, people counting, behavior search, and other intelligent functions help operators quickly locate important events instead of manually reviewing hours of footage.
ANR Technology — Recording Even During Network Interruptions
Automatic Network Replenishment improves recording reliability by helping preserve video when temporary network disruptions occur.
What This Helps You Avoid
Imagine discovering a security incident only to find that your recorder ran out of storage, couldn't support additional cameras, or missed crucial footage because of a network interruption. Those situations can lead to lost evidence, increased costs, and unnecessary downtime.
The VSN8864-R is designed to eliminate those concerns with high-capacity storage, enterprise RAID protection, intelligent video analytics, and reliable recording performance. Instead of worrying about system limitations, you can focus on protecting your property with confidence, knowing your surveillance system is built to scale alongside your security requirements.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Video Input
Network
Video Output
Video Decoding
Storage
Smart Functions
Interfaces
General
Downloads
Frequently Asked Questions
The VSN8864-R supports up to 64 IP camera channels, making it suitable for large commercial and enterprise surveillance installations. :contentReference[oaicite:0]{index=0} :contentReference[oaicite:1]{index=1}
The recorder supports Ultra H.265, H.265, and H.264 video compression formats, helping optimize storage efficiency while maintaining high-quality video recording. :contentReference[oaicite:2]{index=2} :contentReference[oaicite:3]{index=3}
Yes. It supports third-party IP cameras that conform to ONVIF Profile S, Profile G, and Profile T, allowing compatibility with a wide range of surveillance cameras. :contentReference[oaicite:4]{index=4}
The VSN8864-R supports recording at resolutions up to 12 Megapixels (12MP), enabling high-detail video capture for professional surveillance applications. :contentReference[oaicite:5]{index=5} :contentReference[oaicite:6]{index=6}
The recorder includes 8 SATA hard drive interfaces, with support for hard drives up to 10TB each. It also features one eSATA interface for additional storage options. :contentReference[oaicite:7]{index=7} :contentReference[oaicite:8]{index=8}
Yes. The NVR supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10, providing multiple options for balancing storage performance and data redundancy. :contentReference[oaicite:9]{index=9} :contentReference[oaicite:10]{index=10}
The recorder provides two HDMI outputs and one VGA output. Both HDMI outputs support resolutions up to 4K (3840 × 2160), and all outputs can operate independently. :contentReference[oaicite:11]{index=11} :contentReference[oaicite:12]{index=12}
The recorder supports analytics including face detection, intrusion detection, cross-line detection, audio detection, defocus detection, scene change detection, auto tracking, object left behind, object removed, face search, behavior search, and people counting. :contentReference[oaicite:13]{index=13}
The VSN8864-R features dual Gigabit RJ45 Ethernet ports, supports up to 384 Mbps incoming and outgoing bandwidth, allows up to 128 remote users, and supports protocols including P2P, UPnP, NTP, DHCP, and PPPoE. :contentReference[oaicite:14]{index=14} :contentReference[oaicite:15]{index=15}
The recorder operates on a 100–240 VAC power supply, consumes 25W or less (without hard drives), measures 442 × 426 × 89 mm, and weighs 5.7 kg or less (without HDDs). :contentReference[oaicite:16]{index=16}
