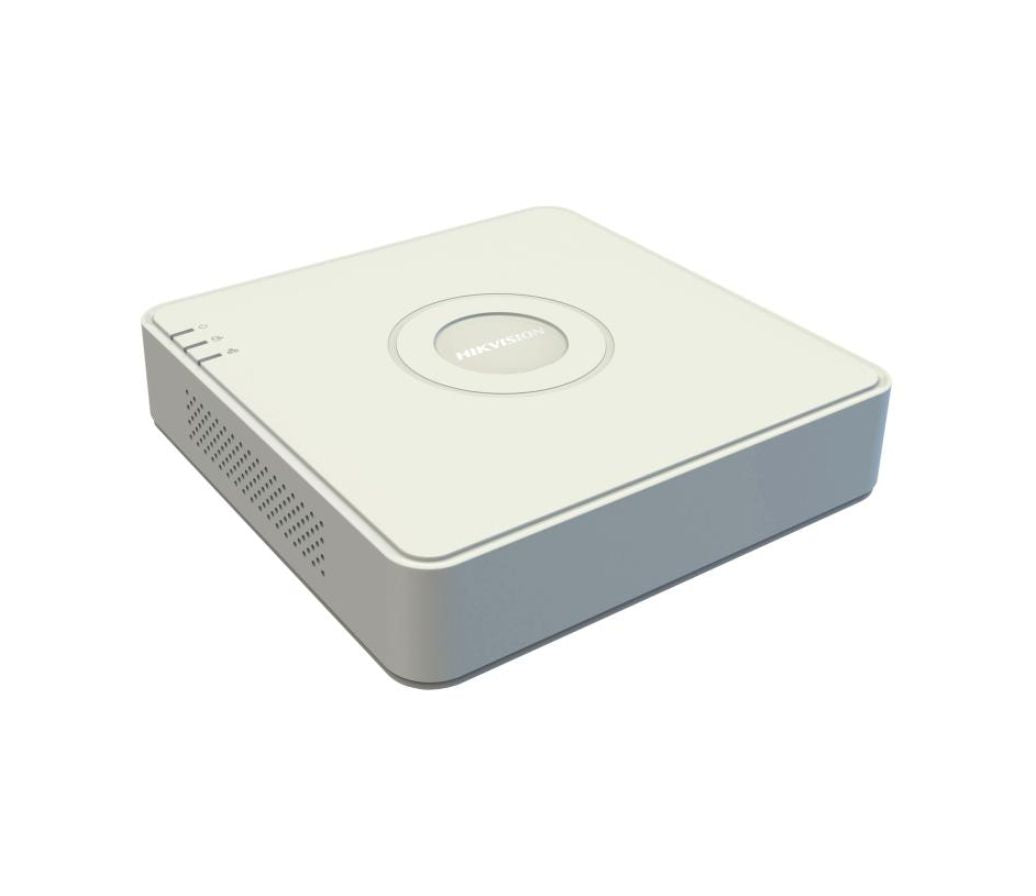

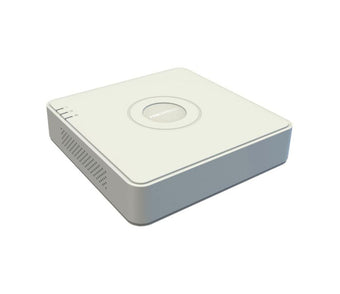

Hikvision DS-7100HGHI-F1 Series 4/8/16-Channel Turbo HD DVR with 1080p Lite & H.264+
Hikvision DS-7100HGHI-F1 Series 4/8/16-Channel Turbo HD DVR with 1080p Lite & H.264+
Out of stock
Description
Description
Hikvision DS-7100HGHI-F1 Series Turbo HD DVR
What would it mean to have a surveillance recorder that works with your existing analog cameras while giving you a clearer, more manageable security system? The Hikvision DS-7100HGHI-F1 Series combines HDTVI, AHD, and CVBS camera compatibility with real-time 1080p Lite recording and efficient H.264+ compression.
With 4-, 8-, and 16-channel models available, you can select the capacity that fits your property today without making the system more complicated than necessary. Smart Search, multi-channel playback, Full HD monitor output, and network-management options help you review activity and manage your system with greater confidence.
Why Buyers Choose This DVR Series
When something important happens, would you rather spend valuable time searching through recordings or have tools that help you reach the relevant footage more efficiently? This DVR is designed to make everyday surveillance recording, playback, and system management simpler.
4-, 8-, or 16-Channel Options — Choose the Right Capacity
Select the DS-7104HGHI-F1 for up to four analog cameras, the DS-7108HGHI-F1 for up to eight, or the DS-7116HGHI-F1 for up to sixteen. You get a recorder sized for your home or business without paying for unnecessary camera capacity.
Multiple Analog Camera Formats — Preserve More of Your Existing System
Support for HDTVI, AHD, and CVBS cameras gives you greater flexibility when building or updating a coaxial surveillance system. This can help you avoid replacing compatible cameras and cabling simply because you need a new recorder.
Real-Time 1080p Lite Recording — Capture More Useful Video
When 1080p Lite mode is enabled, the DVR supports real-time 1080p Lite recording across every channel. The datasheet describes the image effect as similar to 1080p, giving you more useful recorded detail than lower-resolution recording modes.
H.264+ Compression — Make Better Use of Storage
One-key H.264+ compression can improve encoding efficiency by up to 50%. That means your system can reduce storage requirements and associated storage costs while continuing to record the activity that matters.
Up to 6 TB of HDD Capacity — Keep More Footage Available
The single SATA interface supports one hard drive with a capacity of up to 6 TB. More available storage can give you a longer recording window before older footage must be overwritten, depending on your recording settings and camera activity.
Smart Search — Find Important Events Faster
Smart Search helps make playback more efficient. Instead of manually reviewing long periods of ordinary activity, you gain a more practical way to locate the recording you need.
Synchronous Playback — Review Multiple Areas Together
Play back 4, 8, or 16 channels simultaneously, depending on the selected model. This helps you understand how an event moved across different camera views instead of evaluating each recording separately.
HDMI and VGA Output — View the System in Full HD
Connect the DVR to a compatible monitor using HDMI or VGA and display video at resolutions up to 1920 × 1080. You get a clear local viewing experience for live monitoring, system configuration, and recorded-video review.
Dual-Stream Support — Manage Video More Efficiently
Dual-stream operation allows the DVR to provide separate video streams for different viewing and recording requirements. This helps the system use available network resources more efficiently.
Audio and Two-Way Audio Connections — Add Context to Video
One RCA audio input, two-way audio support, and one RCA audio output let you incorporate compatible audio equipment. When audio is appropriate for the installation, it can provide valuable context that video alone may not capture.
Network Connectivity — Simplify System Management
A self-adaptive 10/100 Mbps Ethernet connection supports Hik Cloud P2P, HiDDNS, HTTPS, and other network protocols. Configurable output-bandwidth limits give you additional control over how the recorder uses the available network connection.
Video Quality Diagnostics — Recognize Problems Sooner
Video Quality Diagnostics helps identify video-quality issues that might otherwise go unnoticed. This gives you an opportunity to address a problem before you discover that important footage is unclear or unavailable.
Password-Recovery Options — Reduce the Risk of Losing Access
Administrator unlock-pattern login provides a convenient way to access the device, while an exportable GUID file supports password resetting. These tools help make device access and password recovery more manageable.
Key Benefits at a Glance
- Supports 4, 8, or 16 analog camera channels, depending on the model.
- Compatible with HDTVI, AHD, and CVBS analog cameras.
- Supports long-distance transmission over UTP and coaxial cable.
- Real-time 1080p Lite recording across all channels when enabled.
- H.264+ compression can improve encoding efficiency by up to 50%.
- One SATA interface supports an HDD with up to 6 TB of capacity.
- Smart Search helps make recorded-video review more efficient.
- Supports 4-, 8-, or 16-channel synchronous playback by model.
- HDMI and VGA display output at resolutions up to 1920 × 1080.
- Supports video-only or combined video-and-audio streams.
- Includes two USB 2.0 interfaces for compatible USB devices.
- Supports Video Quality Diagnostics and configurable output bandwidth.
What This Helps You Avoid
A Recorder That Cannot Work With Your Existing Cameras
Replacing a DVR can become unnecessarily expensive when the new recorder does not support the cameras already installed. Compatibility with HDTVI, AHD, and CVBS formats gives you more flexibility to retain compatible parts of your current analog system.
Running Out of Storage Faster Than Expected
Inefficient compression can consume valuable hard-drive space and shorten your available recording history. H.264+ compression and support for an HDD of up to 6 TB help you use storage more effectively.
Searching Through Hours of Unnecessary Footage
When an incident occurs, slowly reviewing one camera at a time can add frustration to an already stressful situation. Smart Search and synchronous multi-channel playback help you investigate activity more efficiently and see the event from multiple viewpoints.
Discovering Video Problems After an Incident
A camera view is only valuable if its video remains usable. Video Quality Diagnostics helps bring quality problems to your attention so they can be addressed before critical footage is needed.
Choosing a System That Is Too Small or Unnecessarily Large
With 4-, 8-, and 16-channel versions, you can match the recorder to the number of areas you actually need to protect. The result is a more purposeful surveillance system that gives you useful coverage, efficient playback, and greater confidence when reviewing an incident.
Product claims are based on the supplied DS-7100HGHI-F1 Series datasheet. Additional model research was conducted using Hikvision’s official product information.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7100HGHI-F1 Series Turbo HD DVR
The Hikvision DS-7100HGHI-F1 Series gives homes and businesses a practical way to record and manage HDTVI, AHD, and conventional analog surveillance cameras from one recorder. Available in 4-, 8-, and 16-channel models, the series supports real-time 1080p Lite recording, HDMI/VGA Full HD display, remote network access, and intelligent playback tools. H.264+ compression can improve encoding efficiency by up to 50%, helping reduce storage requirements without sacrificing convenient access to recorded evidence.
Key Features
- Available with 4, 8, or 16 analog video inputs.
- Connects to HDTVI, AHD, and CVBS analog cameras.
- Supports long-distance video transmission over UTP or coaxial cable.
- One-key H.264+ compression improves encoding efficiency by up to 50% and helps reduce storage costs.
- Real-time 1080p Lite recording is supported across all channels when 1080p Lite mode is enabled.
- HDMI/VGA output supports resolutions up to 1920 × 1080.
- One SATA interface supports an HDD with a capacity of up to 6 TB.
- Supports 4-, 8-, or 16-channel synchronous playback, depending on the DVR model.
- Smart Search helps users locate relevant recordings more efficiently.
- Video Quality Diagnostics helps identify video-quality problems.
- Supports Hik Cloud P2P and HiDDNS for easier network management.
- Supports administrator unlock-pattern login and GUID-based password recovery.
- Supports PTZ control through Omnicast VMS using the Genetec protocol.
- Configurable output-bandwidth limit.
Available Models
Video and Audio Input
DS-7108HGHI-F1: 8 channels
DS-7116HGHI-F1: 16 channels
Video and Audio Output
With 1080p Lite enabled: 1080p Lite/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) or 30 fps (NTSC).
DS-7108HGHI-F1: 8 channels
DS-7116HGHI-F1: 16 channels
Network Management
DS-7108HGHI-F1: 128
DS-7116HGHI-F1: 128
Storage
External Interfaces
General
DS-7108HGHI-F1: ≤ 12 W
DS-7116HGHI-F1: ≤ 20 W
Smart and Management Functions
Accessories Found in the Datasheet
Ideal Applications and Common Uses
- Small home-surveillance systems requiring up to four camera channels.
- Retail stores, offices, and small businesses requiring up to eight channels.
- Larger residential or commercial installations requiring up to sixteen channels.
- Upgrading an existing coaxial surveillance system while retaining compatible cabling.
- Mixed analog installations using compatible HDTVI, AHD, and CVBS cameras.
- Systems that require local Full HD monitoring through HDMI or VGA.
- Installations requiring remote network access and multi-channel playback.
- Applications where H.264+ compression can help reduce recording-storage requirements.
Downloads
Frequently Asked Questions
The DS-7104HGHI-F1 supports 4 analog video inputs, the DS-7108HGHI-F1 supports 8, and the DS-7116HGHI-F1 supports 16.
The series supports HDTVI, AHD, and conventional CVBS analog cameras. The cameras connect through BNC video inputs that also support coaxitron connections.
The DVR supports real-time 1080p Lite recording on all channels when 1080p Lite mode is enabled. The datasheet states that the resulting image effect is similar to 1080p.
Each model has one SATA interface and supports one hard drive with a capacity of up to 6 TB.
Yes. The series supports H.264+ and H.264 compression. Its one-key H.264+ function can improve encoding efficiency by up to 50% and help reduce video-storage costs.
Yes. The DS-7104HGHI-F1 supports 4-channel synchronous playback, the DS-7108HGHI-F1 supports 8-channel synchronous playback, and the DS-7116HGHI-F1 supports 16-channel synchronous playback.
The DVR provides HDMI and VGA output. Supported output resolutions are 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz, and 1024 × 768 at 60 Hz.
The series has one RCA audio input that also serves as the two-way audio input and one RCA audio output. It uses G.711u audio compression with a 64 Kbps audio bit rate.
The DVR includes one self-adaptive RJ45 10/100 Mbps Ethernet interface and supports TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS. Its output-bandwidth limit can also be configured.
Yes. Smart Search helps users locate recordings more efficiently, while Video Quality Diagnostics helps identify video-quality issues. The series also supports administrator unlock-pattern login and GUID-file password recovery.
